Installing Right Fuel Pump

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the new pump in the bracket on the tank floor and turn it approx. 90° to the right until it is seated securely.

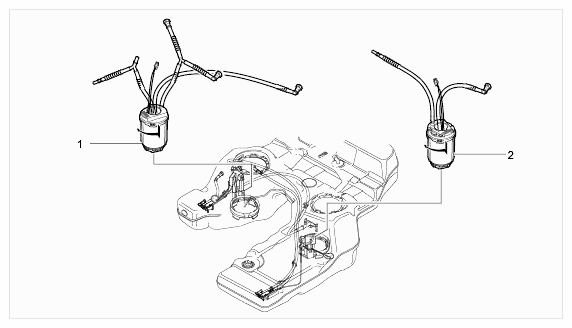

    Fig 1: Identifying Right And Left Fuel Pump
    G09409927Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Right fuel pump (arrow shows direction of rotation for fitting)
    2. Left fuel pump (arrow shows direction of rotation for fitting)
  2. Connect the fuel line from the right pump to the Y-piece.
  3. Connect the sucking jet pump connection. This must lock with an audible click.

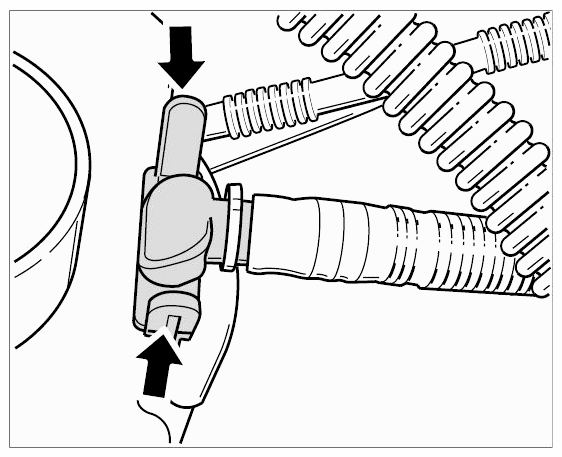

    Fig 2: Connecting Sucking Jet Pump Connection
    G09409928Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Replace the seal on the connection unit.

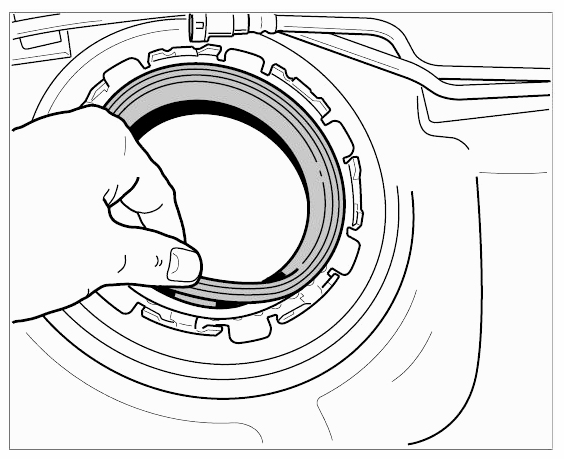

    Fig 3: Identifying Connection Unit Seals
    G09409929Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Connect connection unit. Connect the electric connectors for the tank gauge and fuel pump. Then push on the fuel lines. The connectors must engage audibly.

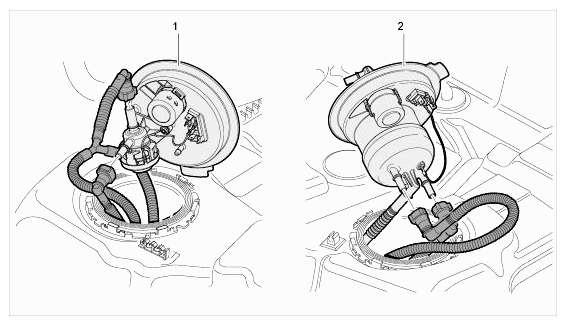

    Fig 4: Identifying Left And Right Connection Unit
    G09409930Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Right connection unit with pressure regulator
    2. Left connection unit with fuel filter
  6. Place the connection unit into the tank. When doing so, make sure that the plastic lug is pointing forward.
