Installing Left Fuel Pump

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Place the new pump in the bracket on the tank floor and turn it approx. 90° to the right until it is seated securely.

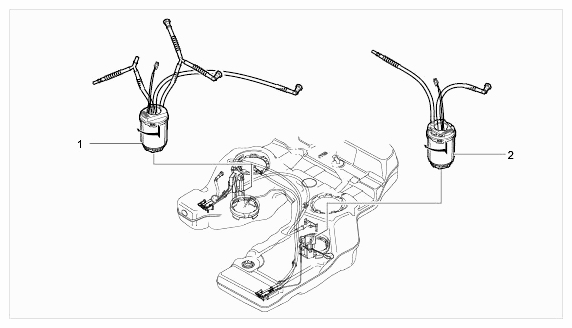

Fig 1: Identifying Right And Left Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Right fuel pump (arrow shows direction of rotation for fitting)
2. Left fuel pump (arrow shows direction of rotation for fitting)
Connect the fuel line from the pump to the Y-piece (right side of the tank).
Connect the sucking jet pump connection. This must lock with an audible click.

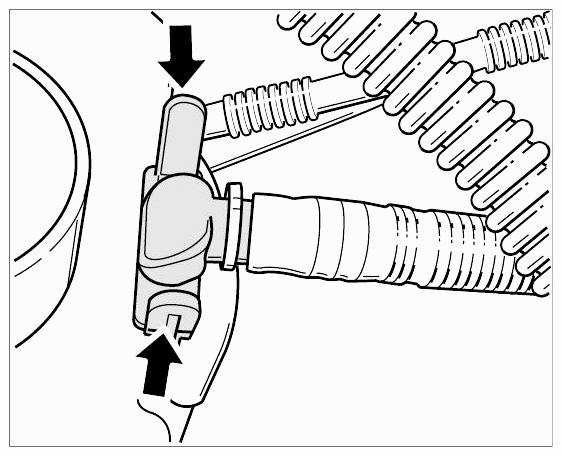

Fig 2: Connecting Sucking Jet Pump Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace both seals on the connection units.

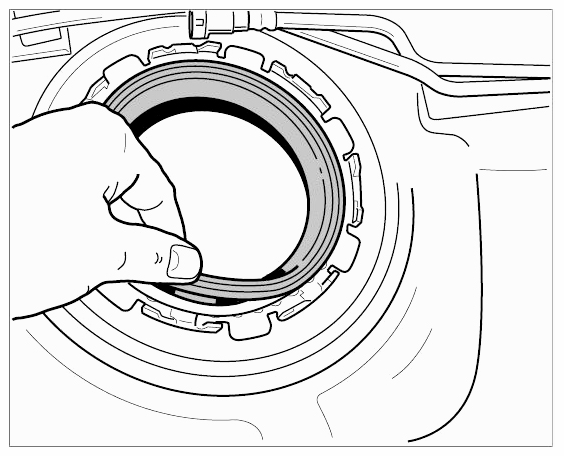

Fig 3: Identifying Connection Unit Seals
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the connection unit.

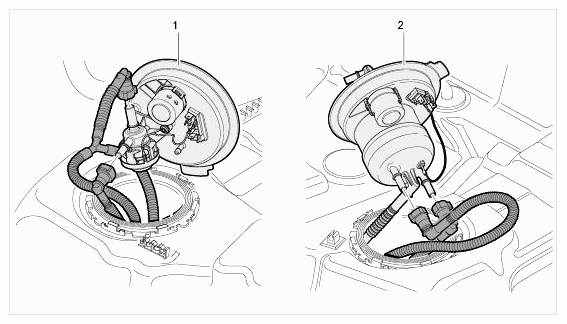

Fig 4: Identifying Left And Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Right connection unit with pressure regulator
2. Left connection unit with fuel filter
Fit the connection unit into the tank. When doing so, make sure that the plastic lug is pointing forward.
