Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapours.

→ Attach warning sign in a clearly visible position.

Remove electric adapter.
Fit relay for fuel pumps.
Assemble central electrics box.
Information

Place cloths underneath the line connection points to soak up fuel.
Remove fuel measuring tool.
1. 4.1. Disconnect measuring tool from output of the connection unit.

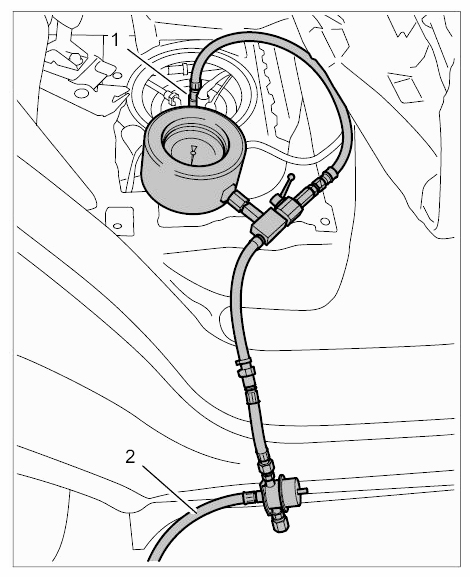

  Fig 1: Connecting Measuring Tool
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Disconnect all connection points.
3. 4.3. Remove measuring tool.
Establish all fuel connections in the vehicle.
1. 5.1. Connect plug connections -arrows- .

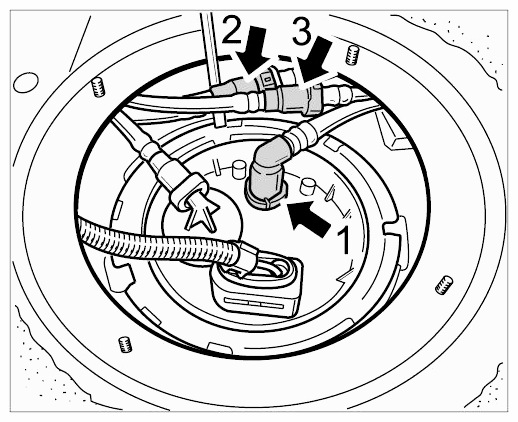

  Fig 2: Locating Fuel Supply And Connection Points At Right Connection Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Check that plug connections are seated correctly.
Use a cloth to absorb all remaining fuel.
Install rear seat. → Installing Rear Seat
1. 7.1. Position lid.
2. 7.2. Screw in and tighten the four screws.
3. 7.3. Secure carpeted floor.
Information

Always replace the fastening screws on the three-point seat belt. The micro-self-locking screws must not be treated (e.g. greased) or loosened and then screwed on again.
Secure reinforcement plate for right seat-belt buckle. → WM 691219 REMOVING AND INSTALLING REAR THREE-POINT BELT
Disconnect the charger.
Air the vehicle with the windows open.
