Assembling Electrical Measuring Adapter

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel pump relays for both fuel pumps from the central electrics box.

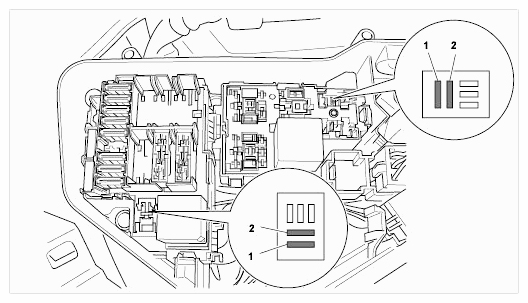

Fig 1: Identifying Fuel Pump Relay Slots
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The auxiliary lines -1- are shop-made from materials in stock. The cable shoe at one end of the auxiliary line matches the contacts on the fuel pump relay. At the other, it is designed to be connected to the adapter 9479 -2- .

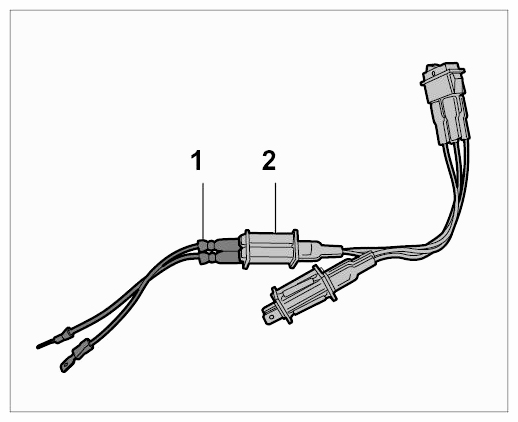

Fig 2: Identifying Auxiliary Cable To Adapter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make the auxiliary lines.
Information
- The test is performed for both fuel pumps one after the other. Only one fuel pump can be actuated through a relay slot at any given time. The order in which the pumps are tested is not important. Either the left or right fuel pump can be activated, depending on the slot. .
Select the fuel pump to activate.
Set adapter 9479 switch to position "0".
Insert auxiliary line contacts into the respective relay slot -1 and 2- .

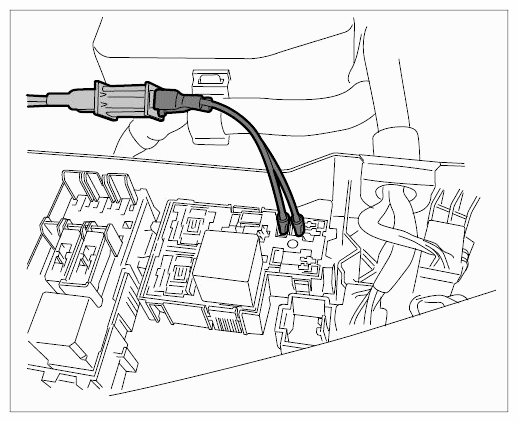

Fig 3: Identifying Adapter Inserted
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
