Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fold up the retaining brackets (left and right) for the seat-belt buckles. To do this, loosen the fastening screws and fold up the bracket with the seat-belt buckle. Do not use the same fastening screws again.
Tighten the mounting plates for the seat-belt buckles.
1. 2.1. Use three new fastening screws and tighten to the specified torque.
  → Tightening torque: 50 Nm (37 ftlb.)

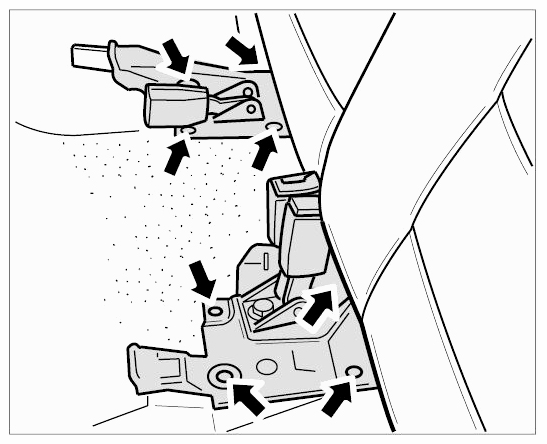

  Fig 1: Locating Seat-Belt Buckles Retaining Brackets Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold rear seat back.
Secure carbon canister with degassing tank and filler neck.
→ 202519 REMOVING AND INSTALLING CARBON CANISTER ON DFI ENGINES .

→ 201019 REMOVING AND INSTALLING FUEL TANK ON DFI ENGINES .
Close the filler flap.
Install rear right wheel housing liner.
→ WM 536919 REMOVING AND INSTALLING REAR WHEEL HOUSING LINER .
Fit right rear wheel.
→ Removing and installing wheel .

→ Tightening torque: 160 Nm (118 ftlb.)
Install the engine.
→ WM 100119 REMOVING AND INSTALLING 3.6-LITRE DFI ENGINE .

→ WM 100119 REMOVING AND INSTALLING V8 4.8-LITRE DFI ENGINE .
