Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine.
→ WM 100119 REMOVING AND INSTALLING 3.6-LITRE DFI ENGINE .

→ WM 100119 REMOVING AND INSTALLING V8 4.8-LITRE DFI ENGINE .
Remove right rear wheel.
→ WM 440519 REMOVING AND INSTALLING WHEEL (ALL MODELS) .
Remove rear right wheel housing liner.
→ WM 536919 REMOVING AND INSTALLING REAR WHEEL HOUSING LINER .
Detach carbon canister with degassing tank and filler neck.
→ 202519 REMOVING AND INSTALLING CARBON CANISTER ON DFI ENGINES .

→ 201019 REMOVING AND INSTALLING FUEL TANK ON DFI ENGINES .
Open the filler flap.
Fold rear seat forward.
Fold up the retaining brackets for the seat-belt buckles → .
1. 7.1. To do this, loosen the fastening screws and fold up the bracket with the seat-belt buckle. Fastening screws must be replaced.

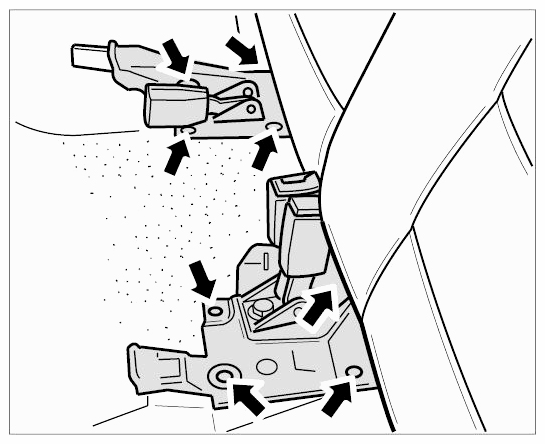

  Fig 1: Locating Seat-Belt Buckles Retaining Brackets Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
