Removing Tank Vent

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

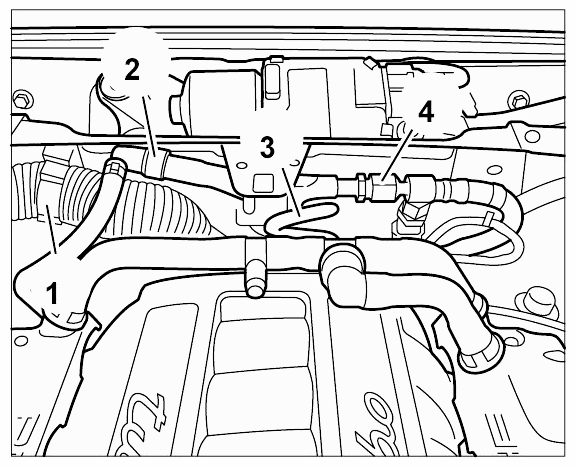

Disconnect fuel tank ventilation line -2- at the plenum panel bulkhead.

Fig 1: Identifying Plenum Panel Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

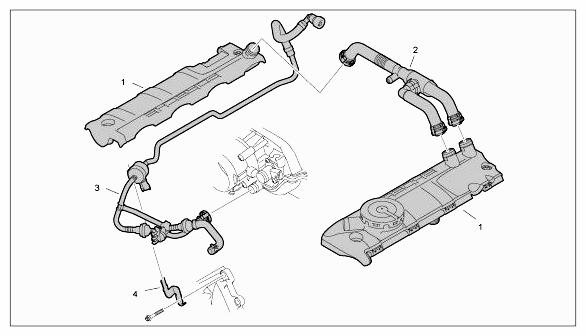

Fig 2: Identifying Oil Mist Separator For Positive Crankcase Ventilation Components (Turbo Engine)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Engine ventilation
2. Engine ventilation line
3. Tank ventilation
4. Holder

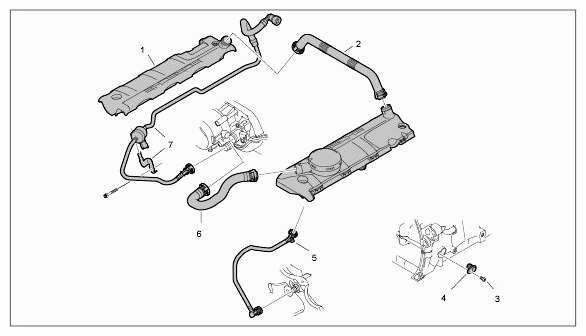

Fig 3: Identifying Oil Mist Separator For Positive Crankcase Ventilation Components (Naturally Aspirated Engine)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Engine ventilation
2. Engine ventilation line
3. Screw, M6 x 12
4. Lid with seal
5. Engine ventilation line
6. Line
7. Tank ventilation with holder

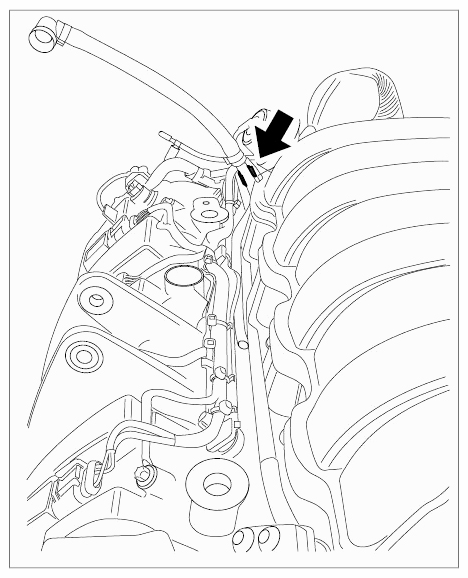

Unclip rear fuel tank ventilation line at the wire harness. -arrow-

Fig 4: Locating Fuel Tank Ventilation Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connections at the front and feed out the line.
