Installing Tank Vent

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Feed tank vent with line in past the intake-air distributor.

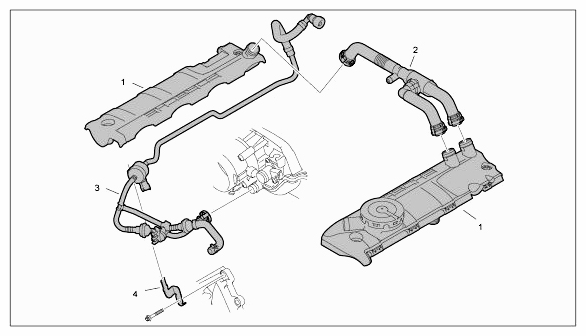

Fig 1: Identifying Engine Ventilation, Engine Ventilation Line, Tank Ventilation And Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Engine ventilation
2. Engine ventilation line
3. Tank ventilation
4. Holder

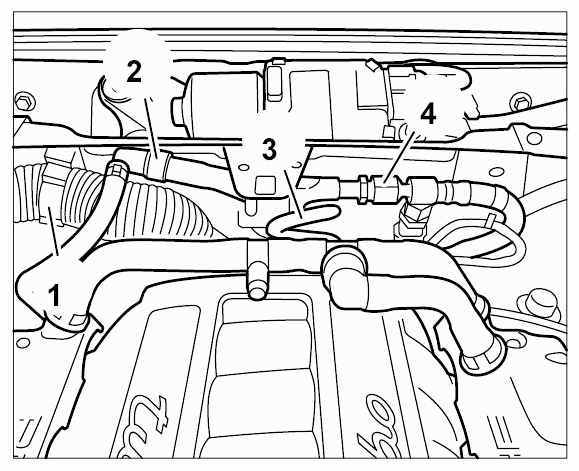

  Fig 2: Identifying Engine Ventilation, Ventilation Line, Lid With Seal, Tank Ventilation And Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Engine ventilation
2. Engine ventilation line
3. Screw, M6 x 12
4. Lid with seal
5. Engine ventilation line
6. Line
7. Tank ventilation with holder

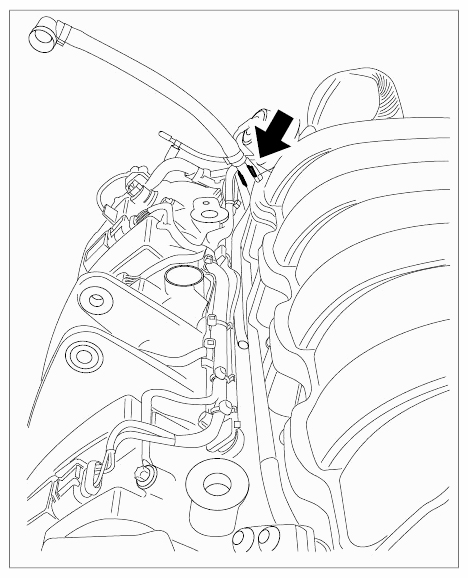

Clip in rear fuel tank ventilation line at the wire harness. -arrow-

Fig 3: Locating Fuel Tank Ventilation Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

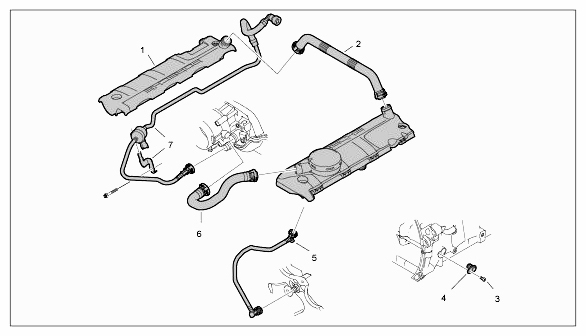

Insert tank ventilation line -2- at the plenum panel bulkhead.

Fig 4: Identifying Lines On Plenum Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
