Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

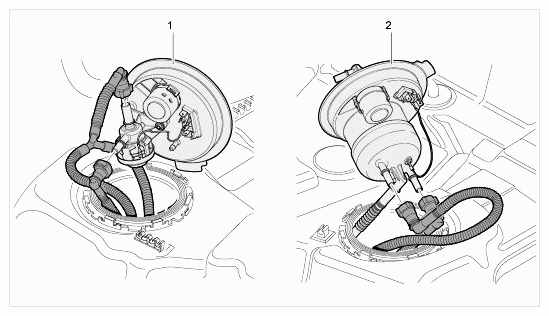

Fig 1: Identifying Fuel Tank Connection Units And Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting flange with pressure regulator
Connecting flange with fuel filter

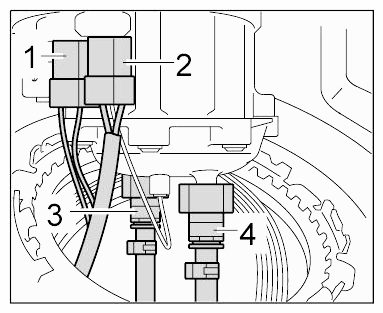

Disconnect electric connectors -1 and 2- . Then pull off the fuel lines -3 and 4- and remove the connecting flange.

Fig 2: Locating Connecting Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

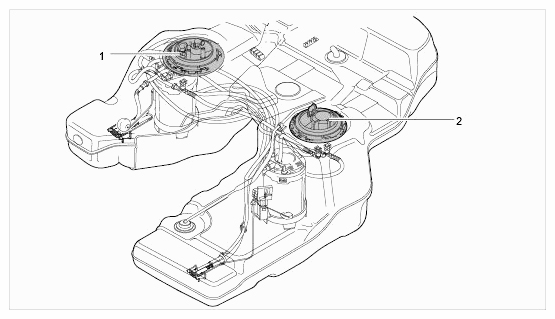

Fig 3: Identifying Left And Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Right connection unit with pressure regulator
2. Left connection unit with fuel filter
