Installing Fuel Tank

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

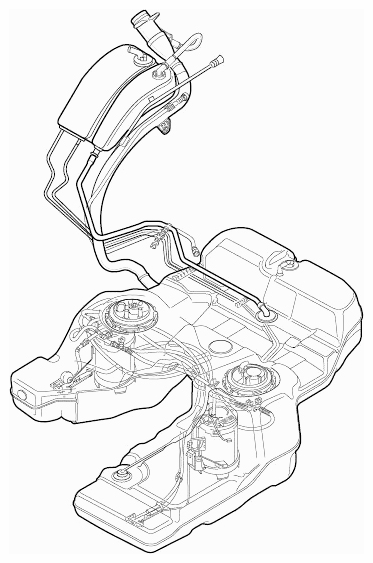

Fig 1: Overview Of Degassing Tank And Fuel Tank In Unit
G09409792Courtesy of PORSCHE CARS NORTH AMERICA, INC.

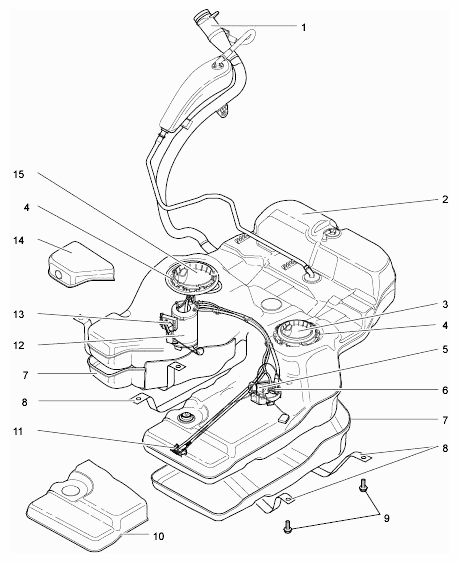

Fig 2: Overview Of Fuel Tank (Diesel - Single-Pump System)
G09409793Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel filler neck
  2. Fuel tank
  3. Left cap
  4. Locking ring
  5. Left fuel level sensor
  6. Sucking jet pump, left
  7. Protective cover
  8. Restraining strap
  9. Fastening screw
  10. Protective cover
  11. Left sucking jet pump (on tank floor)
  12. Fuel pump (delivery unit)
  13. Right fuel level sensor
  14. Protective cover
  15. Right cap

The following exploded drawing shows how the fuel tank is attached to the vehicle floor.

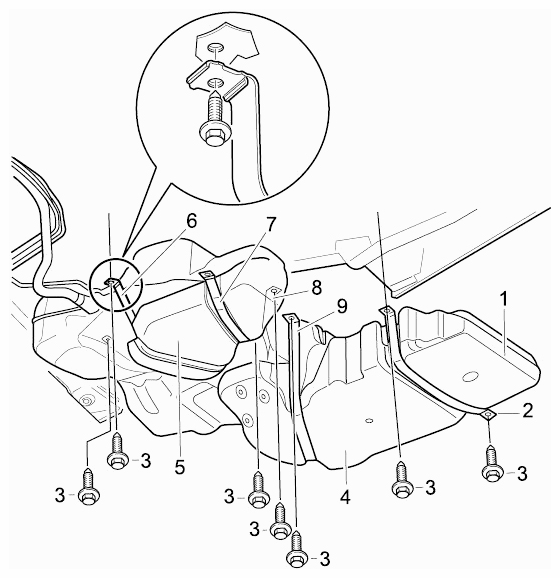

Fig 3: Identifying Fuel Tank And Mounting Bolts
G09409794Courtesy of PORSCHE CARS NORTH AMERICA, INC.
No. Designation Qty. Removal Installation
-1-  Fuel tank 1 Do not damage fuel tank and connected lines. Lines cannot be replaced individually. Do not damage fuel tank and connected lines. Lines cannot be replaced individually.
-2-  Restraining strap, front left 1 Before releasing the restraining straps, make sure that the tank cannot fall down. The direction of travel arrow must be pointing forward.
-3-  Fastening screw, M8 x 25 10
-4-  Plastic covers, left 2
-5-  Plastic cover, right 1
-6-  Restraining strap, rear right 1 Before releasing the restraining straps, make sure that the tank cannot fall down. The direction of travel arrow must be pointing forward.
-7-  Restraining strap, front right 1 Before releasing the restraining straps, make sure that the tank cannot fall down. The direction of travel arrow must be pointing forward.
-8-  Restraining strap, centre 1   The direction of travel arrow must be pointing forward.
-9-  Restraining strap, rear left 1 Before releasing the restraining straps, make sure that the tank cannot fall down. The direction of travel arrow must be pointing forward.

Information

  1. Raise the tank with a transmission jack. Make sure to secure the tank with a restraining strap to prevent it from falling.

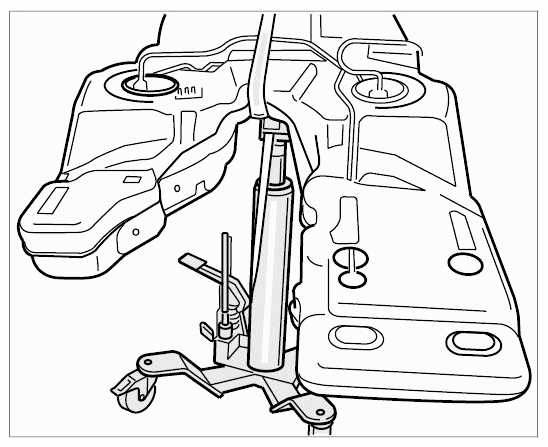

    Fig 4: Jacking Up Tank
    G09409795Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. With the help of a second worker, place the tank in installation position. A second person should carefully guide the degassing tank.

    Information

    • Note direction arrow stamped on the restraining straps and install these in the direction of travel.
  3. Attach the lower covers and fit the four restraining straps, which run at right angles to the direction of travel. Make sure that the arrow marking is pointing forward in the direction of travel. Tighten the fastening screws to the specified tightening torque. → Tightening torque: 23 Nm (17 ftlb.)
  4. Secure the fuel filler neck and degassing tank again with a piece of wire -arrow-  .

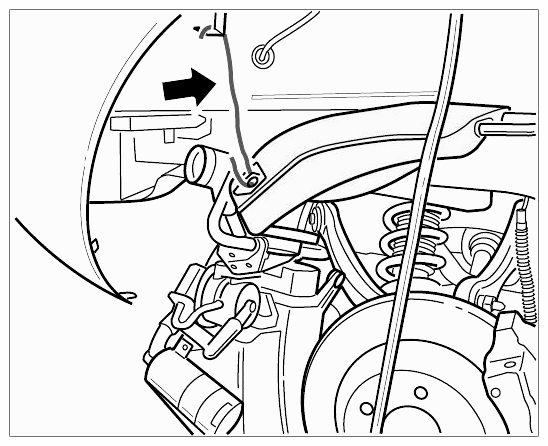

    Fig 5: Identifying Fuel Filler Neck And Degassing Tank
    G09409796Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Lower the transmission jack and fit the centre restraining strap. The arrow must be pointing forward. Tighten the fastening screws to the specified torque. → Tightening torque: 23 Nm (17 ftlb.)

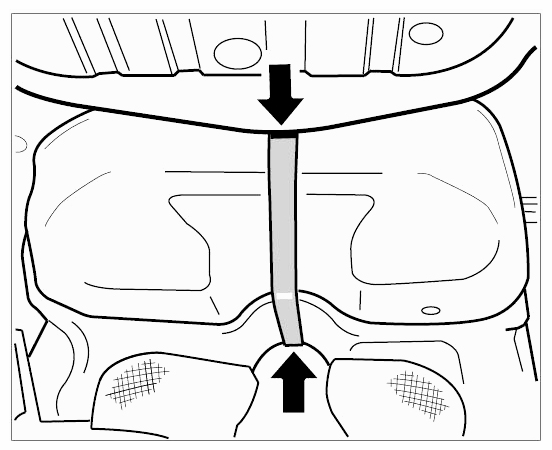

    Fig 6: Locating Centre Restraining Strap On Fuel Tank
    G09409797Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Fit the heat protection plate for the exhaust system. If the plate is cracked or damaged, it must be replaced.

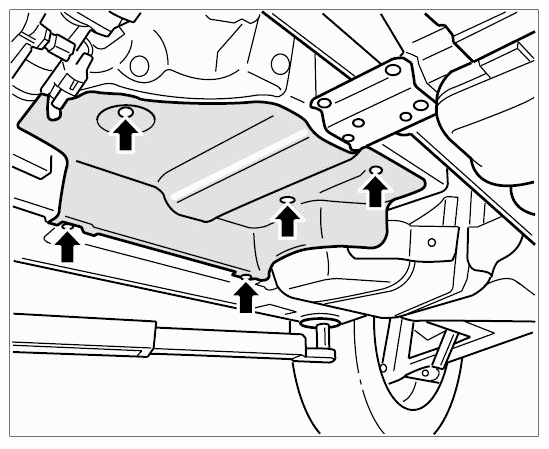

    Fig 7: Locating Heat Protection Plate Mounting Bolts
    G09409798Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Fit the underbody panel for the side members at the left and right. → WM 519319 REMOVING AND INSTALLING CENTRE COVER
  8. Replace the line bracket and fit it on the longitudinal member. Clip in lines.

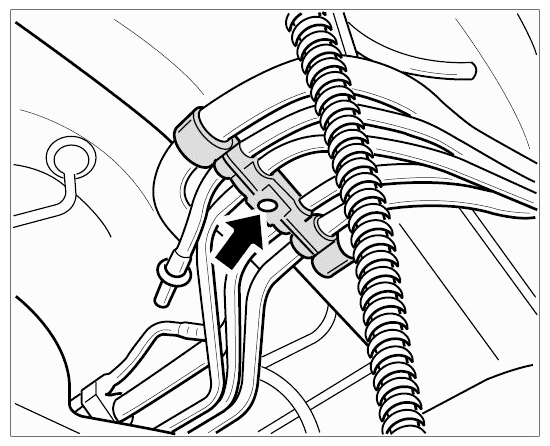

    Fig 8: Locating Line Bracket
    G09409799Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Then fit the stone guard on the right side → Fit nuts -arrows-  and tighten to the specified torque. → Tightening torque: 10 Nm (7.5 ftlb.)

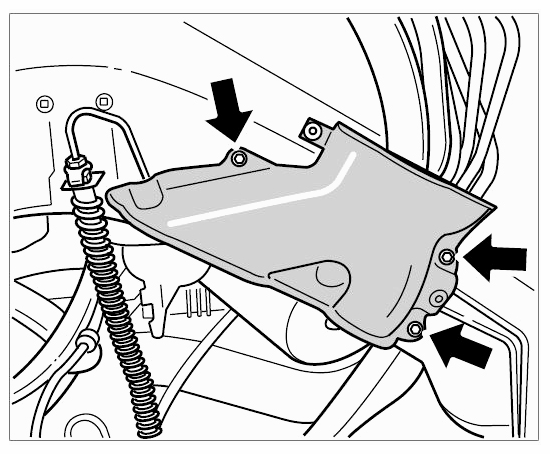

    Fig 9: Locating Stone Guard Mounting Bolts
    G09409800Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Fit all connections on the connection unit. .

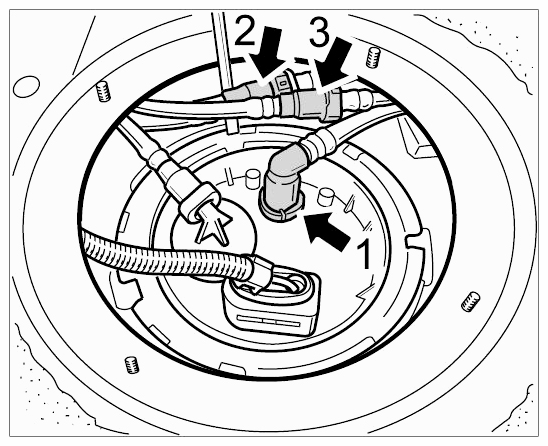

    Fig 10: Locating Connection Unit
    G09409801Courtesy of PORSCHE CARS NORTH AMERICA, INC.
