Installing Charge Air Cooler

Information

• Always replace all seals and sealing rings!

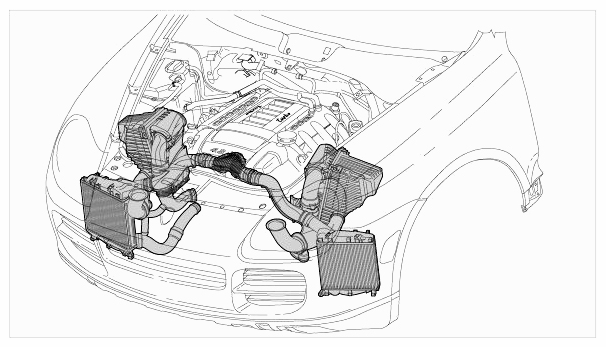

  Fig 1: Identifying Air Guide For V8 Turbo

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Secure the sleeves with a small amount of adhesive or grease before fitting them on the charge air cooler.

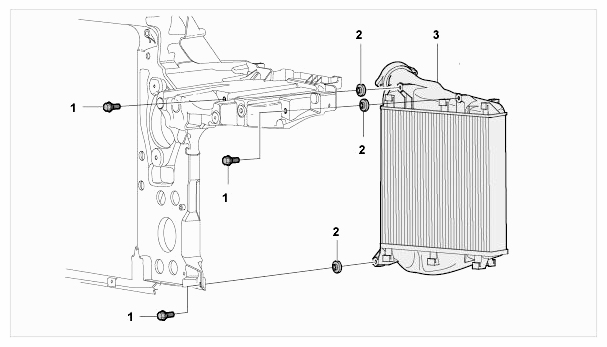

   Fig 2: Identifying Charge Air Cooler On Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Screws
   2. Sleeves
   3. Charge air cooler
2. Move the charge air cooler sideways into installation position and fit the three fastening screws by hand.

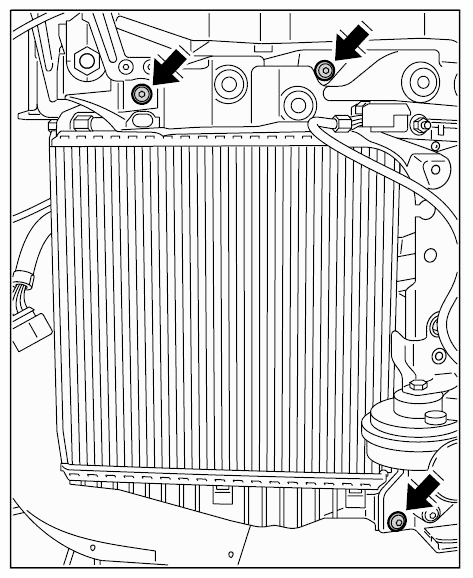

   Fig 3: Locating Charge Air Cooler Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Press the air line into the air cleaner housing. This must lock with an audible click.

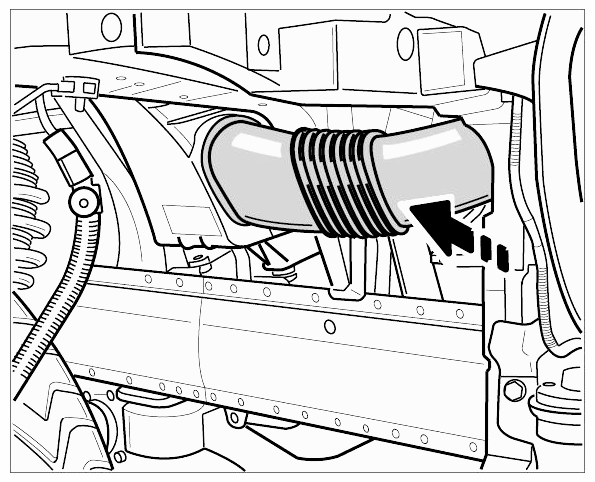

   Fig 4: Pressing Air Line Into Air Cleaner Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Slide the pressure pipe with a new sealing ring into the connection piece on the charge air cooler and fit two hexagon socket head bolts on the air pipe. Tighten the screws. Tightening torque: 10 Nm (7.5 ft lbs.)

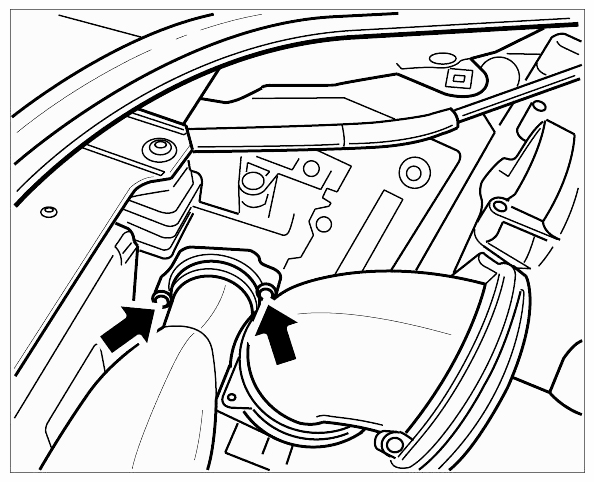

   Fig 5: Locating Pressure Pipe Mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Tighten the three fastening screws on the charge air cooler. → Tightening torque: 8 Nm (6 ft lbs.)
6. Fit the pressure pipes. The wire clip must lock with an audible click -1-  .

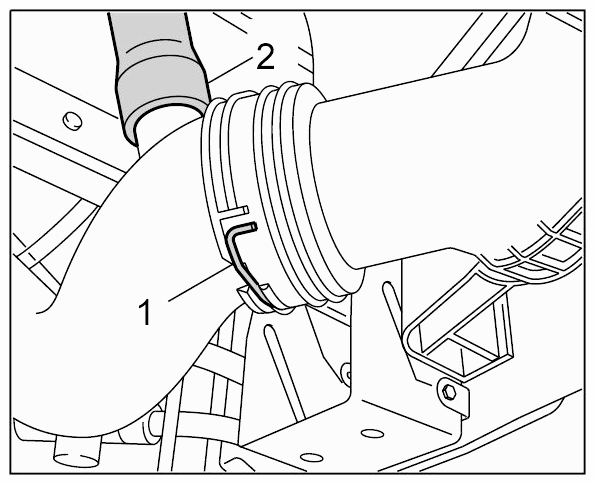

   Fig 6: Identifying Lower Pressure Pipe

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Slide in the air guides.
8. Place airbag sensor cable into the sheet metal clip.
