Removing Intake Manifold

Information

If you find leaks at the connection point between the intake manifold and turbocharger (drops of engine oil), the intake manifold and screw-type clamp must be replaced.

1. Remove the boost pressure pipe -1-  . To do this, loosen both Henn couplings -2 and 4-  . Once you have removed the boost pressure pipe, move the wire clip for the Henn coupling back into position. Loosen the spring band clamp -3-  .

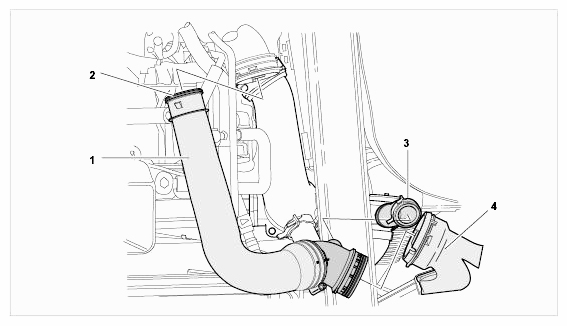

   Fig 1: Identifying Bottom Right Pressure Pipe To Charge Air Cooler Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen the intake manifold clamp at the turbocharger -2-  . Screw on a screw-type clamp. Use a side cutters or a suitable pliers to loosen a clamped one-way clamp (hose clamp). To do this, snip open the one-way clamp. The one-way clamp must not be reused.

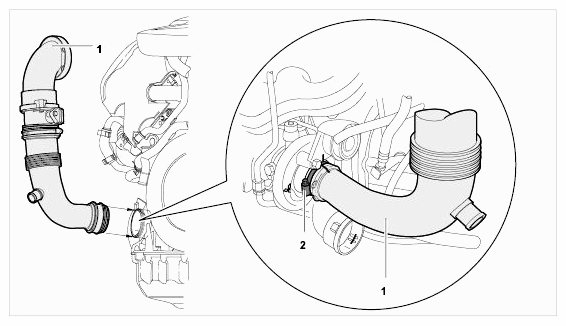

   Fig 2: Identifying Intake Manifold On Turbocharger

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Pull the intake manifold -1-  off the turbocharger.
4. Disconnect the spring band clamp -2-  from the intake manifold -1-  and slide it onto the hose -3-  for the ambient air valve. Loosen the spring band clamp using universal assembly pliers Nr.72-3  if necessary.

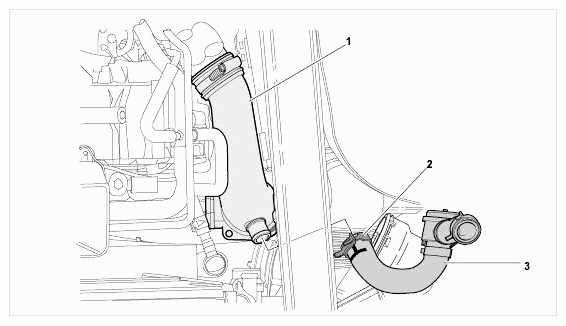

   Fig 3: Identifying Right Ambient Air Valve (Above Pressure Pipe)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove intake manifold.
6. If there is dirt or dust under the intake manifold, clean the affected components.
