Checking clutch for wear

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Measure clutch wear at one of the three clutch adjusters. To do this, measure using material 00000 between adjuster and clutch pressure plate -arrow, inset- .

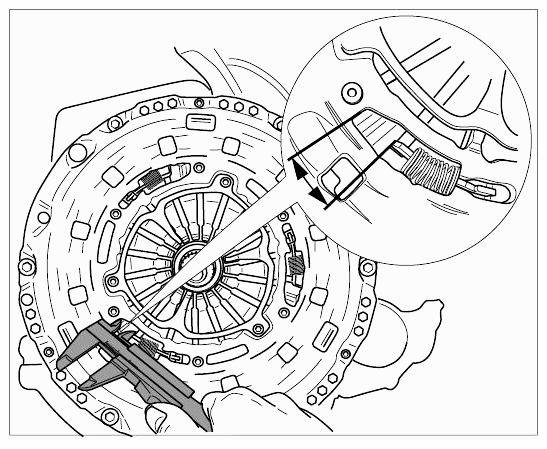

Fig 1: Measuring Clutch Wear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Measurement when new: ~ 16 mm.
- Replace the clutch if the measured value is ≤ 8 mm.
Clutch is OK:
Install transmission. → Installing transmission
Clutch is defective:
Replace clutch. → 305019 REMOVING AND INSTALLING CLUTCH
