Removing Clutch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Mark position of clutch adjuster on the clutch pressure plate using a colored pen -arrow- .

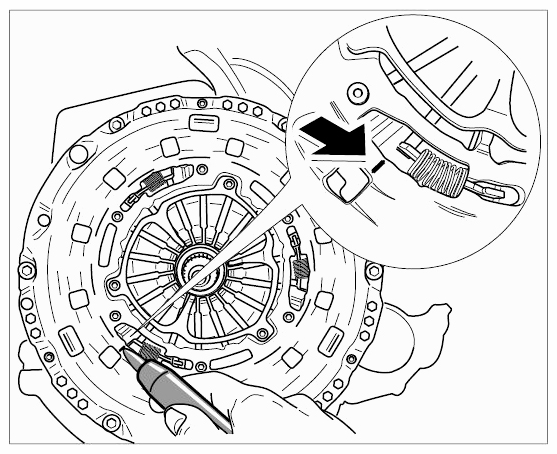

Fig 1: Marking On Clutch Adjuster
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen and tighten screws on the component according to specifications.
Unscrew the fastening screws on the clutch in the specified order -1 to 6- in several stages. Loosen each screw by half a turn at a time.

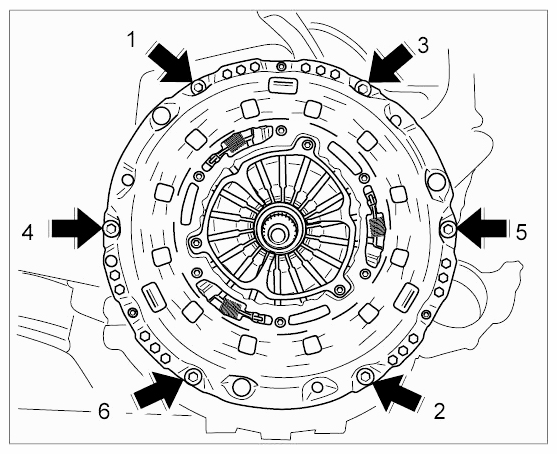

Fig 2: Clutch Fastening Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove clutch.
