Installing a new clutch

→ Secure components to prevent them from falling down.

Information

Do not remove the locking hook on the new clutch set too soon. First secure the clutch pressure plate and then remove the locking hook.

Information

When installing the clutch plate, observe the correct installation position. Please note marking -arrow inset-  on clutch plate.

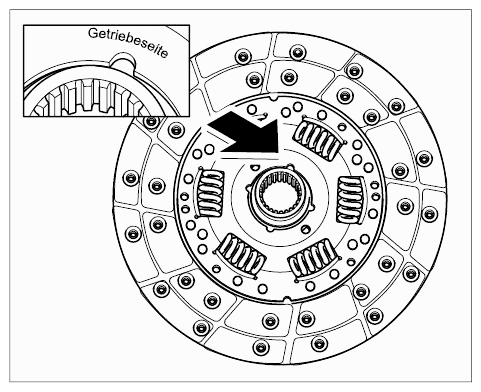

Fig 1: Locating Marking On Clutch Plate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The clutch pressure plate must be positioned on the three dowel pins → Fitting clutch plate of the double-mass flywheel.

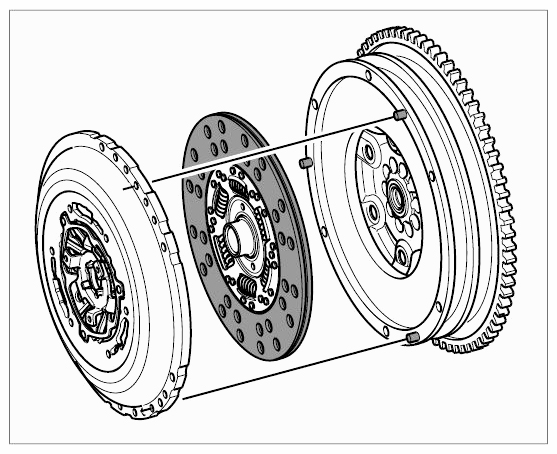

  Fig 2: Identifying Clutch Plate

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position new clutch set on engine using special tool centering mandrel 3434 -arrow-  .

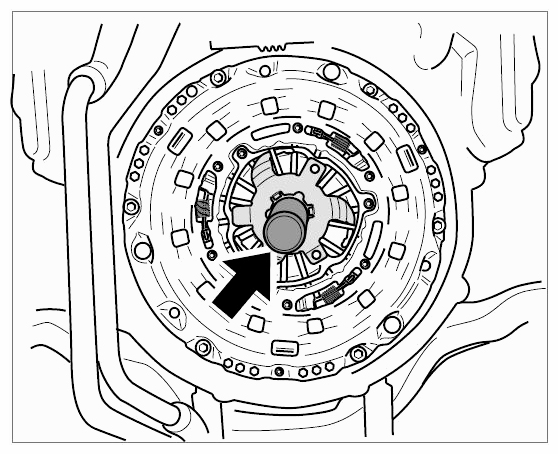

   Fig 3: Centering Coupling Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Replace clutch fastening screws.
2. Screw in new fastening screws on the clutch in the specified order -1 to 6-  and in several steps. Tighten each screw by half a turn at a time.

   Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
   Clutch pressure plate	to dual-mass flywheel	Initial tightening	20 Nm (15 ftlb.)
   Clutch pressure plate	to dual-mass flywheel	Final tightening	90°

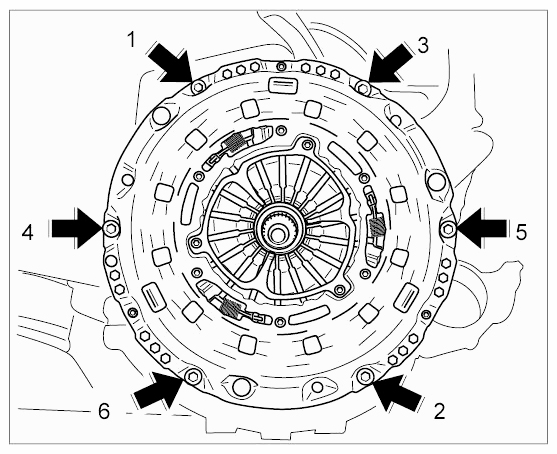

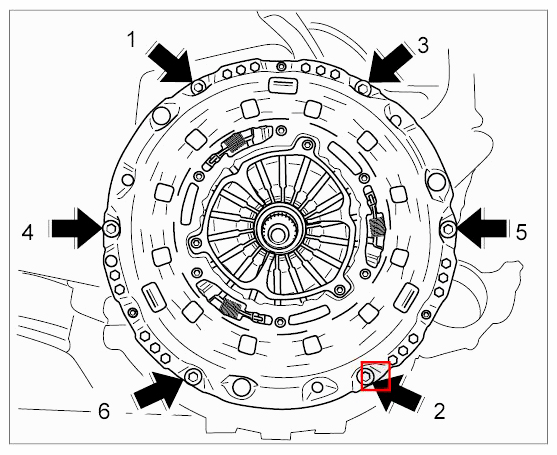

   Fig 4: Locating Clutch Fastening Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   WARNING: Danger of objects or loads falling down

   • Risk of squashing or crushing

   → Secure components to prevent them from falling down.

   Information

   Do not remove the locking hook on the new clutch set too soon. First secure the clutch pressure plate and then remove the locking hook.

3. Unscrew locking hook with special tool 2-hole nut turner 3212  in an anti-clockwise direction -arrow-  and remove it.

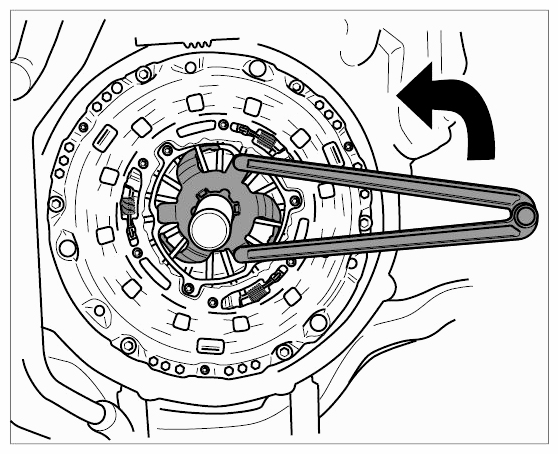

   Fig 5: Removing Locking Hooks

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove special tool centering mandrel 3434  .
