Removing Clutch Slave Cylinder

Fig 1: Identifying Clutch Slave Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

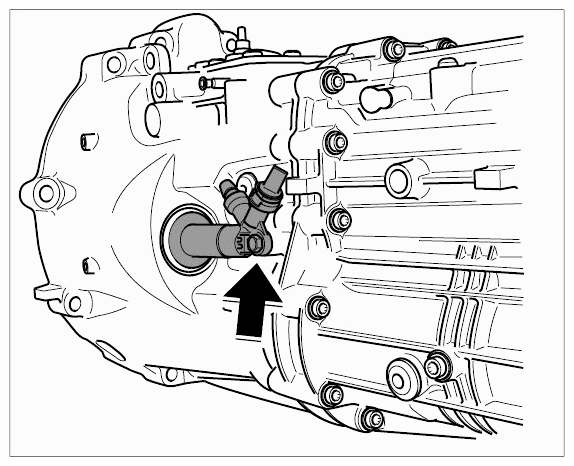

The clutch slave cylinder -arrow-  is located to the left of the transmission, at the center section of the clutch bellhousing (shown here on removed transmission).

Fig 2: Locating Clutch Slave Cylinder On Transmission

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Once the lead is separated from the clutch slave cylinder, the clutch pedal must not be pressed until reinstallation is complete.
• During removal, do not bend the clutch slave cylinder more than 3° from the installation position. Greater deflections of the pushrod can damage the clutch slave cylinder and cause brake fluid to run into the bellows.

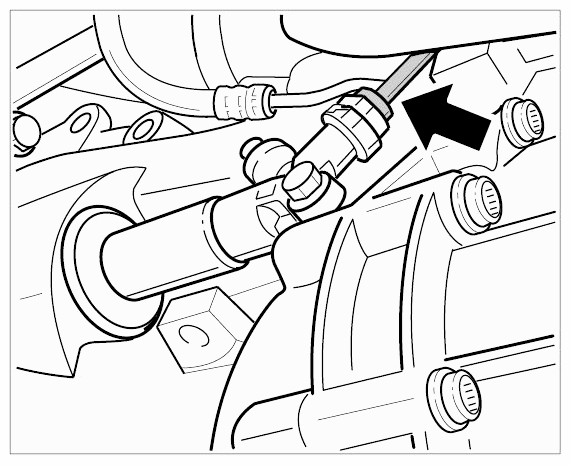

1. Unclip the line -arrow-  on the clutch slave cylinder (remove retaining spring) and seal using a suitable plug. Pay attention to the seal on the line. This can remain stuck in the clutch slave cylinder. Carefully remove the seal and replace with a new one, if necessary.
   Fig 3: Locating Clutch Slave Cylinder Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

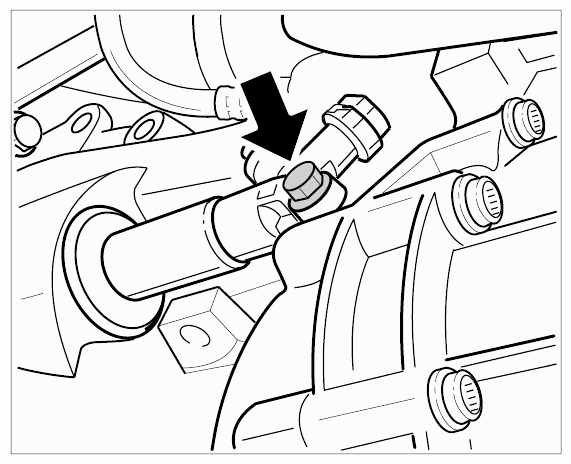

2. Remove the fastening screw -arrow-  on the clutch slave cylinder.
   Fig 4: Locating Screw On Clutch Slave Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

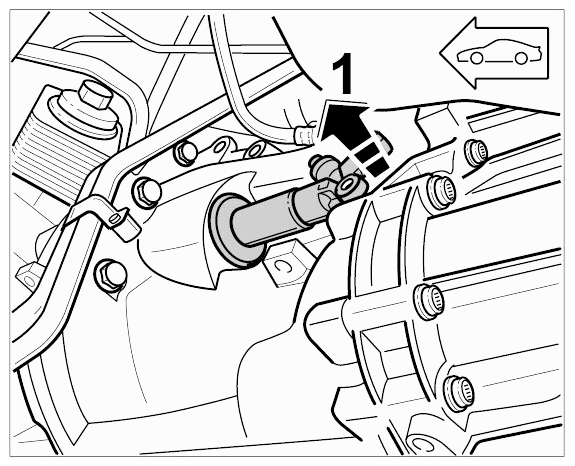

3. Press the clutch slave cylinder carefully outwards -arrow 1-  . During removal, do not bend the clutch slave cylinder more than 3° from the installation position.
   Fig 5: Pressing Clutch Slave Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

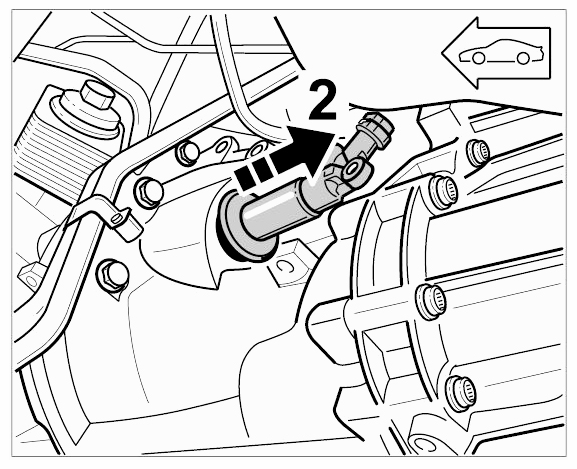

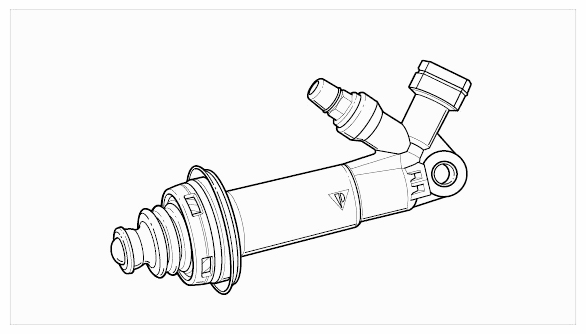

4. Remove the clutch slave cylinder to the rear -arrow 2-  without tilting it. Wipe off any emerging brake fluid with a lint-free cloth.
