Installing Clutch Slave Cylinder

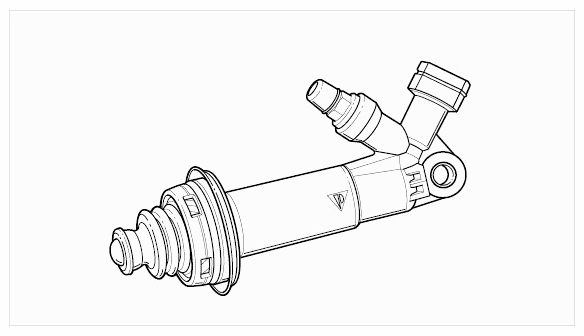

Fig 1: Identifying Clutch Slave Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Drain the clutch slave cylinder fully before installation. Check the bellows for signs of fluid and clean with a lint-free cloth if necessary.
• Check the seal of the clutch slave cylinder. This may have remained in the clutch slave cylinder when removed.
• During installation, do not bend the pushrod of the clutch slave cylinder more than 3° from the installation position. Greater deflections of the pushrod can damage the clutch slave cylinder.
• Make sure the clutch slave cylinder is positioned correctly during installation.
• Check that the pushrod of the clutch slave cylinder is definitely centered in the release lever.
• Ensure that the cap is seated correctly on the pushrod.

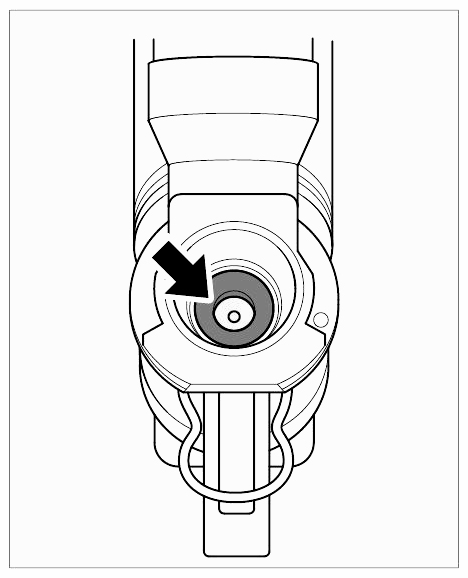

• A turquoise-colored plastic trim with a bore of approx. 1.5 mm must be visible in the line connection on the slave cylinder -arrow-  . Check that this is seated correctly and is not damaged.
  Fig 2: Locating Plastic Trim On Clutch Slave Cylinder

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

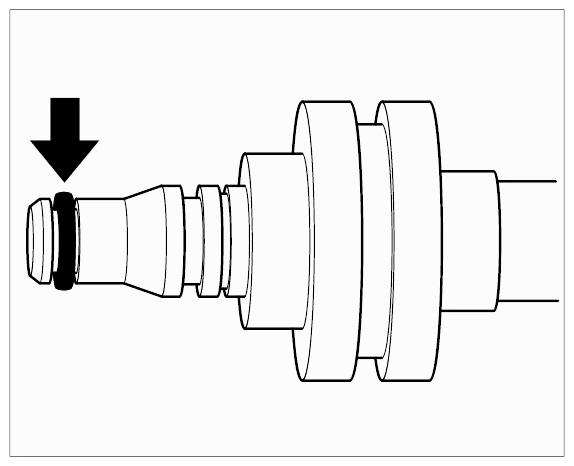

• A rubber seal (not to be confused with the seal over the plastic trim!) must be fitted on the push-on connector on the clutch line -arrow-  . Check that this seal is seated correctly and is not damaged.
  Fig 3: Locating Rubber Seal On Clutch Line

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove the seal from the clutch slave cylinder and fit it in the correct position on the line. Use a new seal, if necessary.
2. Insert the clutch slave cylinder carefully (do not tilt) and mount with the fastening screw. Tightening torque: 23 ± 2 Nm (17 ± 1.5 ft lbs..)

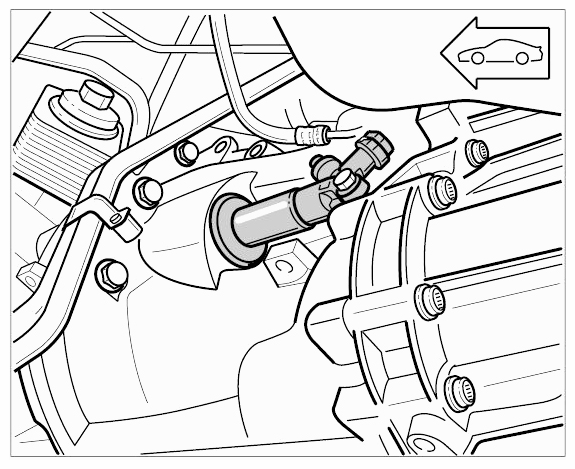

   Fig 4: Locating Clutch Slave Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove the plug from the line and clip the line into the clutch slave cylinder. Ensure the retaining spring is seated correctly.
4. Bleed the clutch system → 300107 BLEEDING THE CLUTCH SYSTEM .
