Preliminary Work
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
The clutch master cylinder is installed under the brake booster, accessible from the plenum panel in the engine compartment.
- Disconnect the battery → Connecting And Disconnecting Battery .
- Open bonnet and position it with the bonnet stay 9704 → WM 664419 REMOVING AND INSTALLING COWL PANEL COVER .
- Remove engine design cover → 700219 REMOVING AND INSTALLING FRONT COVER (ENGINE COMPARTMENT) .
- Remove cowl panel cover → WM 664419 REMOVING AND INSTALLING COWL PANEL COVER .
- Remove left plenum panel partition.

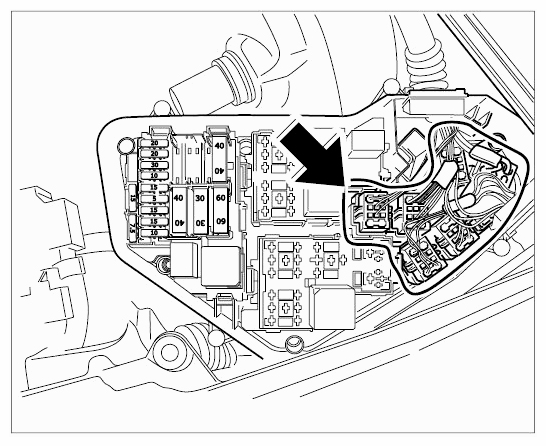

- Partly remove fuse carrier, including six connectors, on the left in the plenum panel and lay to one side -arrow- .
