General Warning Notes: Removing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Overview of pedals

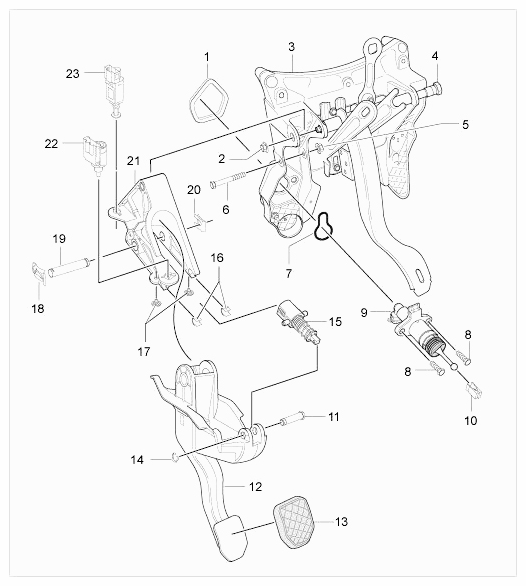

Fig 1: Overview Of Pedals Excluding Stop Light Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- - Seal
-2- - Hexagon nut
-3- - Mounting saddle
-4- - Pin
-5- - Hexagon nut
-6- - Hexagon-head bolt
-7- - Seal
-8- - Fixing clip/screw
-9- - Master cylinder
-10- - Mounting
-11- - Bolt
-12- - Clutch pedal
-13- - Cap
-14- - Lock (mechanical)
-15- - Clutch power spring
-16- - Bearing shell
-17- - Rubber stop
-18- - Lock (mechanical)
-19- - Pin
-20- - Lock (mechanical)
-21- - Mounting saddle for clutch pedal
-22- - Switch (clutch pedal switch)
-23- - Switch (interlock)

Installation position of clutch master cylinder

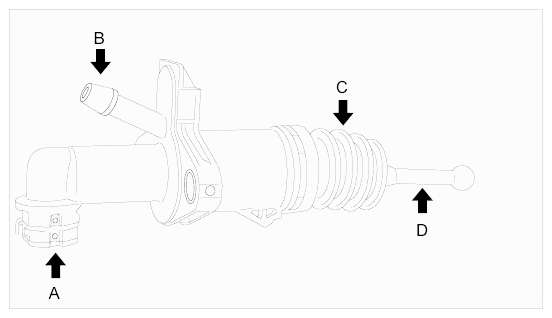

Fig 2: Identifying Clutch Master Cylinder Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-A- - Pressure line connection to clutch slave cylinder
-B- - Supply
-C- - Dust boot
-D- - Pushrod

Remove brake fluid by suction below MIN mark in reservoir.
Information

Brake fluid is hygroscopic! Seal all lines immediately with suitable plugs.

Brake fluid will flow from the lines. Protect body in the area under the clutch master cylinder (e.g. with a cleaning cloth).
Loosen pressure line from clutch master cylinder to slave cylinder -A- . To do this, remove safety clip to the stop using a screwdriver -direction of arrow- .

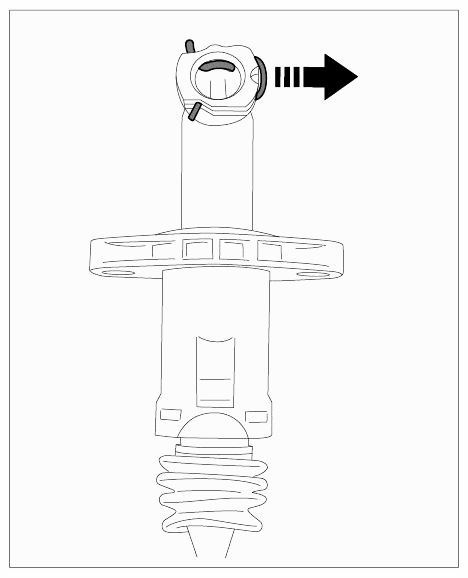

Fig 3: Removing Safety Clip For Pressure Line Connection From Clutch Master Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open safety clip. The pressure line can now be pulled off -arrow- .

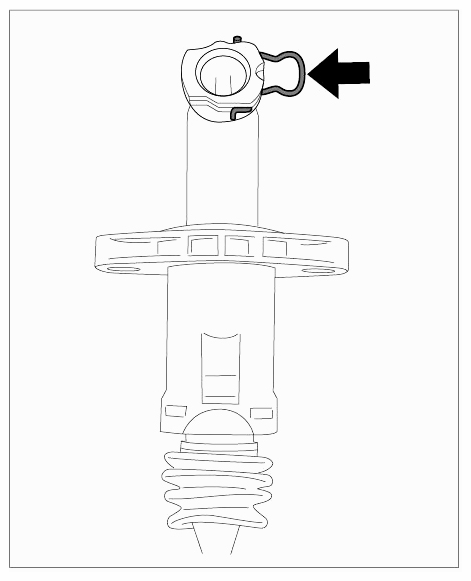

Fig 4: Opening Safety Clip For Pressure Line Connection Of Clutch Master Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lines on brake fluid reservoir and clutch master cylinder -B- (pull strongly!).
Remove clutch pedal → 300519 REMOVING AND INSTALLING CLUTCH PEDAL . To do this, detach pushrod of master cylinder from pedal. Insert pliers T10005 in the cut-outs on clutch pedal. Remove clutch pedal -12- .

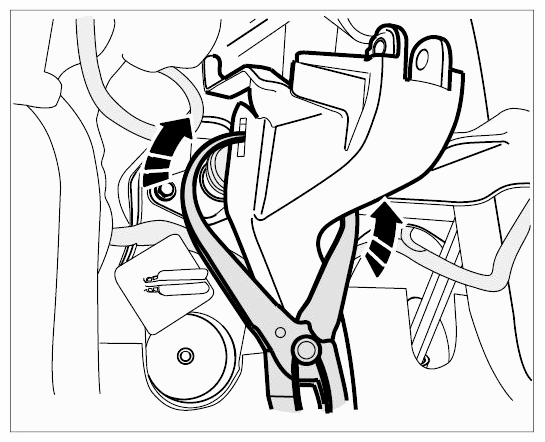

Fig 5: Disengaging Clutch Pedal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fixing clips on clutch master cylinder. Carefully remove clutch master cylinder with a cleaning cloth (soiling of passenger compartment with brake fluid!).
