General Warning Notes: Installing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Use a new line from the brake fluid reservoir to the clutch slave cylinder.

If the switches -22 - 23- have been removed from the mounting saddle of the clutch pedal -21- they must be replaced and their operation checked.

Replace all seals and sealing rings.

Remove plugs from the lines.

Overview of pedals

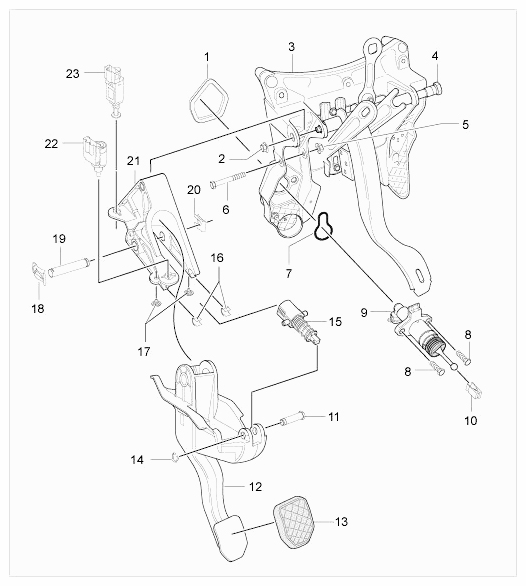

Fig 1: Overview Of Pedals Excluding Stop Light Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Seal
2 - Hexagon nut
3 - Mounting saddle
4 - Pin
5 - Hexagon nut
6 - Hexagon-head bolt
7 - Seal
8 - Fixing clip/screw
9 - Master cylinder
10 - Mounting
11 - Bolt
12 - Clutch pedal
13 - Cap
14 - Lock (mechanical)
15 - Clutch power spring
16 - Bearing shell
17 - Rubber stop
18 - Lock (mechanical)
19 - Pin
20 - Lock (mechanical)
21 - Mounting saddle for clutch pedal
22 - Switch (clutch pedal switch)
23 - Switch (interlock)

Fit master cylinder with fixing clip.
Fit clutch pedal → 300519 REMOVING AND INSTALLING CLUTCH PEDAL .
Fit pressure line to clutch master cylinder. Engage safety clip -direction of arrow- .

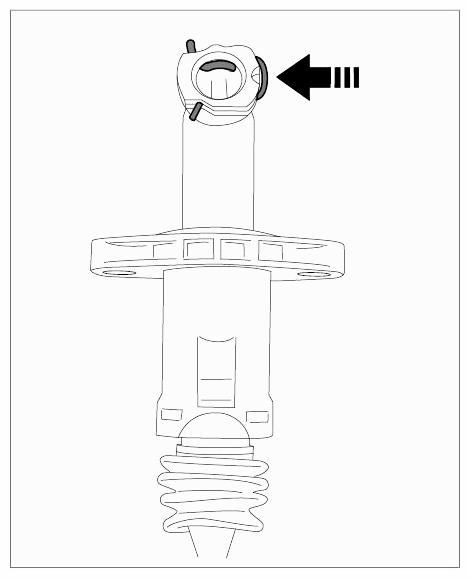

Fig 2: Locating Safety Clip For Pressure Line Connection From Clutch Master Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect line between brake fluid reservoir and clutch master cylinder (top and bottom).
Fill brake fluid reservoir with brake fluid. The brake fluid level must not exceed the MAX mark.
