Installing Central Electrical System Power Distributor

Information

• Always use new self-locking nuts to fasten the lines and retainers.

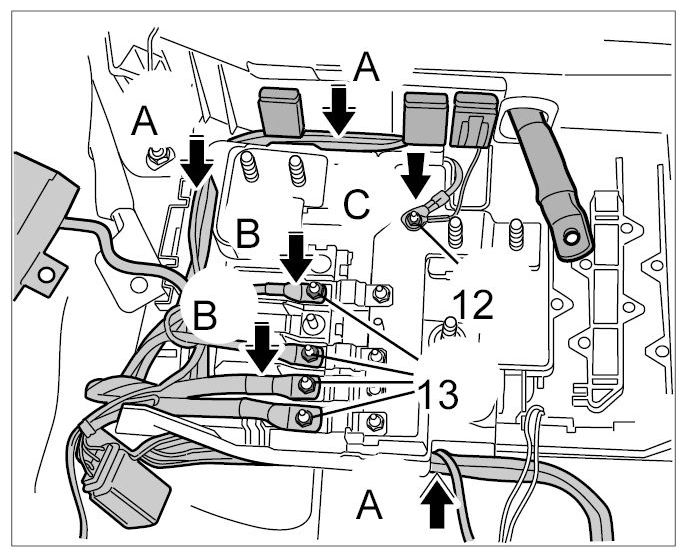

1. Place wire harness in the installation position -arrows A-  .
   Fig 1: Placing Wire Harness In Installation Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Place lines on the threaded bolts -arrows B-  and tighten using new fastening nuts -13-  → Tightening torque: 4.5 Nm.
3. Place line on threaded bolt -arrow C-  and tighten using a new fastening nut -12-  → Tightening torque: 4.5 Nm.

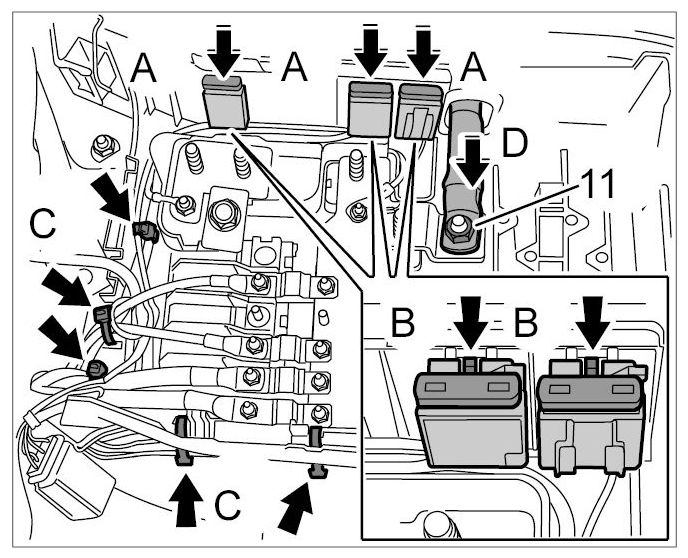

4. Insert fuse carriers -arrows A-  until locking tabs -B-  are felt to engage.
   Fig 2: Inserting Fuse Carriers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fasten line with new tie-wraps -C-  .
6. Place line on threaded bolt -arrow D-  and tighten using a new fastening nut -11-  → Tightening torque: 15 Nm  .

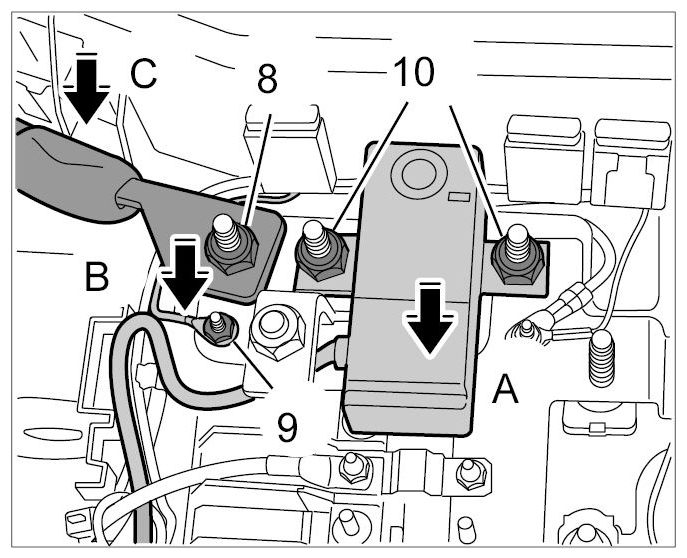

7. Place Tyco switch on threaded bolt -arrow A-  and tighten using new fastening nuts -10-  → Tightening torque: 15 Nm.
   Fig 3: Placing Tyco Switch On Threaded Bolt

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Place line on threaded bolt -arrow B-  and tighten with fastening nut -9-  → Tightening torque: 4.5 Nm.
9. Place line on threaded bolt -arrow C-  and tighten with the fastening nut -8-  → Tightening torque: 16 Nm.

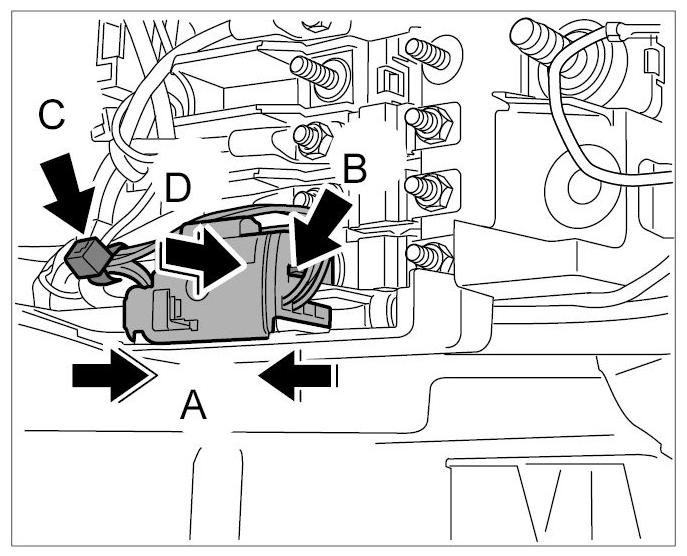

10. Push together plug connection -arrows A-  until locking tab -B-  is felt to engage.
    Fig 4: Pushing Plug Connection

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Tie the lines together with a new tie-wrap -C-  and place plug connection in installation position -arrow D-  .

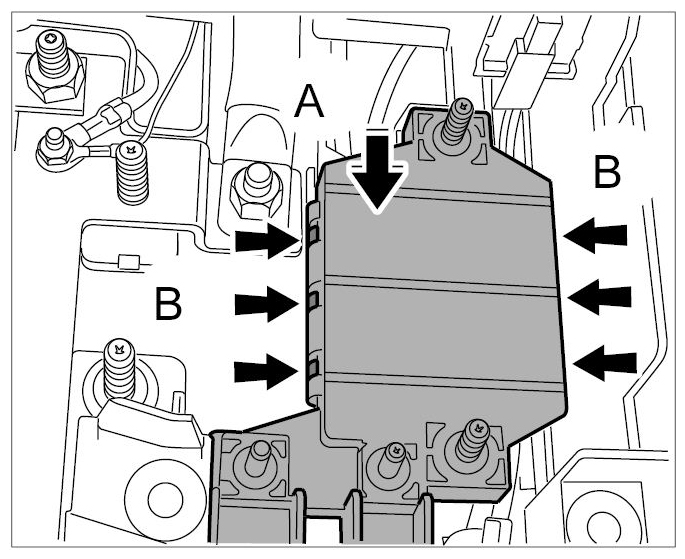

12. Press relay carrier in -arrow A-  until locking tabs -B-  are felt to engage.

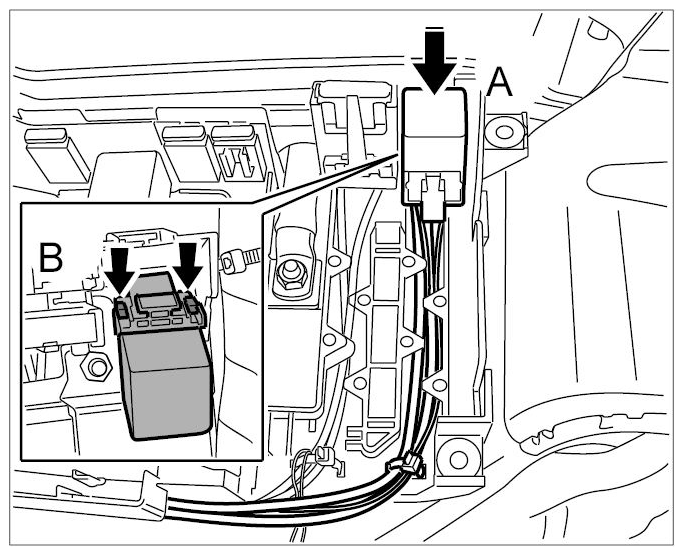

    Fig 5: Pressing Relay Carrier

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Insert fuse carrier -arrow A-  until locking tabs -B-  are felt to engage.

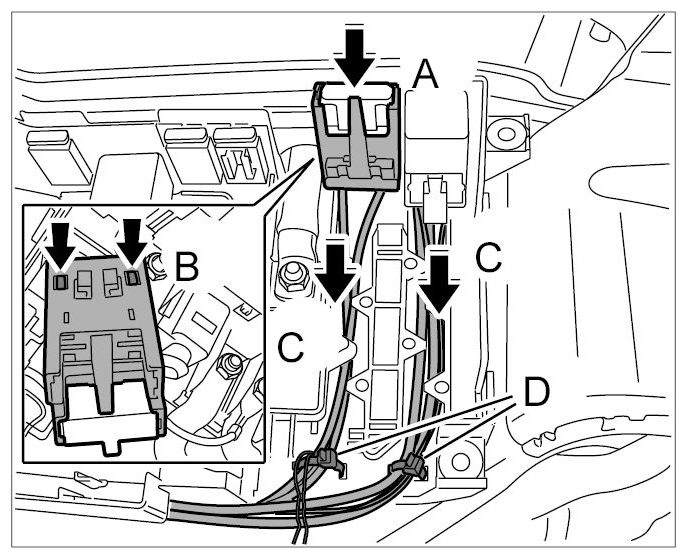

    Fig 6: Inserting Fuse Carrier

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Place lines in installation position -arrows C-  and fasten using new tie-wraps -D-  .
15. Place relay carrier in installation position and press in -arrow A-  until locking tabs -B-  are felt to engage.
    Fig 7: Placing Relay Carrier In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

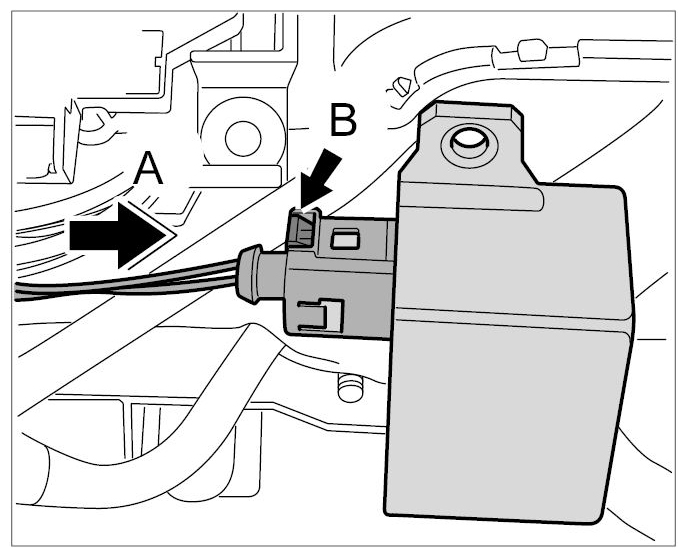

16. Push connector onto charge relay -arrow A-  until locking tab -B-  is felt to engage.
    Fig 8: Pushing Connector Onto Charge Relay

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

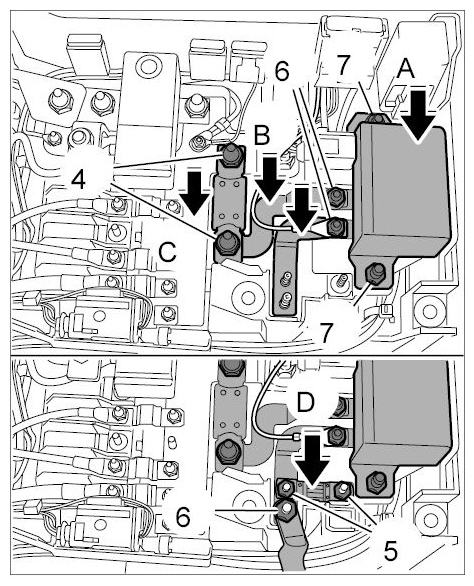

17. Place charge relay on threaded bolts -arrow A-  and tighten using new fastening nuts -7-  → Tightening torque: 4.5 Nm.
    Fig 9: Placing Charge Relay On Threaded Bolts

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
18. Place contact bridges and line on threaded bolts -arrows B-  and tighten using new fastening nuts -6-  → Tightening torque: 8 Nm.
19. Place fuse element on threaded bolts -arrow C-  and tighten using new fastening nuts -4-  → Tightening torque: 20 Nm.
20. Place fuse element on threaded bolts -arrow D-  and tighten using new fastening nuts -5-  → Tightening torque: 4.5 Nm.
21. Slide cover of power distributor from front to back -arrow A-  and press on it -arrow B-  until the latch engages.

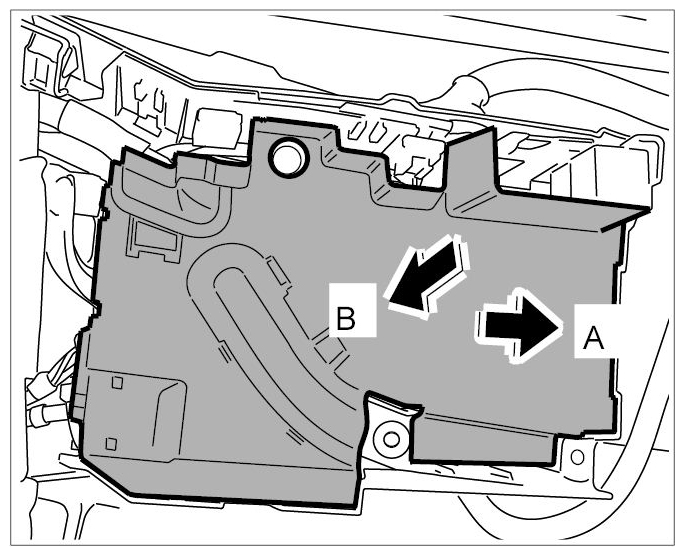

    Fig 10: Sliding Cover Of Power Distributor From Front To Back

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Only for vehicles with auxiliary battery

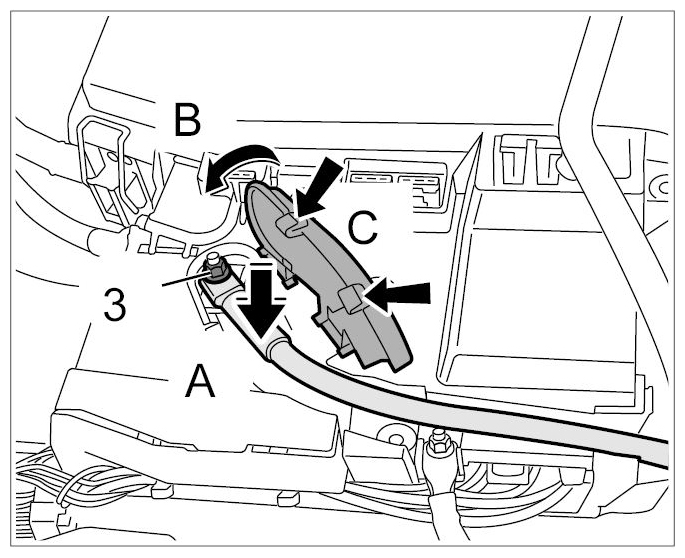

      Fig 11: Pushing Line For Auxiliary Battery Onto Threaded Bolt

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
22. Push line for auxiliary battery onto threaded bolt -arrow A-  and screw down with fastening nut -3- → Tightening torque: 20 Nm.
23. Close the cover -arrow B-  until the locking lugs are felt to engage.
24. Fold up carpeting -arrow-  , and place battery ground strap on body and tighten with fastening nut -2-  → Tightening torque: 5 Nm.
    Fig 12: Folding Up Carpet

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    WARNING: Incorrect handling of safety bolts

    • Danger of injury
    • Loss of torque

    → Always use new fastening screws and nuts following removal.

    → Observe specified tightening torques.

    → Carry out a visual inspection of all re-used parts.

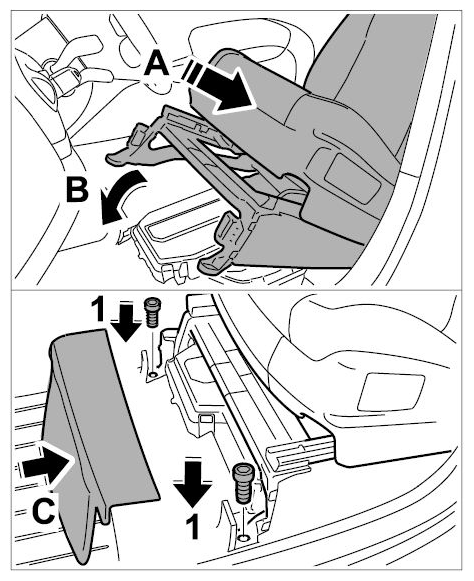

25. Move seat in folded position backwards -arrow A-  and fold forward -arrow B-  .
    Fig 13: Moving Seat In Folded Position Backwards

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
26. Screw in fastening screws -1-  → Tightening torque: 45 Nm.
27. Clip in front seat trim -arrow C-  .
