Relay carrier, plenum chamber E-box
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The E-box is located in the plenum chamber, on left side in direction of travel.
- Remove the left cover of the plenum chamber.

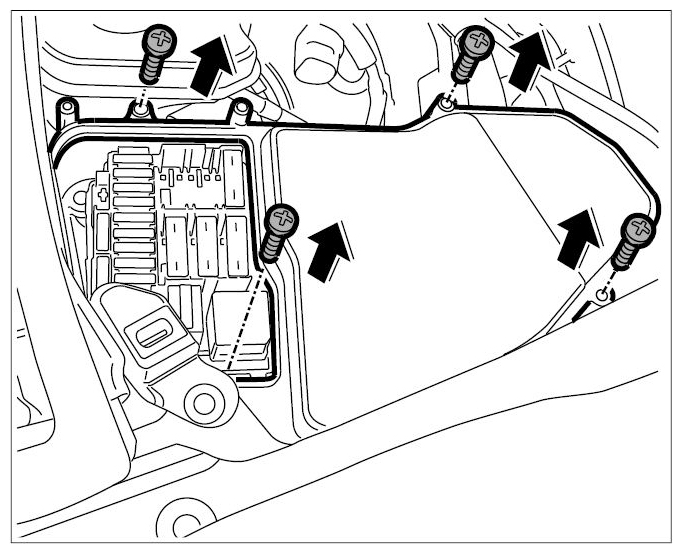

Unscrew the four fastening screws on the cover and remove the cover.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
