Relay Carrier: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

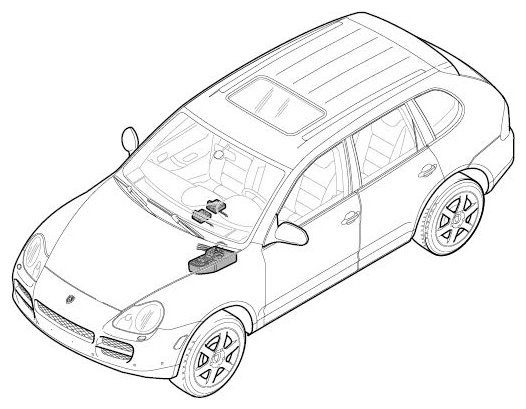

Fig 1: Overview Of Relay Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

In its maximum equipment version, the Cayenne has four relay carriers. 2 relay carriers are located in the E-box in the radiator tank and 1 or 2 relay carriers (according to the I-No.) are located on the driver's side below the dashboard.
