Removing Tiptronic Wire Harness

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

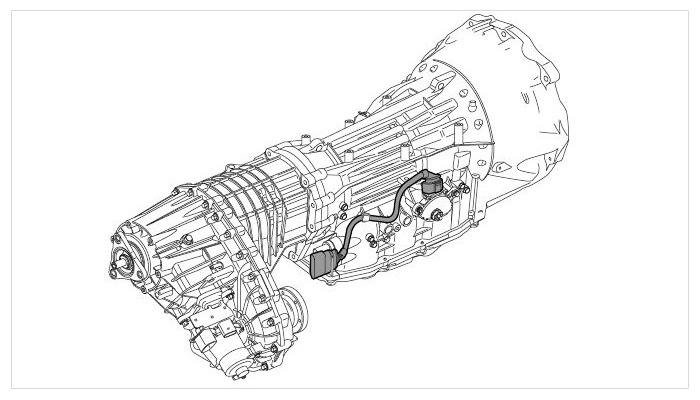

Fig 1: Installation Position Of Tiptronic Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

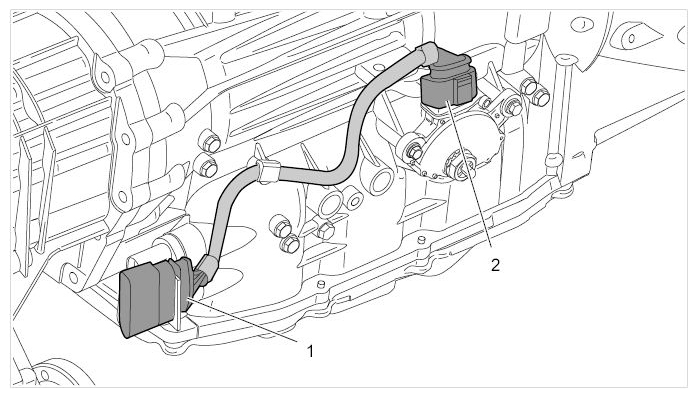

Fig 2: Overview Of Tiptronic Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector for main wire harness
Connector for multi-functional switch

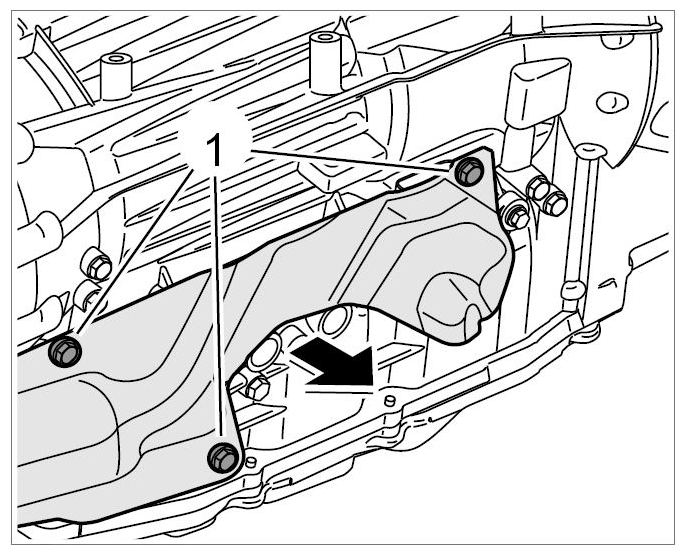

Unscrew fastening screws -1- and remove the heat shield -Arrow- .

Fig 3: Removing Heat Shield
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

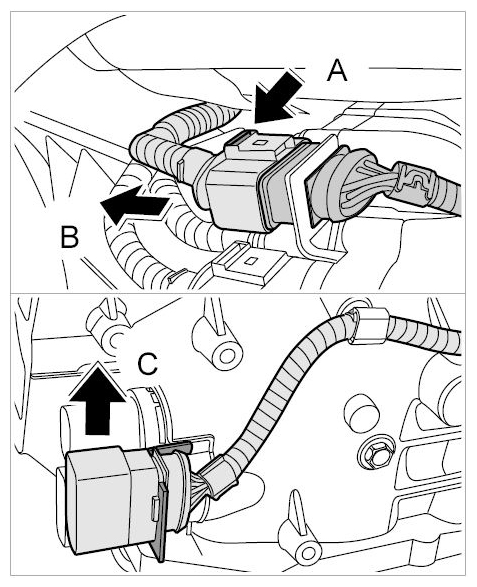

Release the connector -Arrow A- and pull it off -Arrow B- .

Fig 4: Pulling Off Connector For Main Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the socket from the bracket -Arrow C- .

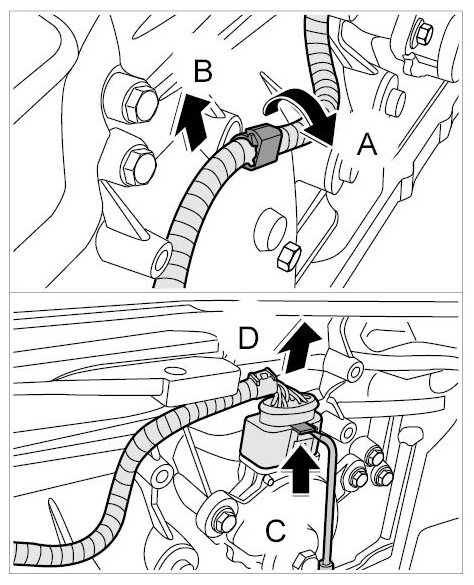

Open the clip -Arrow A- and remove the line -Arrow B- .

Fig 5: Disconnecting Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the connector using an angled piece of wire (approx. 2 mm in diameter) -Arrow C- and push it down off the multi-functional switch -Arrow D- .
