Installing Tiptronic Wire Harness

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

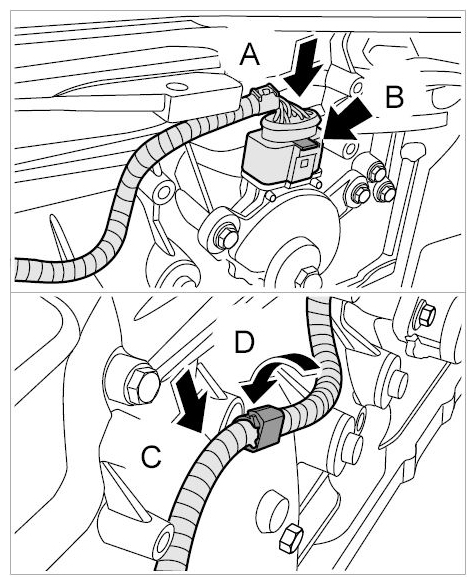

Push the connector onto the multi-functional switch -Arrow A- until the locking lug -B- is felt to engage.

Fig 1: Inserting Multi-Functional Switch And Clipping In Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the line into the clip -Arrow C- and close the clip -Arrow D- .

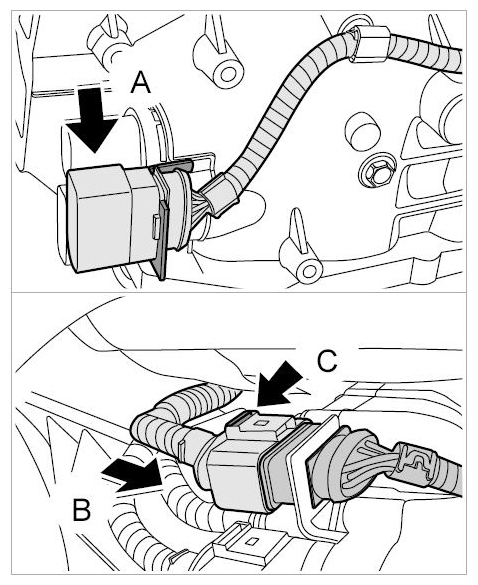

Insert the socket into the holder -Arrow A- .

Fig 2: Connecting Tiptronic Wire Harness To Main Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in the connector -Arrow B- until the locking lug is felt to engage -C- .

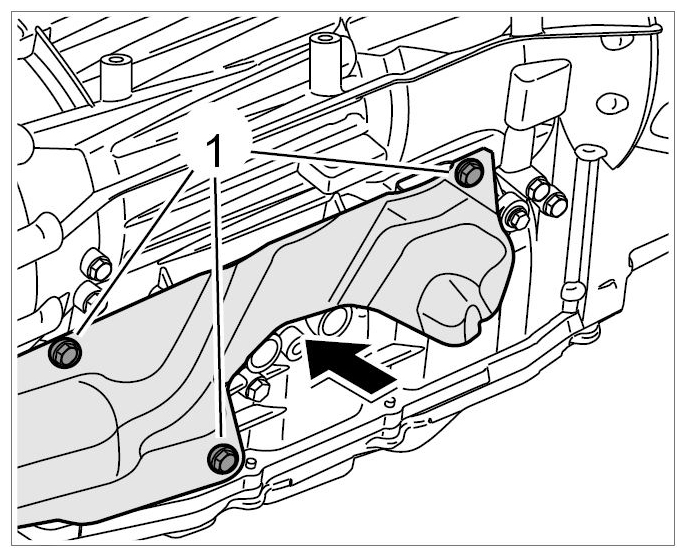

Place heat shield in installation position -Arrow- and secure with fastening screws -1- .

Fig 3: Installing Heat Shield
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
