Optical Waveguide Variants

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

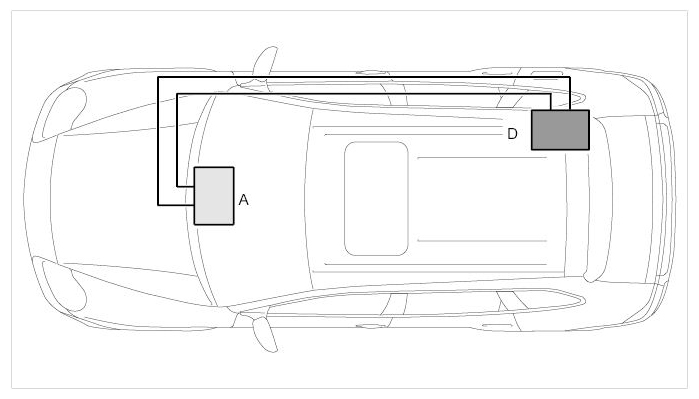

MOST control unit, variant A - D:

  1. A - Car radio
  2. D - CD changer
    Fig 1: Identifying MOST Control Unit, Variant (A - D)
    G09416533Courtesy of PORSCHE CARS NORTH AMERICA, INC.

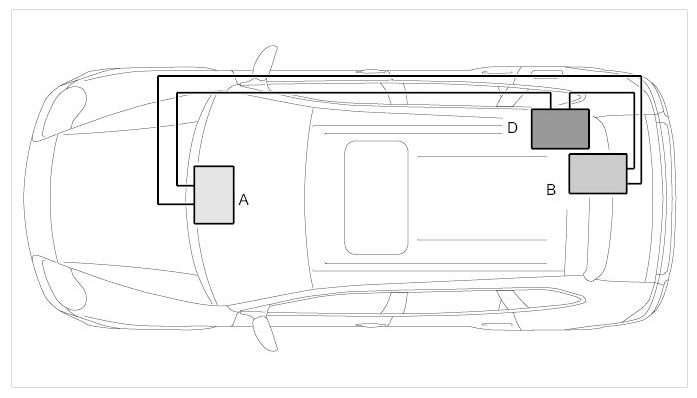

MOST control unit, variant A - B - D:

  1. A - Car radio
  2. B - Loudspeaker amplifier
  3. D - CD changer
    Fig 2: Identifying MOST Control Unit, Variant (A - B - D)
    G09416534Courtesy of PORSCHE CARS NORTH AMERICA, INC.

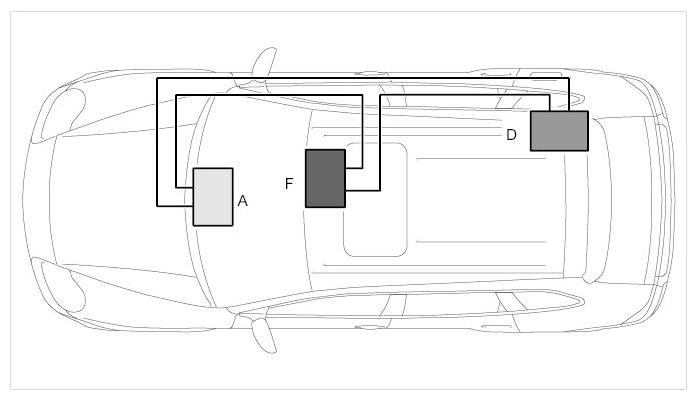

MOST control unit, variant A - D - F:

  1. A - Display and operator control unit (PCM)
  2. D - CD changer
  3. F - Navigation unit
    Fig 3: Identifying MOST Control Unit, Variant (A - D - F)
    G09416535Courtesy of PORSCHE CARS NORTH AMERICA, INC.

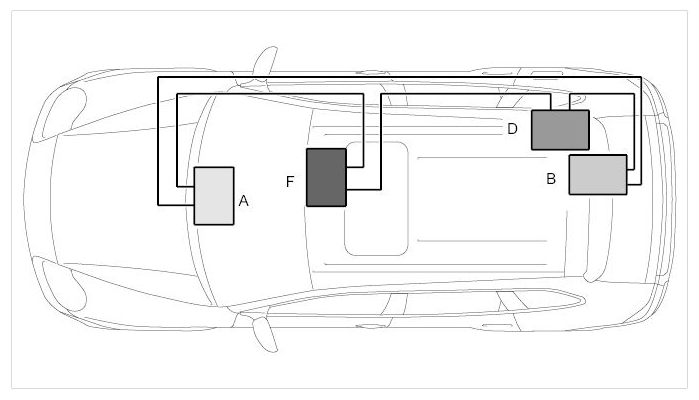

MOST control unit, variant A - B - D - F:

  1. A - Display and operator control unit (PCM)
  2. B - Loudspeaker amplifier
  3. D - CD changer
  4. F - Navigation unit
    Fig 4: Identifying MOST Control Unit, Variant (A - B - D - F)
    G09416536Courtesy of PORSCHE CARS NORTH AMERICA, INC.

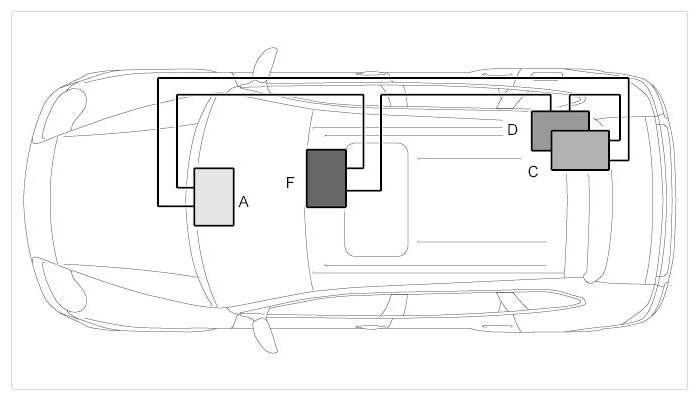

MOST control unit, variant A - C - D - F:

  1. A - Display and operator control unit (PCM)
  2. C - TV tuner
  3. D - CD changer
  4. F - Navigation unit
    Fig 5: Identifying MOST Control Unit, Variant (A - C - D - F)
    G09416537Courtesy of PORSCHE CARS NORTH AMERICA, INC.

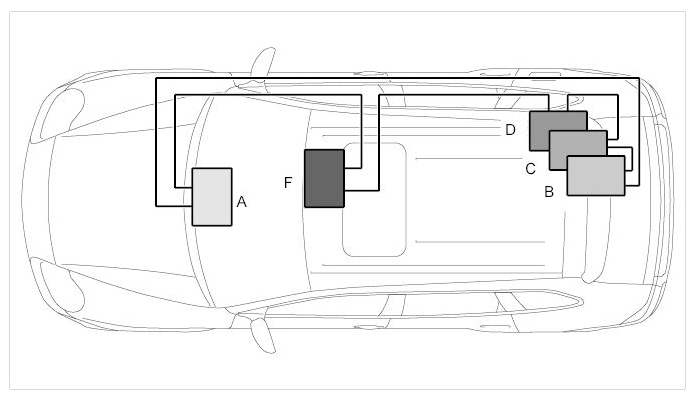

MOST control unit, variant A - B - C - D - F:

  1. A - Display and operator control unit (PCM)
  2. B - Loudspeaker amplifier
  3. C - TV tuner
  4. D - CD changer
  5. F - Navigation unit
    Fig 6: Identifying MOST Control Unit, Variant (A - B - C - D - F)
    G09416538Courtesy of PORSCHE CARS NORTH AMERICA, INC.

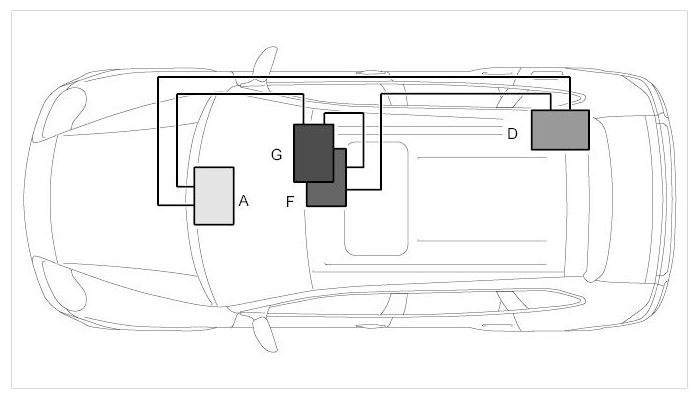

MOST control unit, variant A - D - F - G:

  1. A - Display and operator control unit (PCM)
  2. D - CD changer
  3. F - Navigation unit
  4. G - Telephone control module
    Fig 7: Identifying MOST Control Unit, Variant (A - D - F - G)
    G09416539Courtesy of PORSCHE CARS NORTH AMERICA, INC.

MOST control unit, variant A - B - D - F - G:

  1. A - Display and operator control unit (PCM)
  2. B - Loudspeaker amplifier
  3. D - CD changer
  4. F - Navigation unit
  5. G - Telephone control module
    Fig 8: Identifying MOST Control Unit, Variant (A - B - D - F - G)
    G09416540Courtesy of PORSCHE CARS NORTH AMERICA, INC.

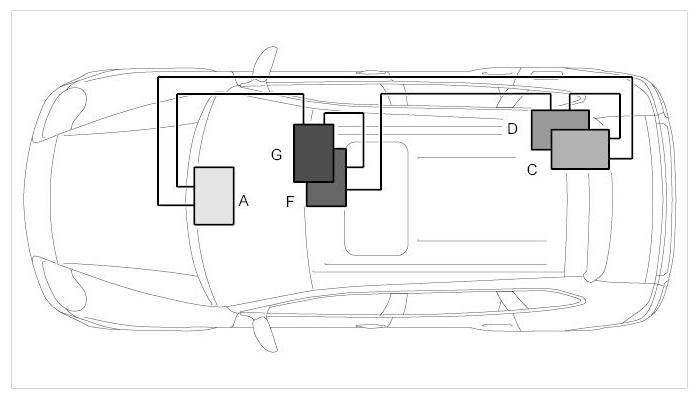

MOST control unit, variant A - C - D - F - G:

  1. A - Display and operator control unit (PCM)
  2. C - TV tuner
  3. D - CD changer
  4. F - Navigation unit
  5. G - Telephone control module
    Fig 9: Identifying MOST Control Unit, Variant (A - C - D - F - G)
    G09416541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

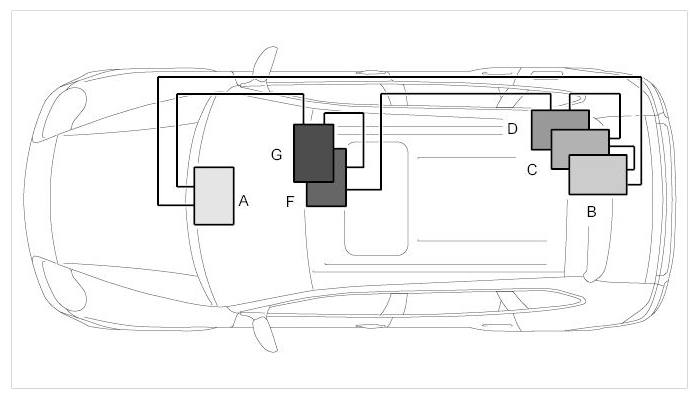

MOST control unit, variant A - B - C - D - F - G:

  1. A - Display and operator control unit (PCM)
  2. B - Loudspeaker amplifier
  3. C - TV tuner
  4. D - CD changer
  5. F - Navigation unit
  6. G - Telephone control module
    Fig 10: Identifying MOST Control Unit, Variant (A - B - C - D - F - G)
    G09416542Courtesy of PORSCHE CARS NORTH AMERICA, INC.

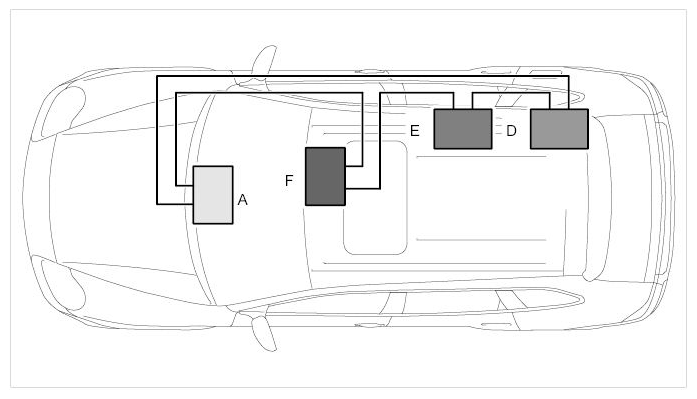

MOST control unit, variant A - D - E - F:

  1. A - Display and operator control unit (PCM)
  2. D - CD changer
  3. E - Receiver digital radio
  4. F - Navigation unit
    Fig 11: Identifying MOST Control Unit, Variant (A - D - E - F)
    G09416543Courtesy of PORSCHE CARS NORTH AMERICA, INC.

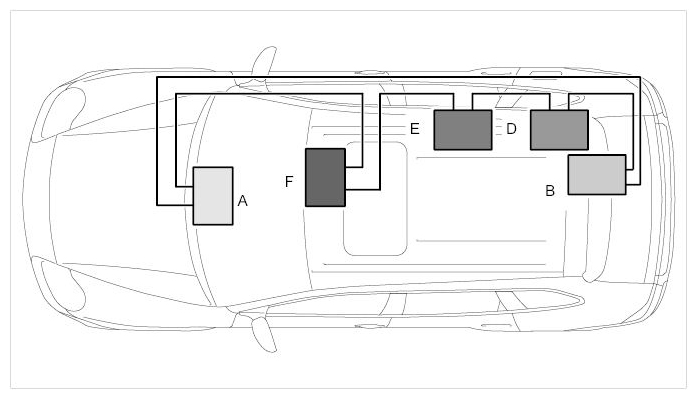

MOST control unit, variant A - B - D - E - F:

  1. A - Display and operator control unit (PCM)
  2. B - Loudspeaker amplifier
  3. D - CD changer
  4. E - Receiver digital radio
  5. F - Navigation unit
    Fig 12: Identifying MOST Control Unit, Variant (A - B - D - E - F)
    G09416544Courtesy of PORSCHE CARS NORTH AMERICA, INC.
