Removing Wire Harness For Rear ABS

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

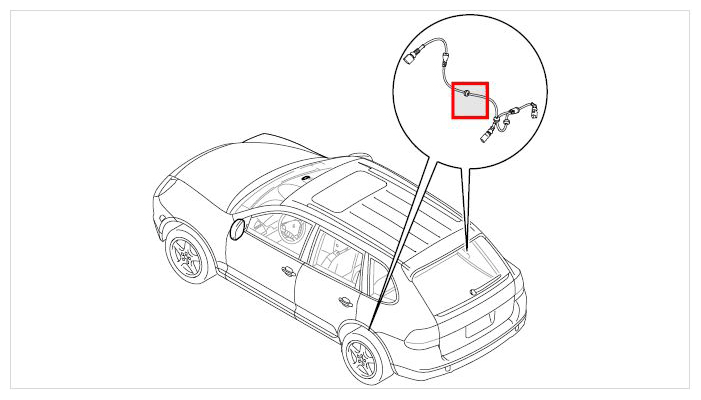

Fig 1: Identifying Installation Position Of Wire Harness For Rear ABS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

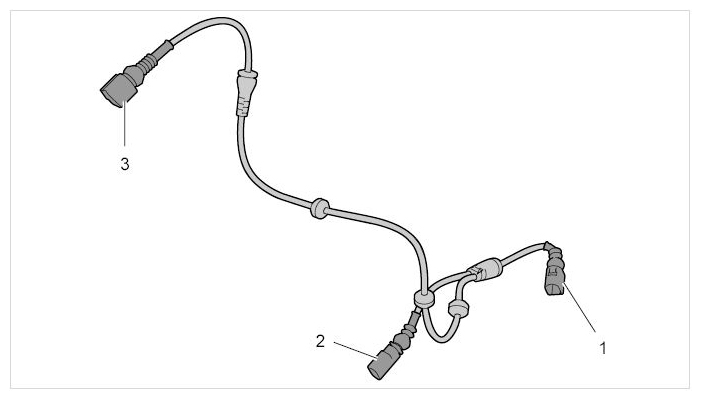

Fig 2: Overview Of Wire Harness For ABS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector for ABS sensor
Connector for brake pad wear indicator
Connector for main wire harness

Release the connector -Arrow A- and pull it off -Arrow B- .

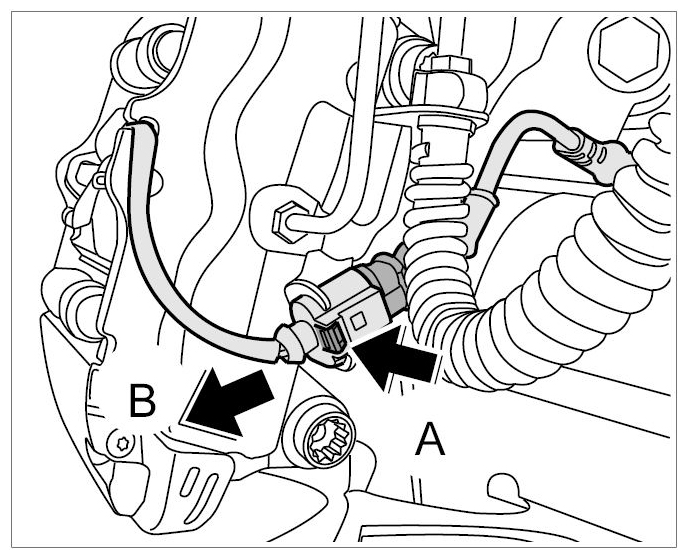

Fig 3: Pulling Off Connector On ABS Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the connector -Arrow A- and pull it off -Arrow B- .

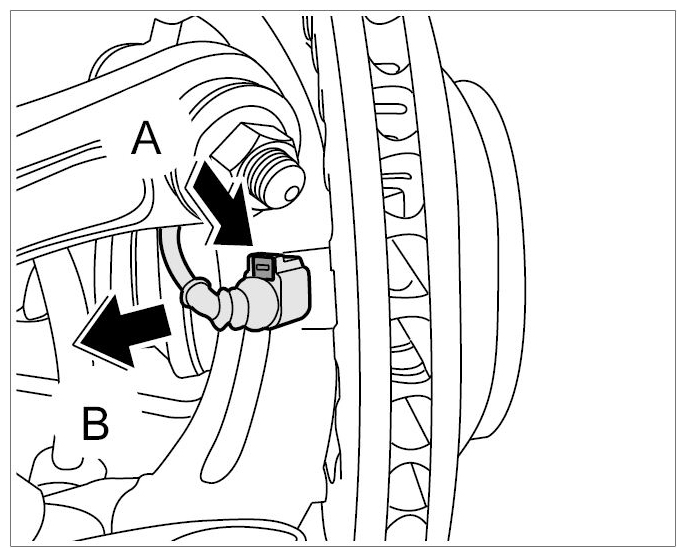

Fig 4: Disconnecting Plug Connection For Rear Brake Pad Wear Indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove line from the holder.
1. 3.1. Press the line out of the holder -Arrow A- .

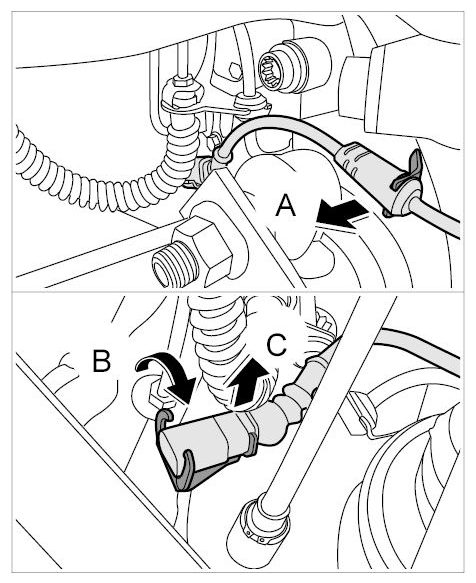

  Fig 5: Removing Socket From Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Turn the connector approx. 90° -Arrow B- and take it out of the holder -Arrow C- .
Press the line out of the holders -Arrows- .

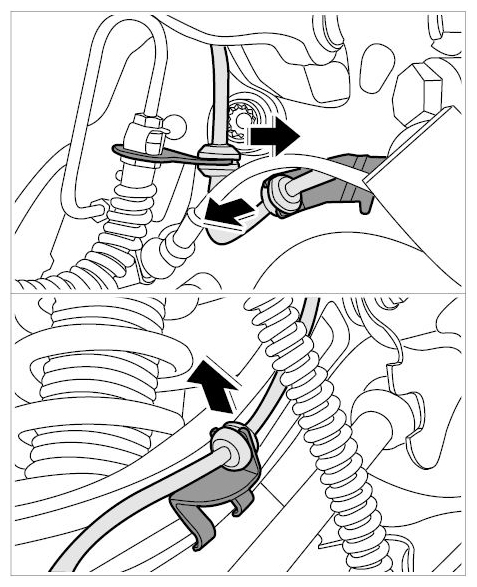

Fig 6: Taking Rear ABS Line Out Of Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing ABS line
1. 5.1. Press the line out of the holders -Arrow A- .

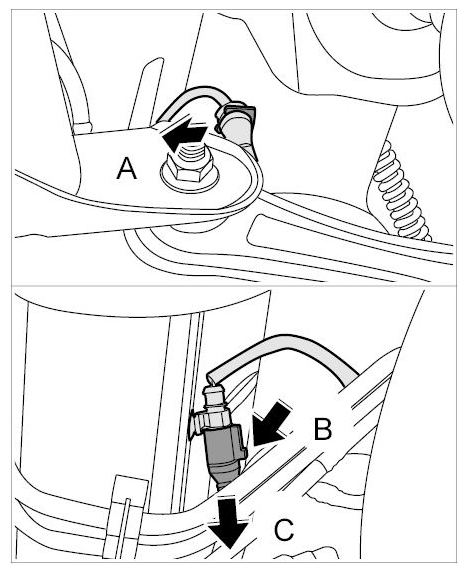

  Fig 7: Removing Rear ABS Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Release the connector -Arrow B- and pull it off -Arrow C- .
3. 5.3. Remove the wire harness.
