Removing Front ABS Wire Harness

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

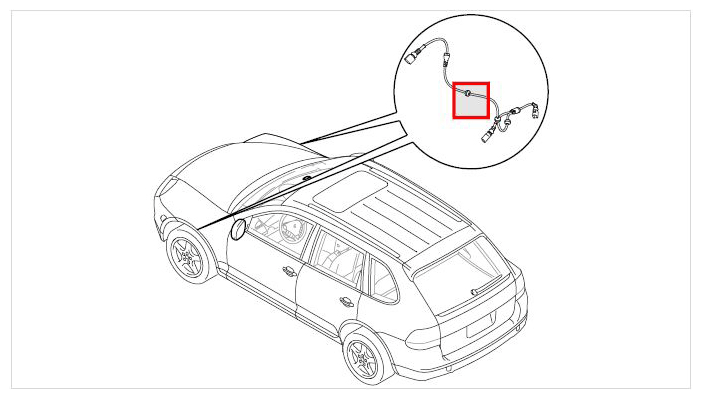

Fig 1: Identifying Installation Position Of Front ABS Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

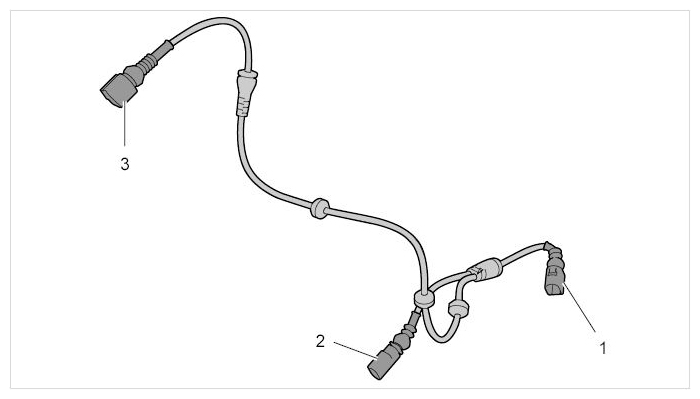

Fig 2: Overview Of Wire Harness For ABS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector for ABS sensor
Connector for brake pad wear indicator
Connector for main wire harness

Release the socket -arrow A- and pull it off -arrow B- .

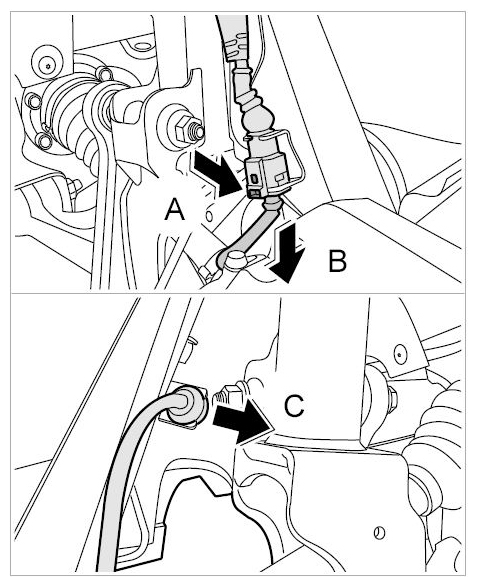

Fig 3: Disconnecting Plug Connection For Brake Pad Wear Indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take the line out of the bracket -arrow C- .
Release the connector -arrow A- and pull it off -arrow B- .

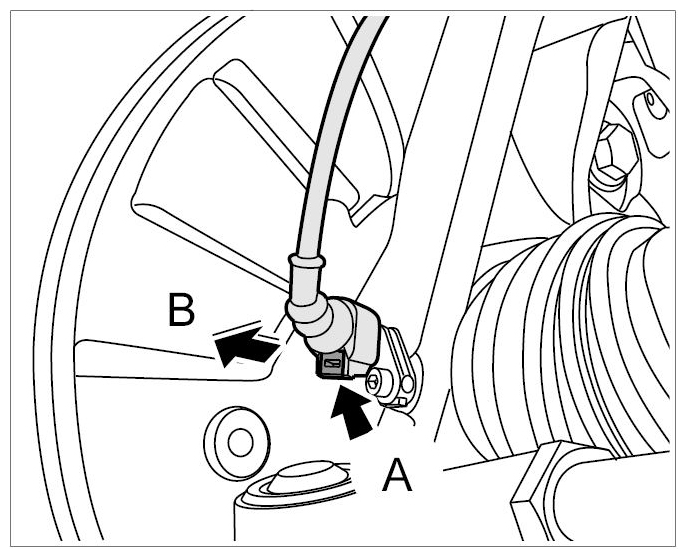

Fig 4: Pulling Off Connector On ABS Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove line from the bracket.
1. 4.1. Press the line out of the bracket -arrow A- .

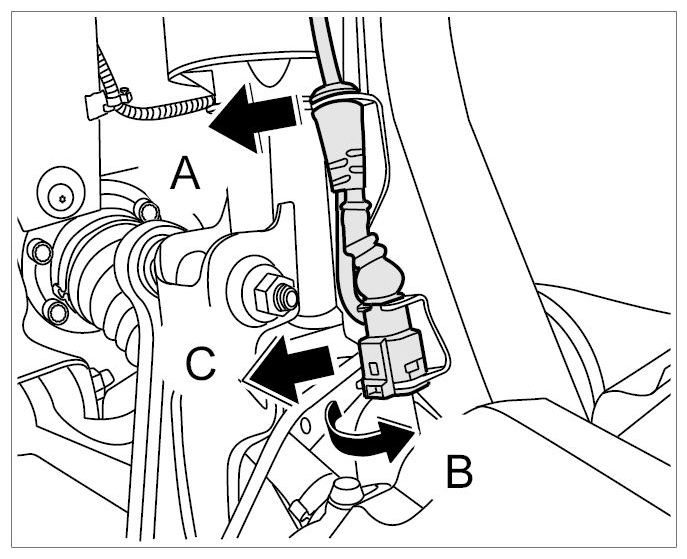

  Fig 5: Removing Socket From Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Turn the connector approx. 90° -arrow B- and take it out of the bracket -arrow C- .
Take the line out of the brackets -arrows- .

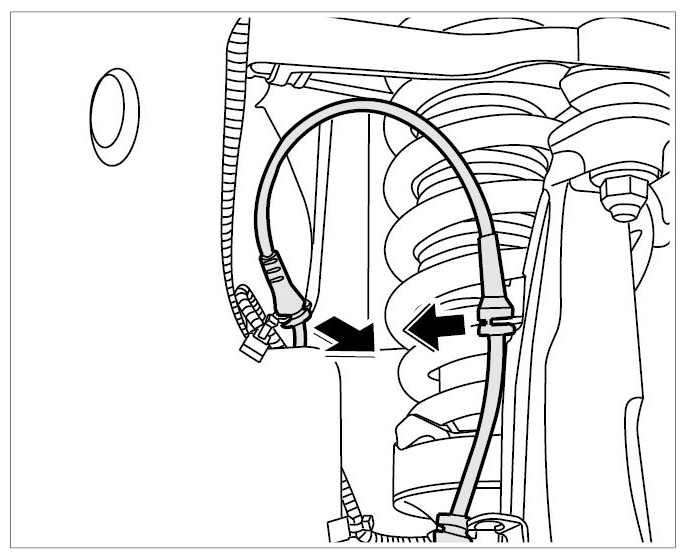

Fig 6: Removing Line From Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the clips -arrows A- and remove the line -arrows B- .

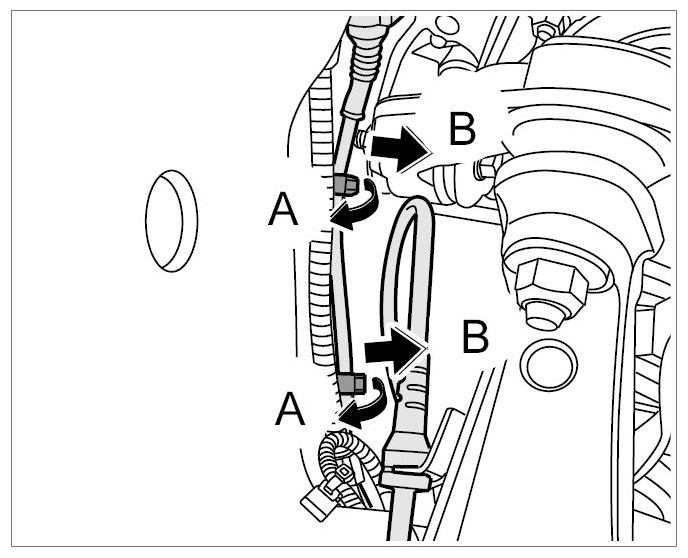

Fig 7: Unclipping ABS Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the connector -arrow A- and pull it off -arrow B- .

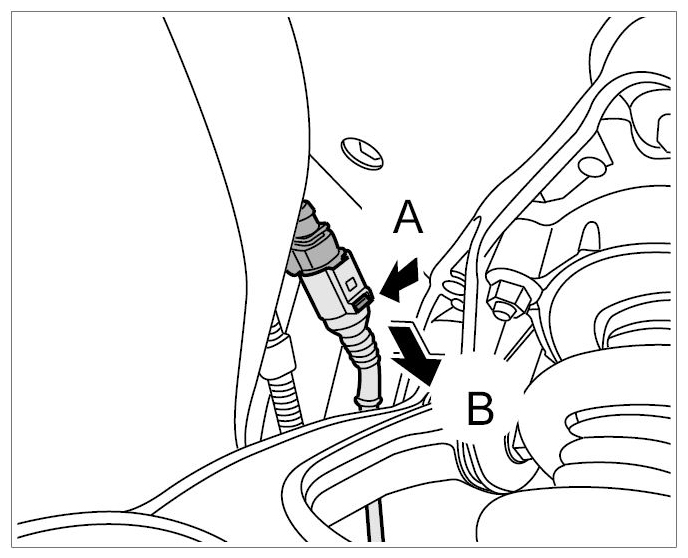

Fig 8: Unplugging And Removing ABS Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove wire harness.
