Installing ABS line
1. 1.1. Attach the line -Arrow A- until the locking lug -B- is felt to engage.

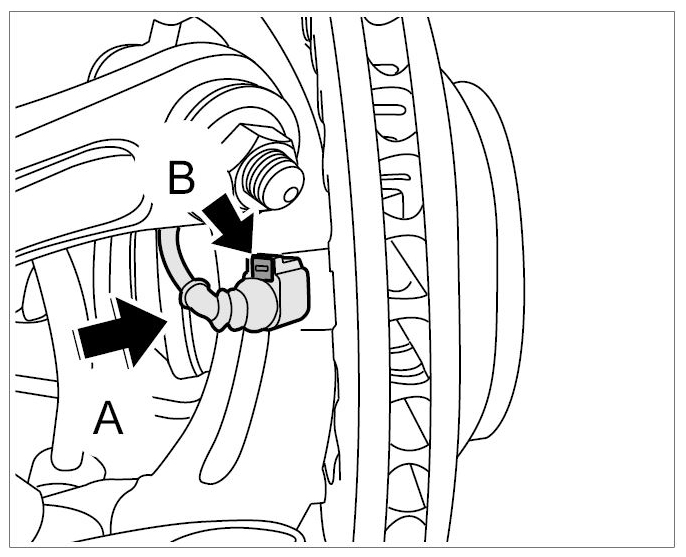

  Fig 1: Installing Rear ABS Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Press the line into the holder -Arrow C- until it engages securely.
Press the line into the holders -Arrows- until it engages securely.

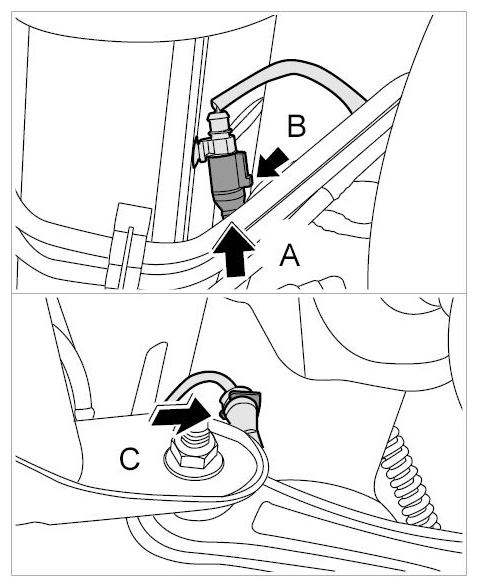

Fig 2: Inserting Rear ABS Line Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert line into the holder.
1. 3.1. Insert the connector into the holder -Arrow A- and turn it approx. 90° -Arrow B- .

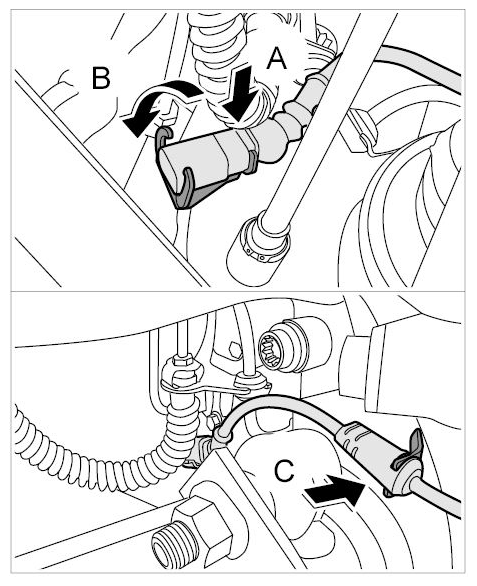

  Fig 3: Securing Connector In Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Press the line into the holder -Arrow C- until it engages securely.
Insert the connector -Arrow A- until the locking lug -B- is felt to engage.

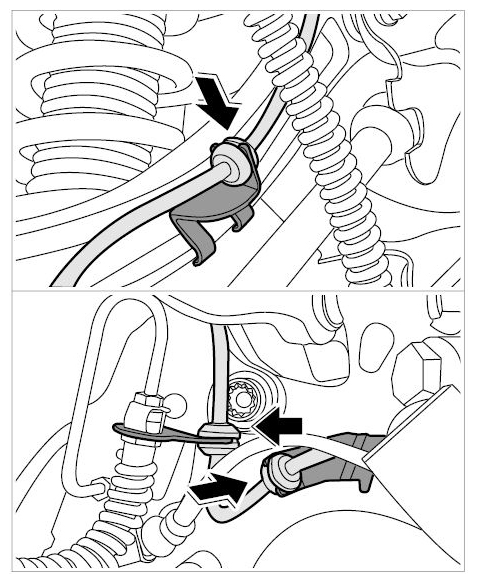

Fig 4: Connecting Plug Connection For Brake Pad Wear Indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the connector -Arrow A- until the locking lug -B- is felt to engage.

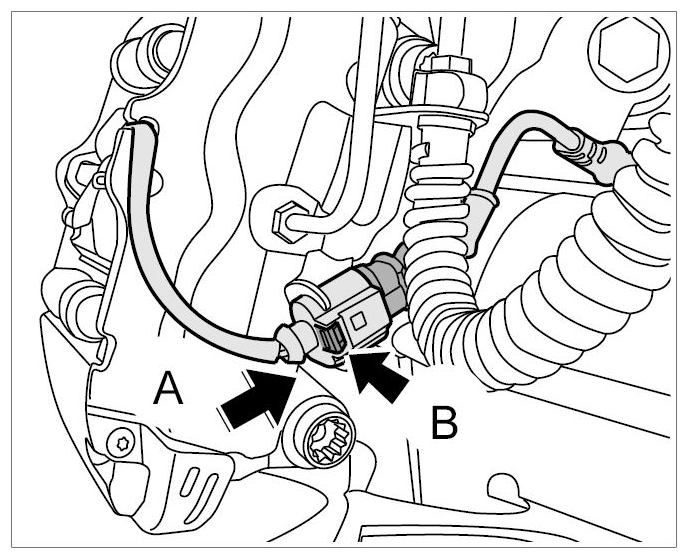

Fig 5: Connecting ABS Line On ABS Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
