Installing Wire Harness For Front ABS

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

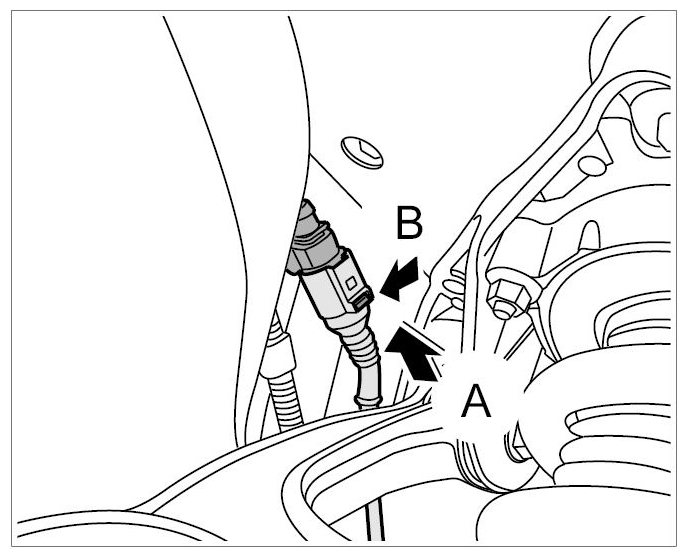

Insert the line -Arrow A- until the locking lug -B- is felt to engage.

Fig 1: Connecting Line On Main Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

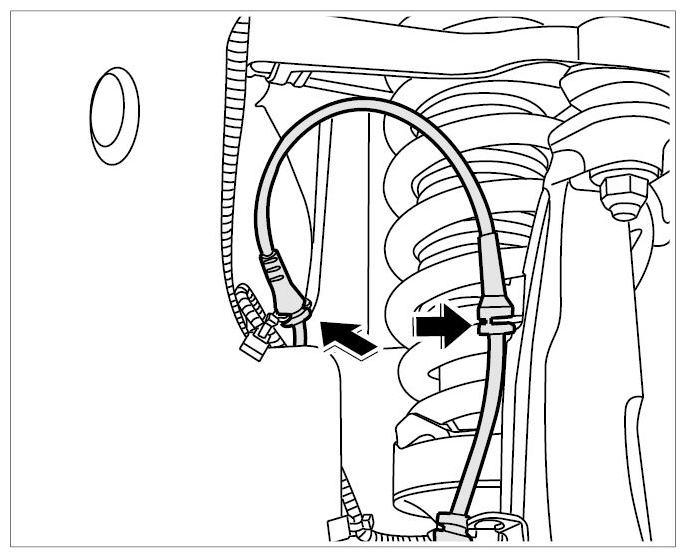

Place the line in installation position and close the clips until the locking lugs are felt to engage.

Fig 2: Clipping In ABS Line On Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

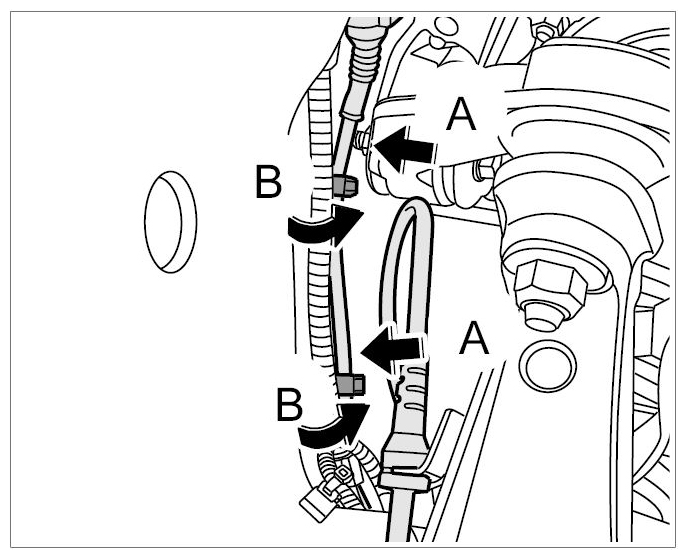

Press the line into the holders -Arrows- until it engages securely.

Fig 3: Inserting ABS Line Into Holders
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert line into the holder.

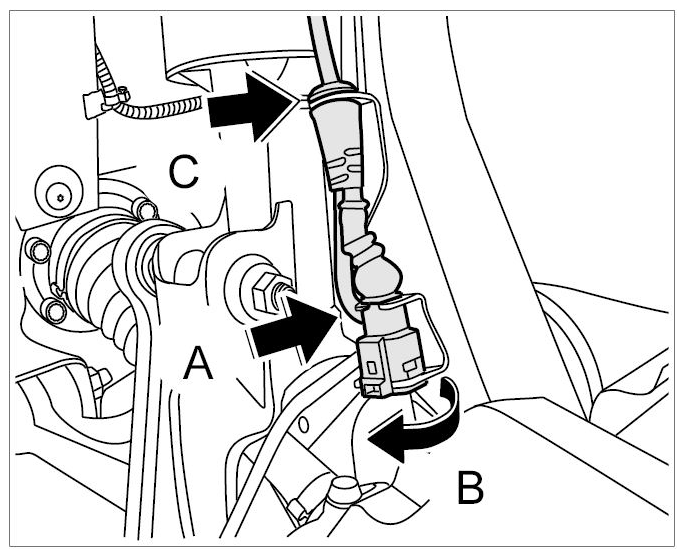

1. 4.1. Insert the connector into the holder -Arrow A- and turn it approx. 90° -Arrow B- .

  Fig 4: Securing Connector In Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Press the line into the holder -Arrow C- until it is felt to engage.

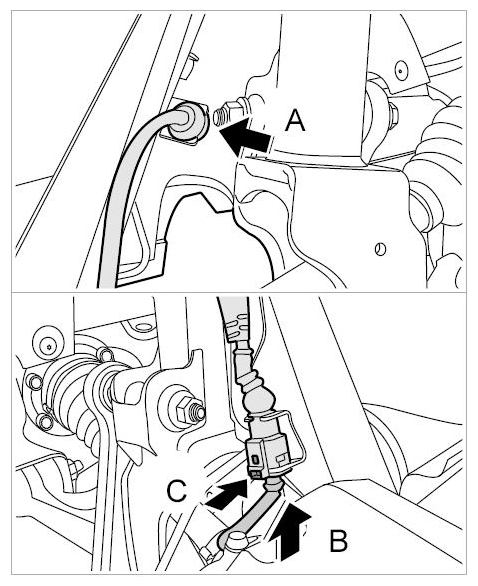

Press the line into the holder -Arrow A- until it is felt to engage.

Fig 5: Connecting Plug Connection For Front Brake Pad Wear Indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the connector -Arrow B- until the locking lug -C- is felt to engage.

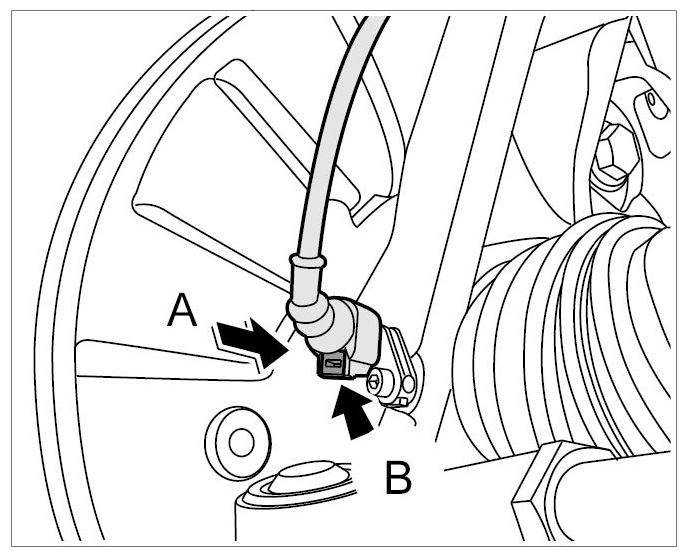

Push on connector -Arrow A- until the locking lug -B- is felt to engage.

Fig 6: Inserting ABS Line On ABS Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
