Installing Wiring Harness For Additional Heating

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

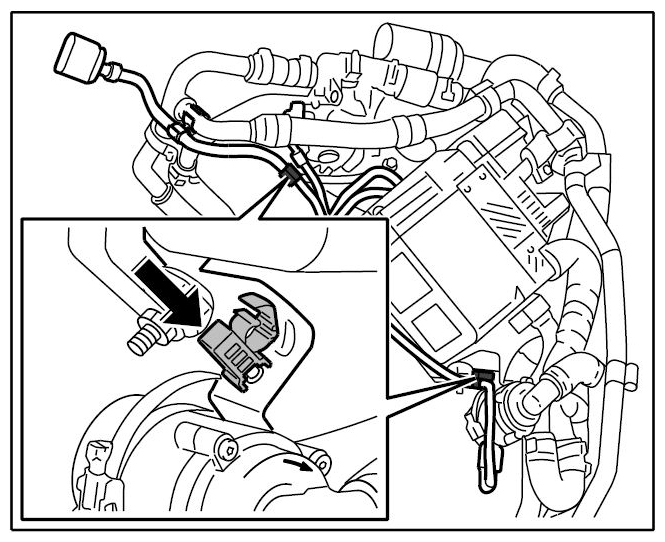

Push the clips onto the threaded bolts -Arrow- .

Fig 1: Installing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- When replacing the wiring harness, transfer the position markings of the clips to the new harness.

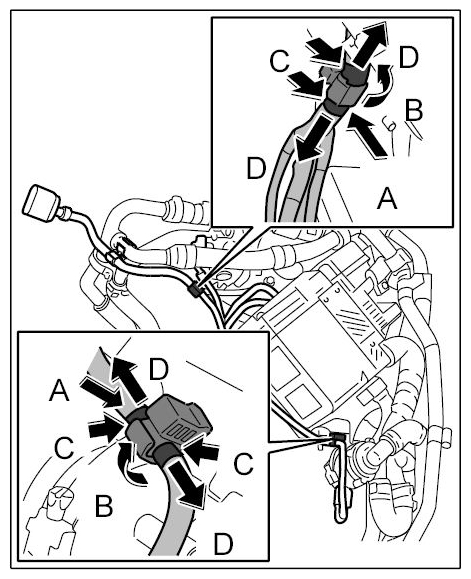

Insert wiring harness in the clips -Arrows A- and press in the clip to the first notch only -Arrows B- - do not press down!

Fig 2: Positioning Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align wiring harness with the clips at the adhesive tape markings -Arrows C- -Arrows D- and press in the clips fully -Arrows B- .

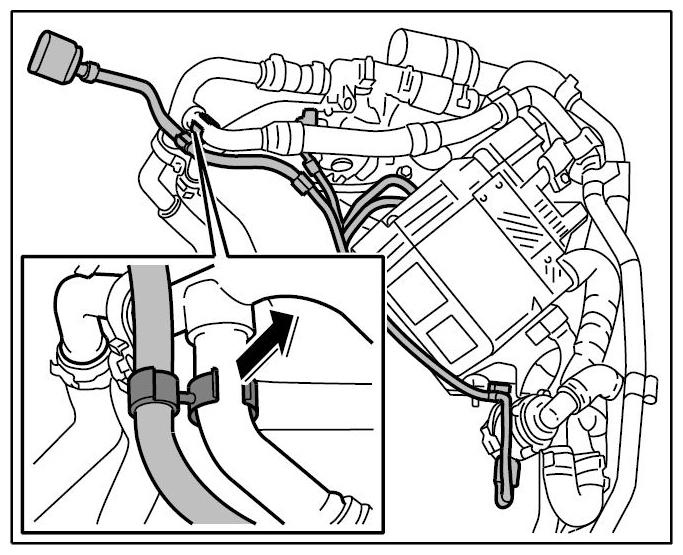

Clip the line to the water pipe again -Arrow- .

Fig 3: Clipping Line To Water Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

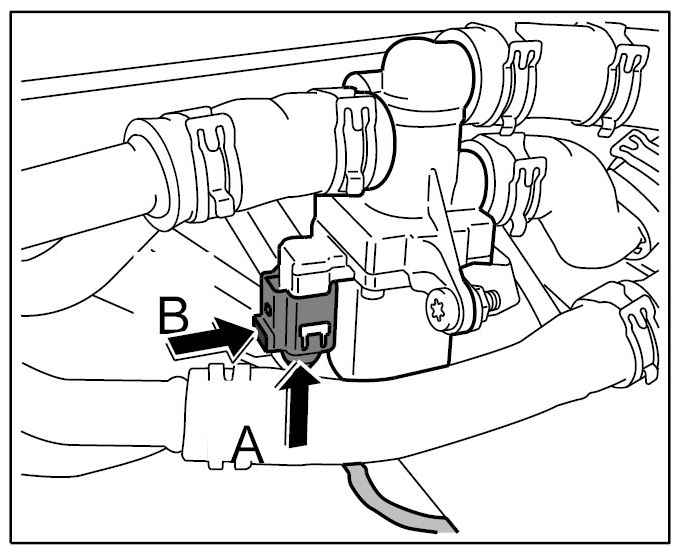

Push on connector -Arrow A- until the locking tab -Arrow B- is felt to engage.

Fig 4: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

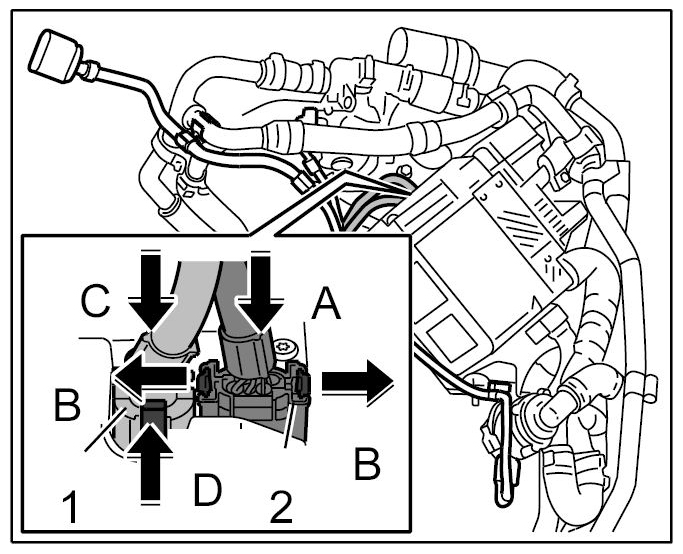

Plug in outer connector -2- -Arrow A- until the locking tabs are felt to engage -Arrows B- .

Fig 5: Plugging In Inner And Outer Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in inner connector -1- -Arrow C- until the locking tab -Arrow D- is felt to engage.

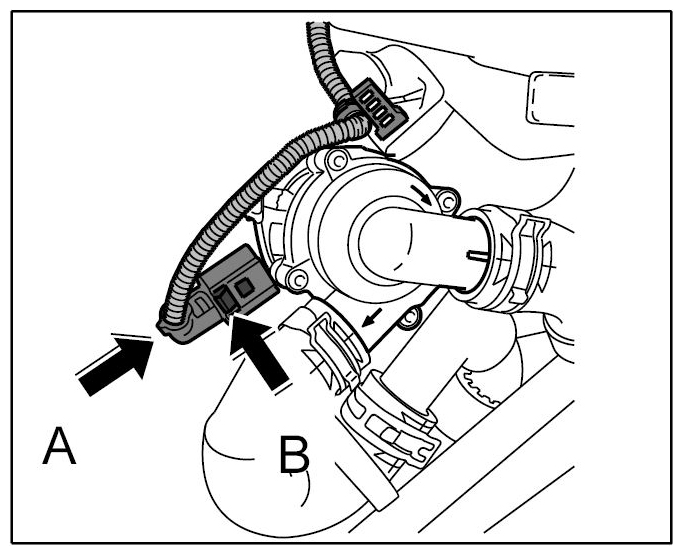

Plug in connector -Arrow A- until the locking tab -Arrow B- is felt to engage.

Fig 6: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
