Installing Wiring For Electrically Adjustable Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

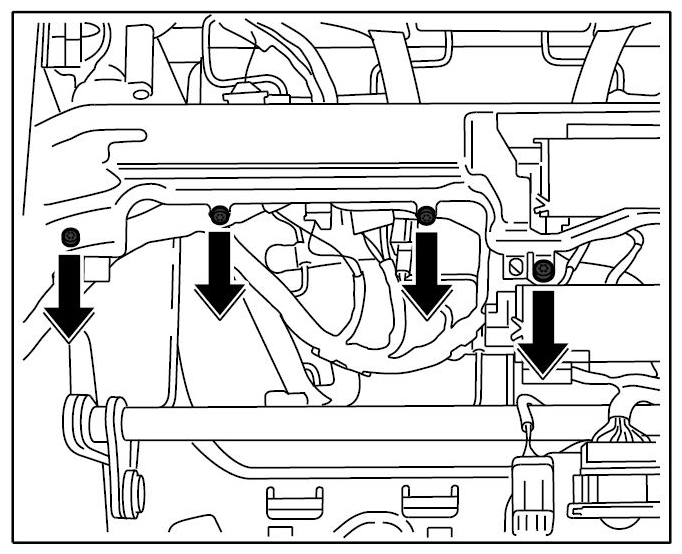

Clip wiring harness to inner side of seat frame -Arrows- .

Fig 1: Clipping Wiring Harness To Inner Side Of Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

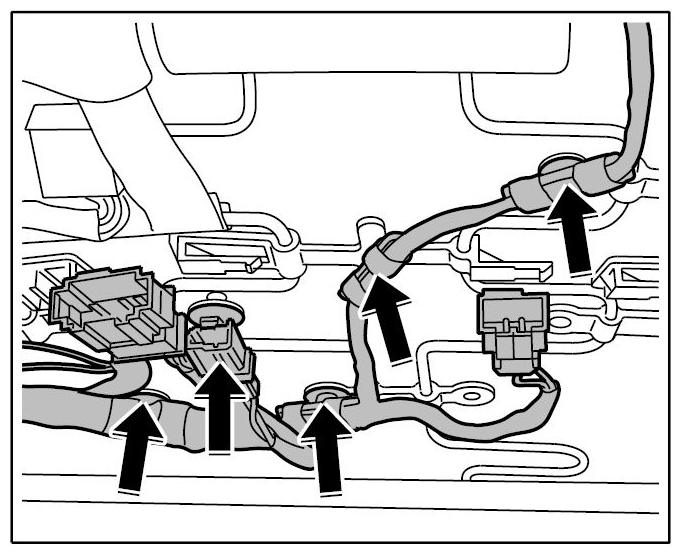

Clip wiring harness into inner spring -Arrows- .

Fig 2: Clipping Wiring Harness Into Inner Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

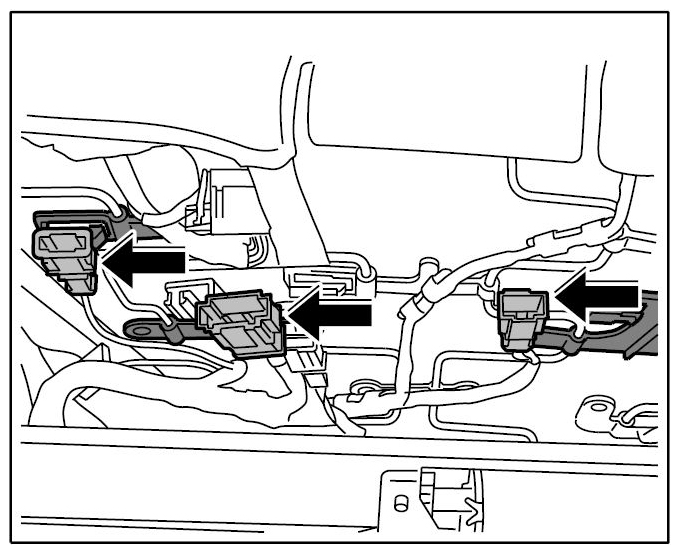

Press socket housing into the inner spring at the side -Arrows- until the locking mechanisms are felt to engage.

Fig 3: Inserting Socket Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

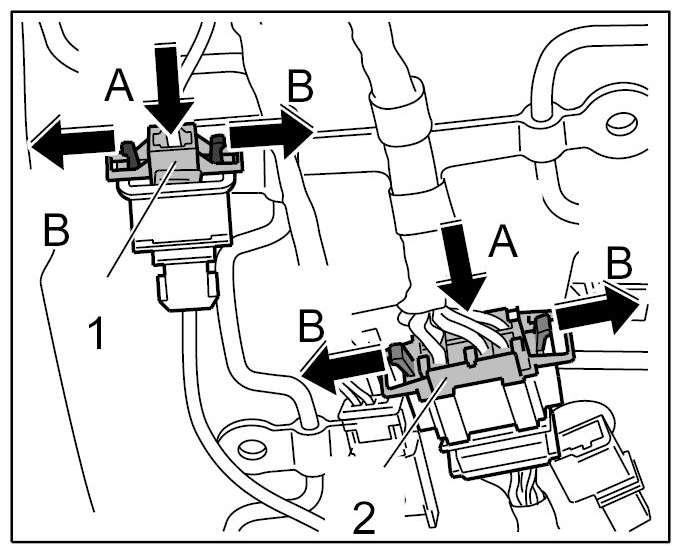

Insert ground connector of airbag -1- and central connector of backrest -2- into seat wiring harness -Arrows A- until locking tabs -Arrows B- are felt to engage.

Fig 4: Inserting Airbag Ground Connector And Central Connector Of Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compress airbag connector -Arrow A- until the locking mechanism -Arrow B- is felt to engage.

Fig 5: Inserting Airbag Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

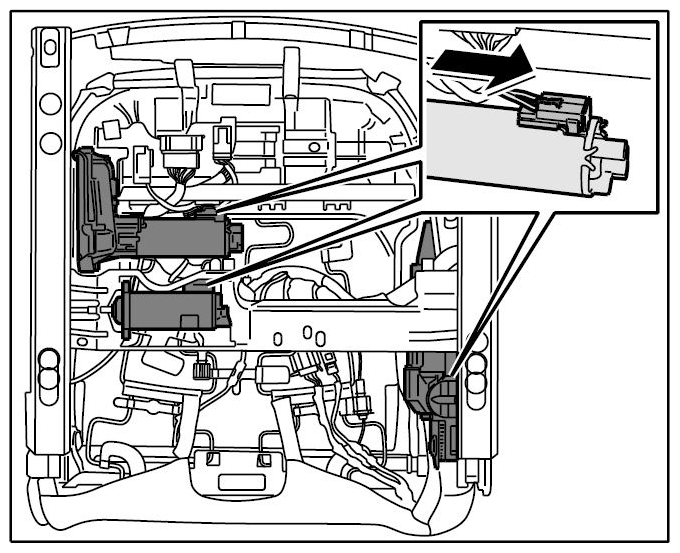

Push connectors onto adjusting motors -Arrow- until they are felt to engage.

Fig 6: Pushing Connectors Onto Adjusting Motors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

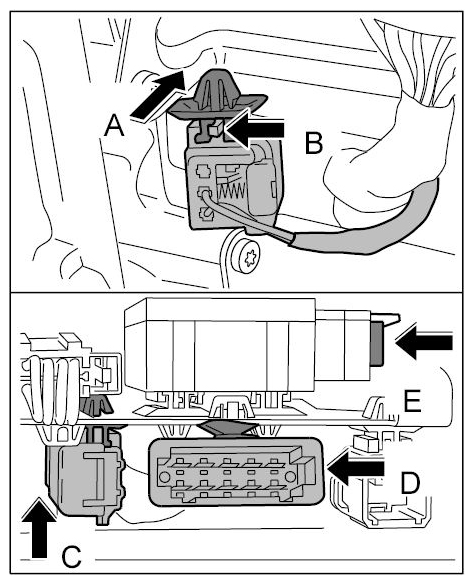

Push clip onto airbag connector -Arrow A- until locking mechanism is felt to engage -Arrow B- .

Fig 7: Pushing Clip Onto Airbag Connector, Insert In Retainer Plate And Plug Connector Into Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert airbag connector into the retainer plate -Arrow C- until the clip is felt to engage in the retainer plate.
Push central connector onto the retaining clip -Arrow D- until it is felt to engage.
Insert plug into seat heater control unit -Arrow E- until it is felt to engage.

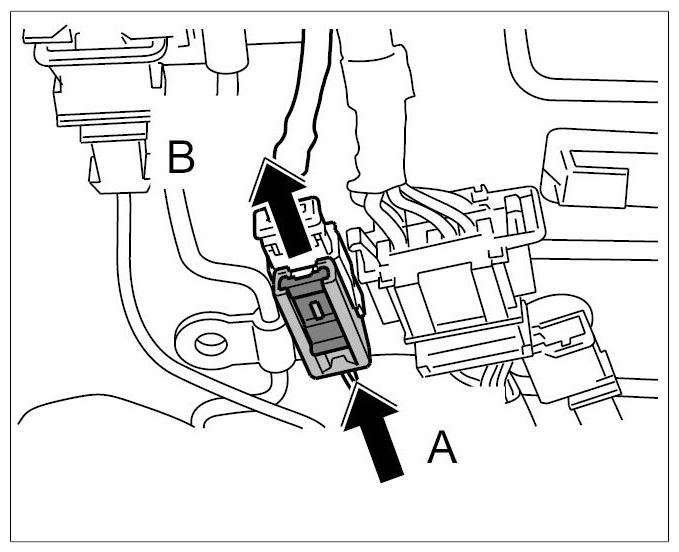

Insert connector into floor light -Arrow A- until the locking tabs are felt to engage -Arrows B- .

Fig 8: Inserting Connector For Floor Light, Attach Tie-Wrap And Install Floor Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

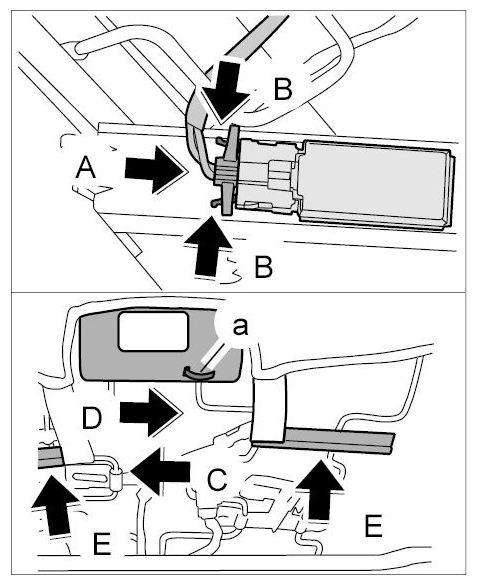

Fasten line with a new tie-wrap -a- to the holder.
Slide in holder with footwell light to the left -Arrow C- , then move it to the right -Arrow D- until the latch is felt to engage.
Engage plastic strips of backrest cover on the inner spring -Arrows E- .
