Removing Wire Harness For Spare Wheel Mount

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove momentary-switch handle for spare wheel mount .

Fasten a wire of suitable length to the connector socket of the momentary-switch handle using adhesive tape.

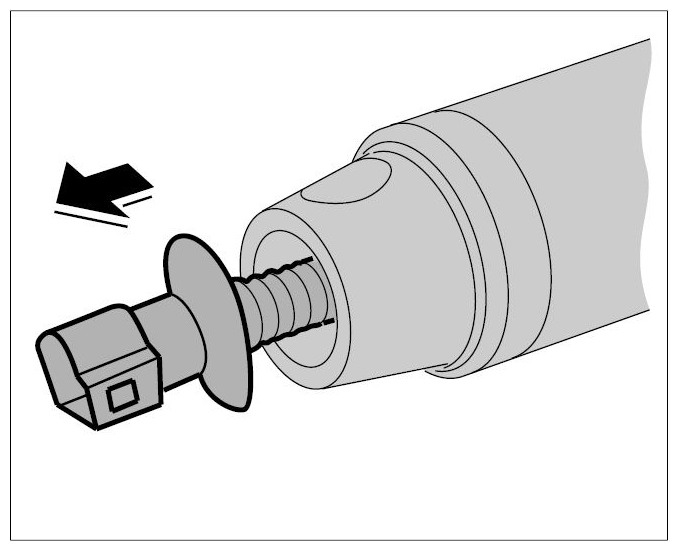

Fig 1: Fastening Wire Of Suitable Length To Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The wire must hang out of the two openings of the spare wheel mount. The wire remains in the spare wheel mount.
Pull wire harness from spare wheel mount and release wire harness from the wire.

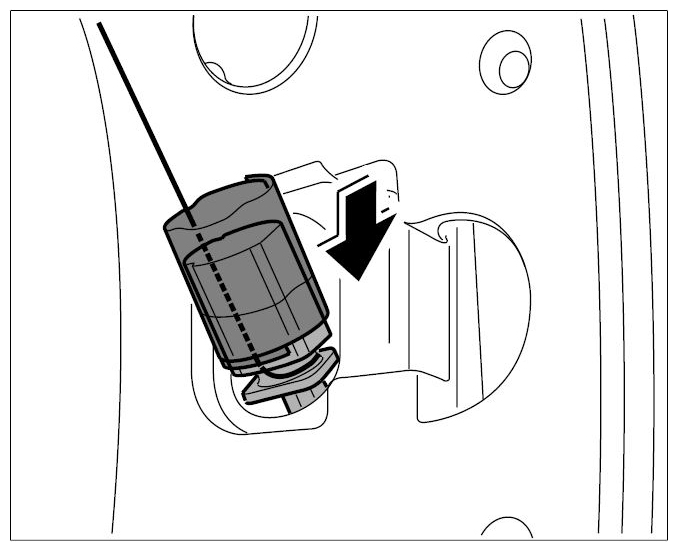

Fig 2: Pulling Wire Harness From Spare Wheel Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
