Installing Wire Harness For Spare Wheel Mount

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fasten connector socket wire harness to the inserted wire using adhesive tape.

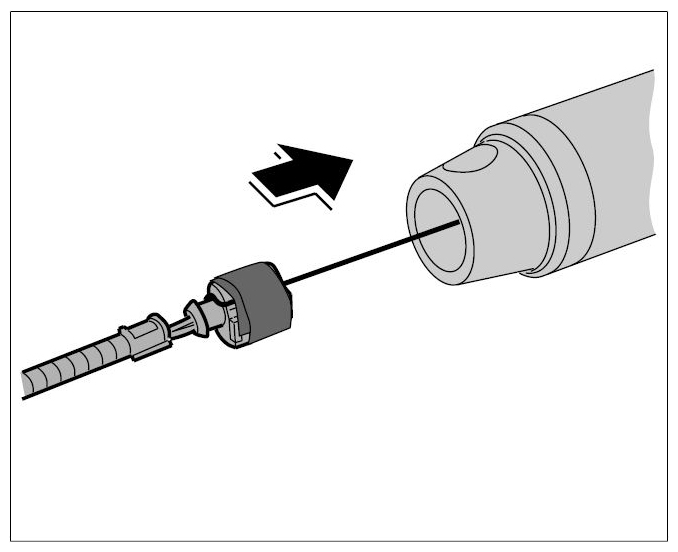

Fig 1: Fastening Connector Socket Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull wire harness into the spare wheel mount using the wire and release wire harness from the wire.

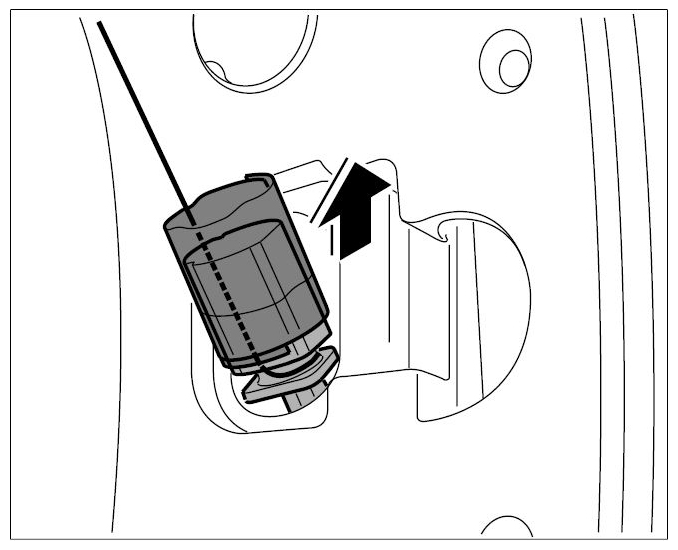

Fig 2: Pulling Wire Harness Into Spare Wheel Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove momentary-switch handle for spare wheel mount .
