Installing Pyrotechnical Cutoff Relay

Information

• Use new nuts!

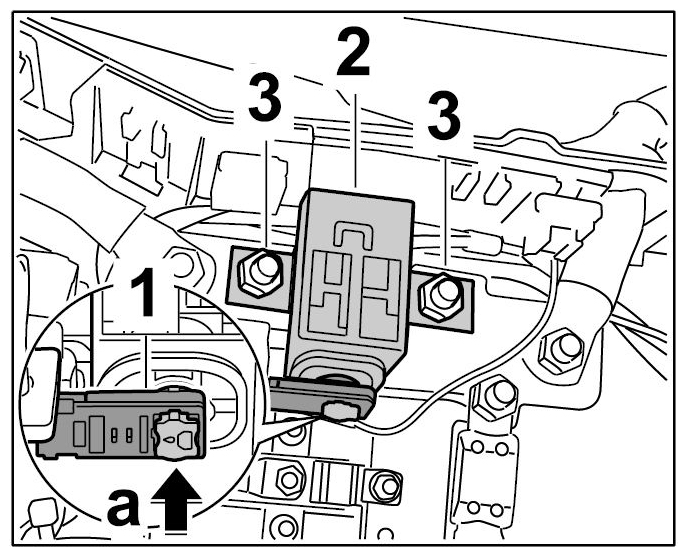

1. Position the cutoff relay -2-  in the power distributor. Screw on the two fastening nuts -3-  on the cutoff relay. → Tightening torque: 20 Nm (15 ftlb.)
   Fig 1: Installing Cutoff Relay

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Connect electric connector -1-  to cutoff relay and lock it -arrow a-  .

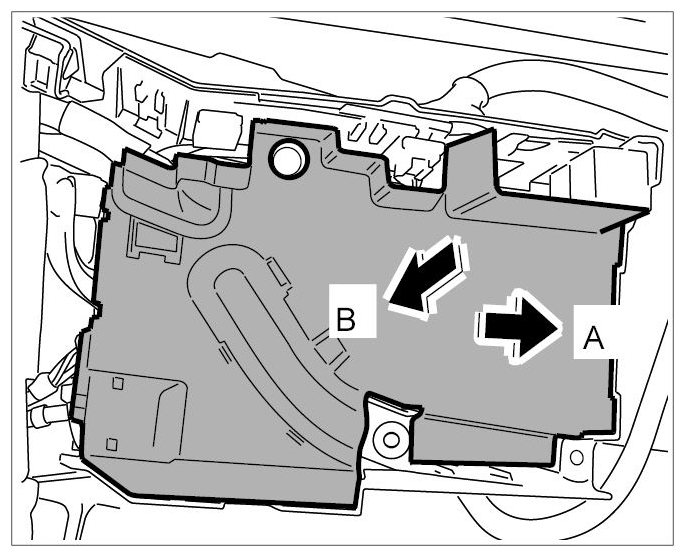

3. Slide cover of power distributor from front to back -arrow A-  and press it on -arrow B-  until the latch locks into place.
   Fig 2: Installing Power Distributor Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Only for vehicles with auxiliary battery
4. Attach the line for the additional battery to the threaded bolt -arrow A-  and secure with the fastening nut -3-  . → Tightening torque: 20 Nm (15 ftlb.)
   Fig 3: Screwing On Line For Additional Battery

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

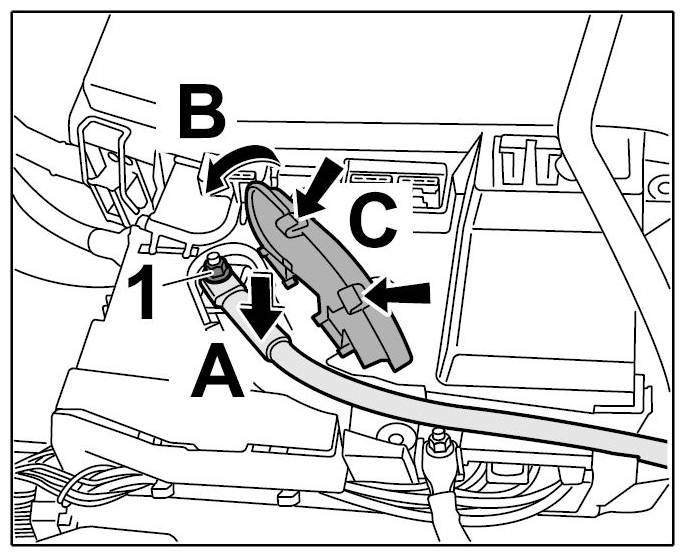

5. Close the cover -arrow B-  until the locking lugs -arrows C-  engage securely.

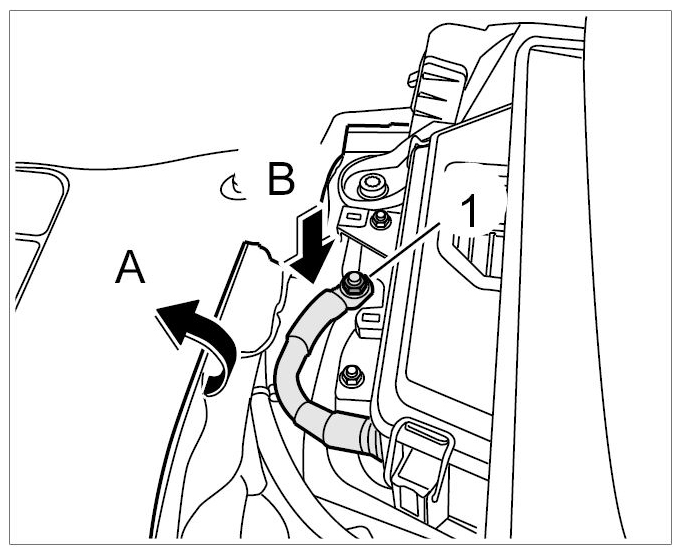

1. Fold carpeted floor forward -arrow A-  , place battery ground strap on the body -arrow B-  and secure with the fastening nut -1-  . → Tightening torque: 20 Nm (15 ftlb.)
   Fig 4: Securing Ground Strap To Body

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

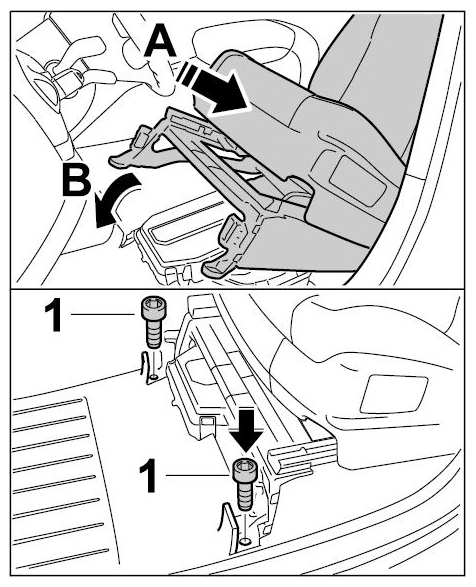

2. Move the seat in its folded position towards the rear -arrow A-  and then tip it forward -arrow B-  .
   Fig 5: Folding Seat Back And Screwing Down

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Tighten fastening screws -1-  . → Tightening torque: 45 Nm (33 ftlb.)

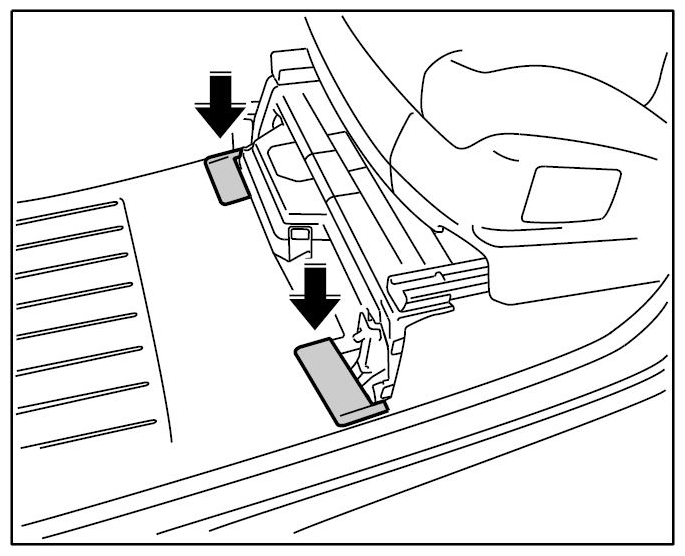

4. Clip in the right and left carpet cover -arrows-  until they engage securely.
   Fig 6: Clipping In Carpet Covers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

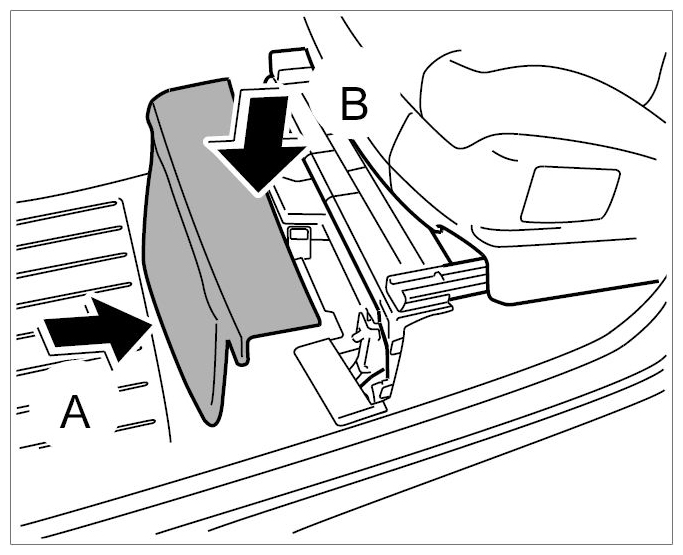

5. Clip in the front seat trim at the front seat frame and at the side trim panel -arrow A-  .
   Fig 7: Clipping In Trim Panel For Front Seat Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Press the front seat trim down -arrow B-  until the locking lugs engage securely on the seat frame.
