Removing External Power Connection

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Working on the vehicle electrical system

Risk of burns
Risk of short circuit or fire.

→ Disconnect the battery.

→ Prevent battery from reconnecting.

→ Cover the battery.

→ Remove ground terminal and cover the terminals.

→ Route electric lines without tensile strength.

→ Secure electric lines to existing lines/components.

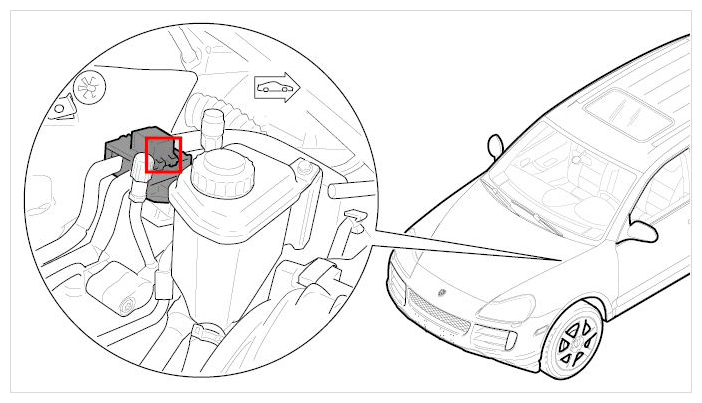

Fig 1: Installation Position Of External Power Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

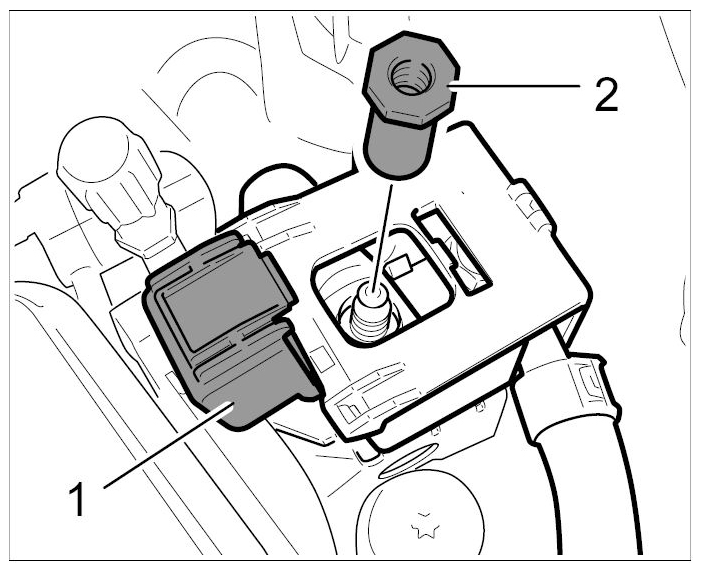

Open cap -1- and unscrew fastening nut -2- on the B+ line.

Fig 2: Unscrewing Fastening Nut On B+ Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

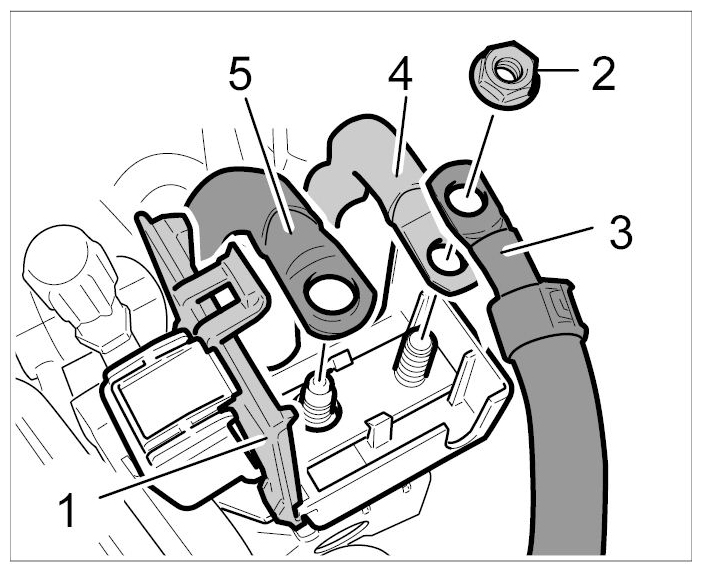

Remove B+ lines.
1. 2.1. Open cap -1- .
2. 2.2. Screw off fastening nut -2- for B+ lines.
3. 2.3. Remove B+ lines -3, 4 and 5- .

  Fig 3: Removing B+ Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

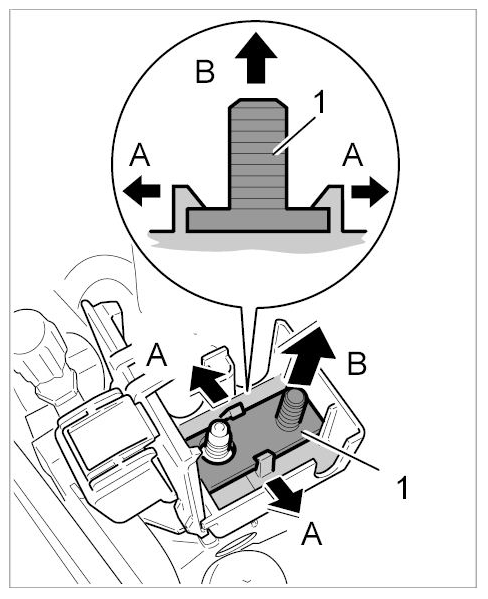

Release connecting piece for B+ lines -1- (-arrows A- ) and remove it -arrow B- .

Fig 4: Removing Connecting Piece For B+ Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

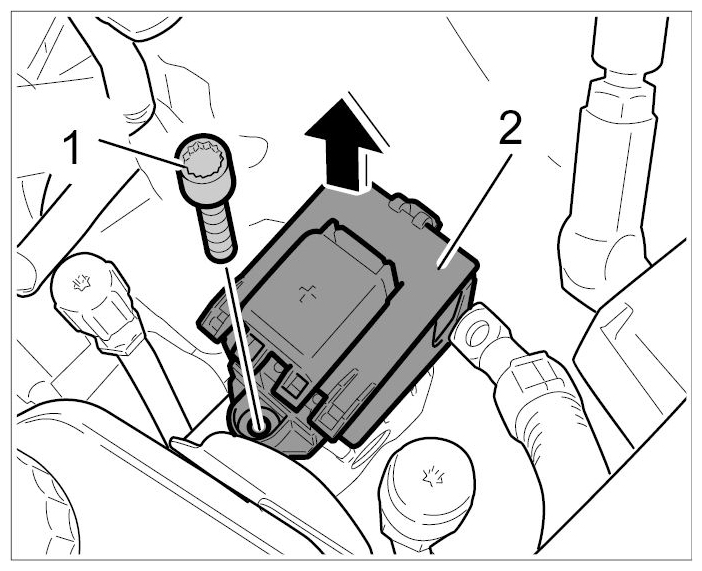

Unscrew fastening screw -1- and remove external power connection -2- (-arrow- ).

Fig 5: Loosening External Power Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

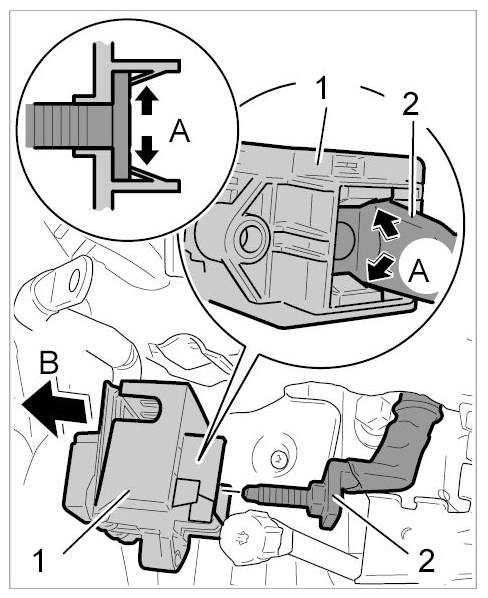

Release locking lugs on the external power connection -1- (-arrows A- ) and remove external power connection -1- from the B+ line -2- (-arrow B- ).

Fig 6: Removing External Power Connection From B+ Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
