Installing External Power Connection

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

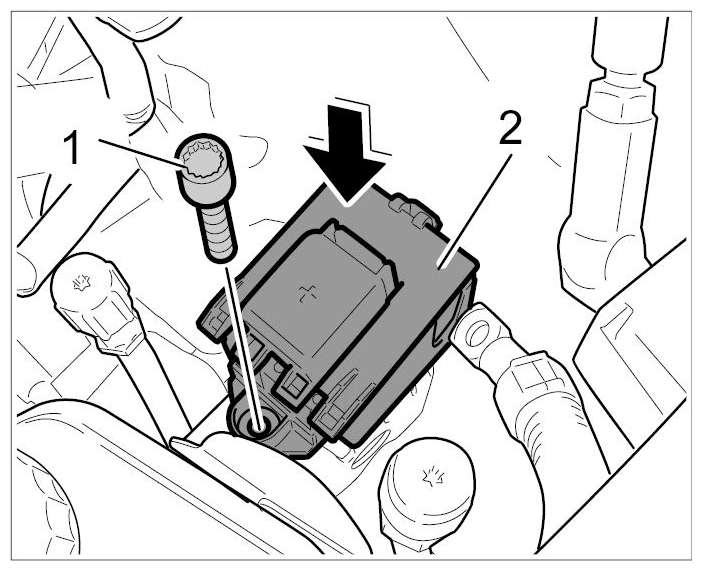

Connect external power connection -1- to the B+ line -2- (-arrow- ) until the locking lugs -arrows- of the external power connection -1- engage securely.

Fig 1: Connecting External Power Connection To B+ Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

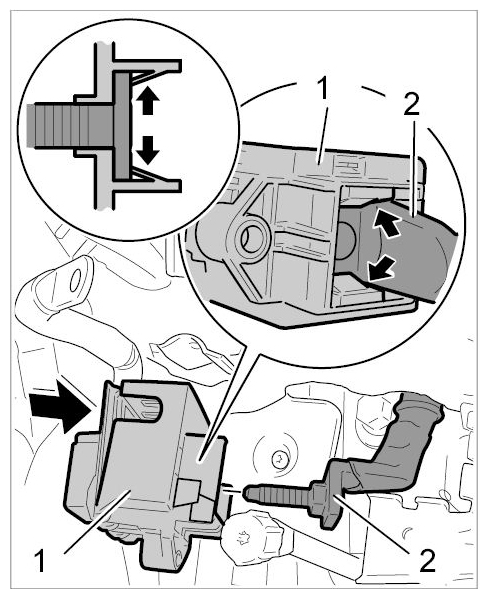

Position external power connection -2- on the holder -arrow- and secure with the fastening screw -1- . → Tightening torque: 10 Nm (7.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.)

Fig 2: Securing External Power Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

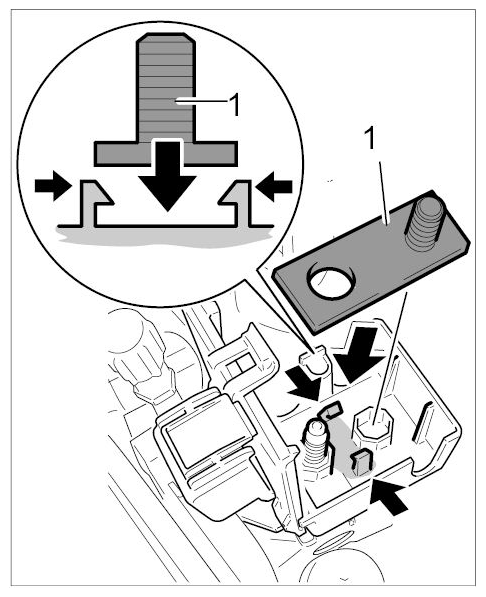

Insert connecting piece for B+ lines -1- and press it in -arrow- until the locking lugs -arrows- engage securely.

Fig 3: Inserting Connecting Piece For B+ Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert B+ lines.

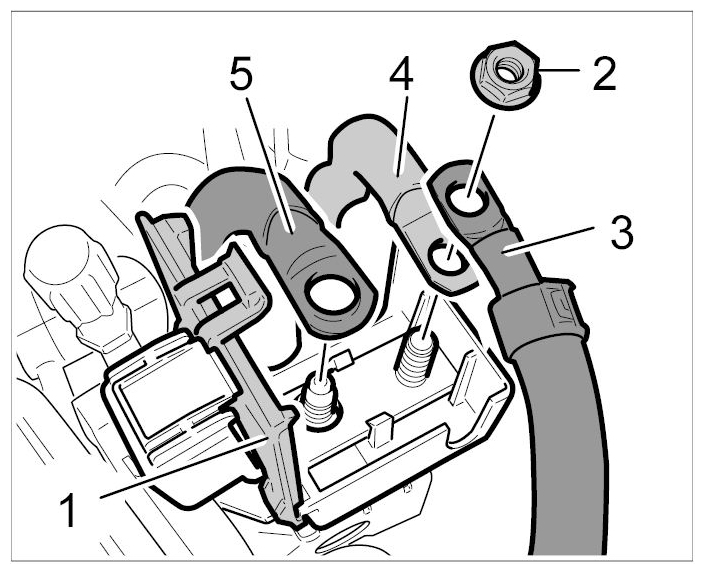

1. 4.1. Insert B+ lines -3, 4 and 5- .
2. 4.2. Tighten fastening nut -2- for B+ lines. → Tightening torque: 10 Nm (7.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.)
3. 4.3. Close cap -1- until the cap -1- is felt to engage.

  Fig 4: Inserting B+ Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

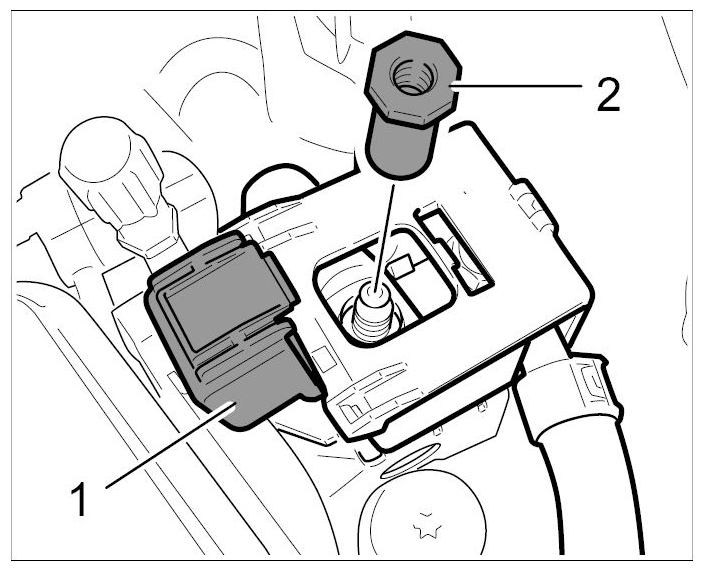

Tighten fastening nut -2- for B+ line and close cap -1- until the cap -1- is felt to engage. → Tightening torque: 20 Nm (15 ftlb.)+/-1 Nm (+/-0.5 ftlb.)
