Removing Wiring Harness For Rear-View Mirror

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

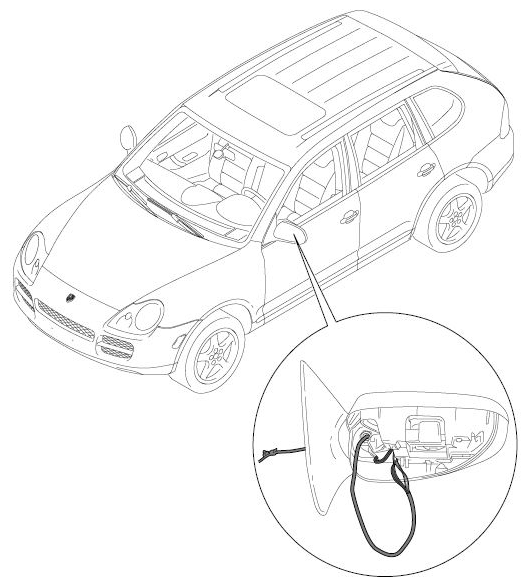

Fig 1: Overview Of Wiring Harness For Rear-View Mirror

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove insulation on mirror base -arrow- .

Fig 2: Removing Insulation On Mirror Base
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold in door mirror.

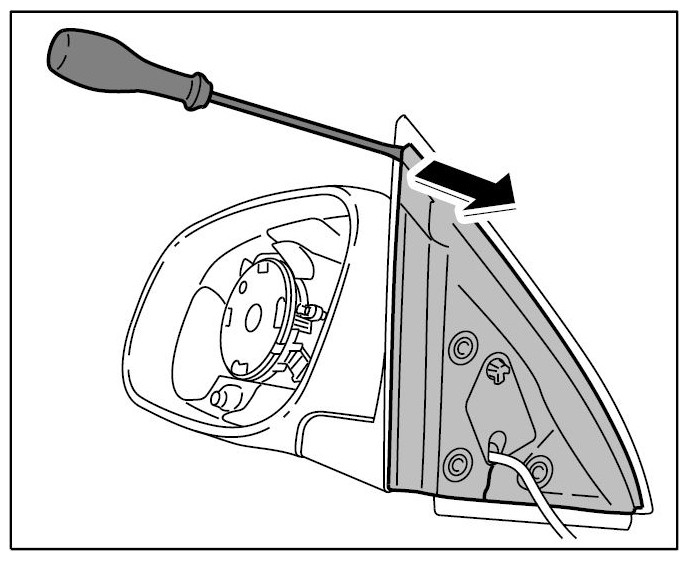

Press locking tabs on upper mirror housing apart with a screwdriver -arrows A- and remove upper mirror housing to the rear -arrows B- .

Fig 3: Detaching Mirror Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the locking tabs (arrows A) and remove the plug connection.
Information

Only for vehicles with a light in the rear-view mirror.

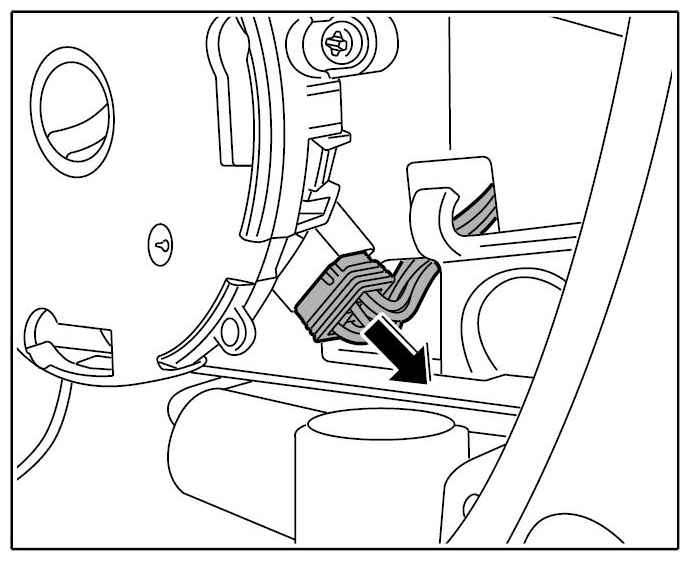

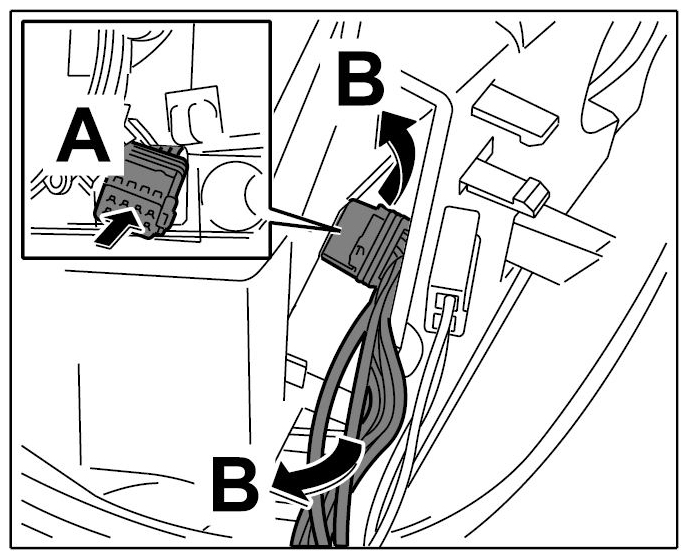

Push the plug connection back -arrow A- and remove it from the bracket -arrow B- .

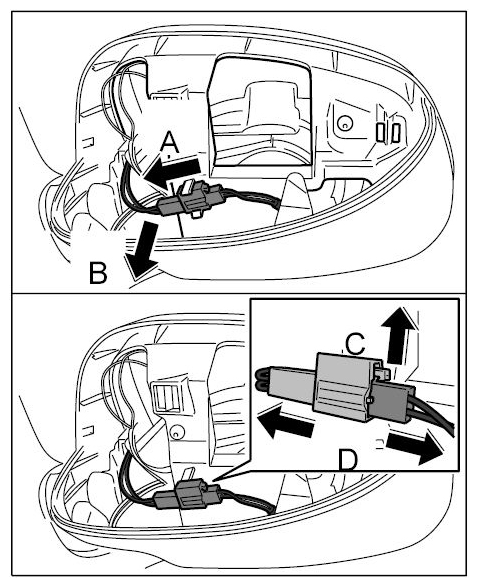

Fig 4: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug connection -arrow C- and disconnect -arrows D- .
Pull the plug connection for the flap motor out of its installation position -arrow A- and disconnect it -arrows B- .

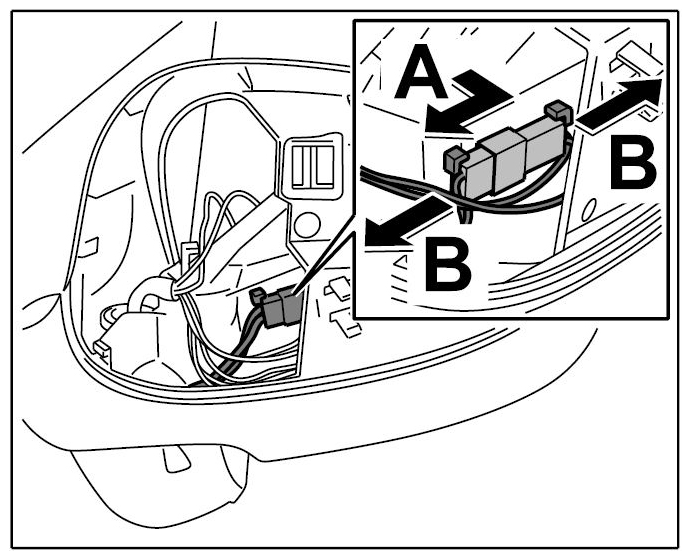

Fig 5: Disconnecting Plug Connection For Flap Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

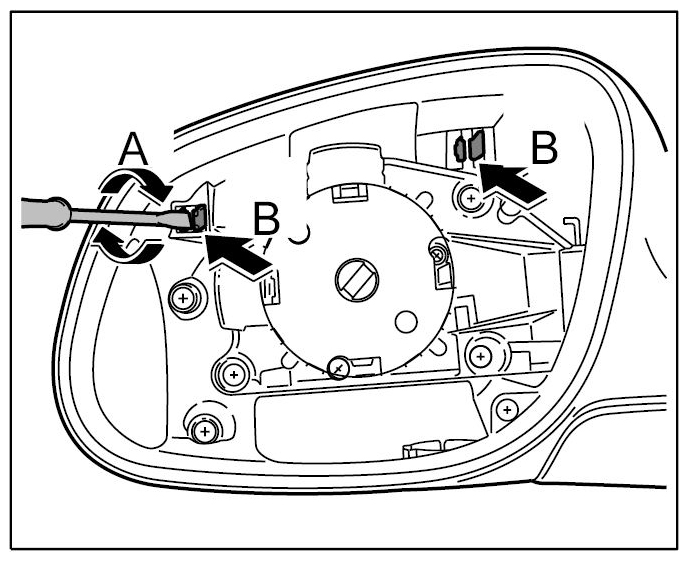

Pull the connector off the mirror adjustment motor -arrow- .

Fig 6: Pulling Connector Off Mirror Adjustment Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the line through the mirror base -arrow A- and pull it out at the front -arrows B- .

Fig 7: Removing Wiring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- When technical modifications are made, wiring colours on plug connections may change. Therefore, before removing the connector contacts from the connector or the connecting socket, do not forget to make a note of the installation position and the colours of the individual wires!

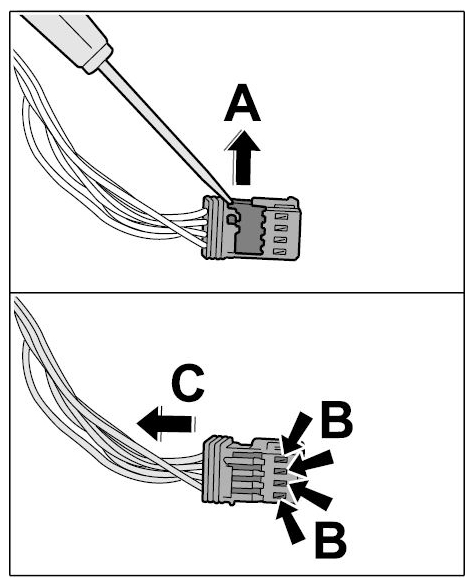

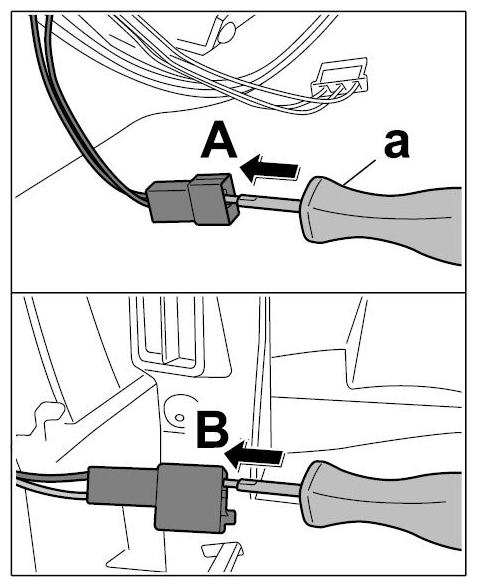

Press out plug contacts from connector housing using press-out and unlocking tools for flat and round plug connections of every size Nr.155 -a- (-arrow A- ).

Fig 8: Pressing Out Plug Contacts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the plug contacts out of the connector housing using press-out and unlocking tools for flat and round plug connections of every size Nr.155 -arrow B- (only for vehicles with a light in the rear-view mirror).
Lever out the fuse using a small screwdriver -arrow A- and remove it -arrows B- .

Fig 9: Removing Fuse And Pulling Off Plug Contacts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the plug contacts and remove from the combination connector -arrow C- .

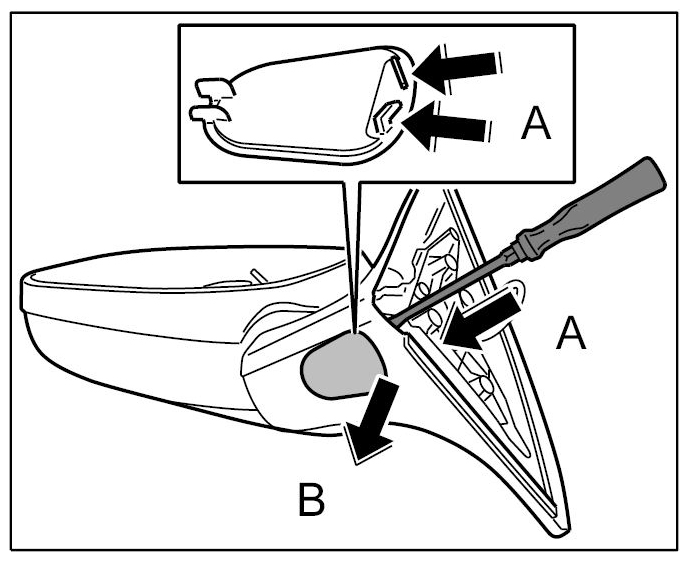

Press in the locking tabs on the cover using a screwdriver -arrows A- and remove the cover -arrow B- .

Fig 10: Releasing Locking Tabs And Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

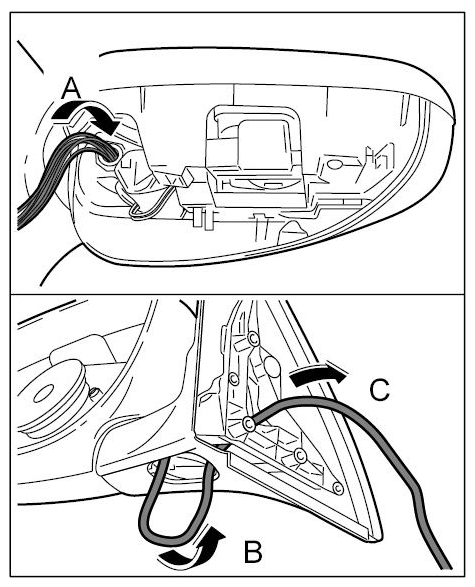

Push the wire harness down through the joint -arrow A- .

Fig 11: Removing Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
First pull the line down -arrow B- and remove it at the mirror base -arrow C- .
