Installing Wiring Harness For Rear-View Mirror

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

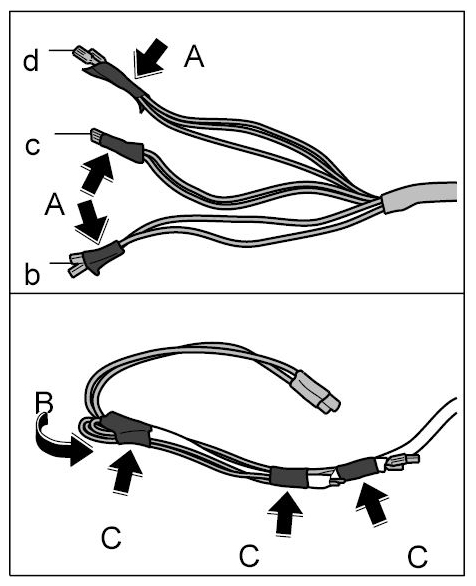

Tie the wires for mirror heating -b- , flap -c- and positioning motor -d- together using fabric or insulating tape -A- .

Fig 1: Securing Wires Together
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold back wires for flap and positioning motor -arrow B- and secure to wiring harness with fabric or insulating tape -C- .
Information
- To minimise the thickness of the cable, tighten the wires at different places on the wiring harness.

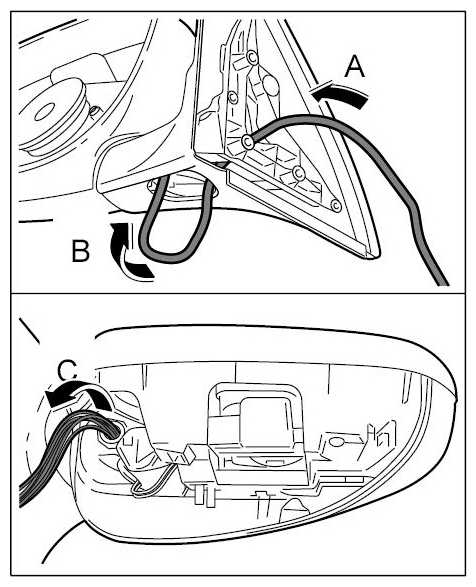

Slide the wiring harness for the mirror-heating wires from the inside through the mirror base -arrow A- .

Fig 2: Inserting Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the wiring harness downwards -arrow B- , then up and out through the flap joint -arrow C- .
Information
- When connecting the plug contacts, make sure the order of the wires is correct in the combination connector!

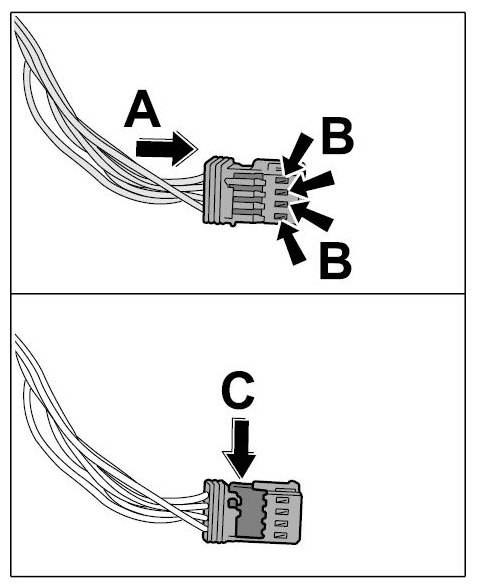

Insert the wires 1 - 7 for the positioning motor into the combination connector -arrow A- until the plug contacts are felt to engage.

Fig 3: Inserting Wires For Positioning Motor Into Combination Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in the fuse -arrows B- until you feel the locking tabs engage.
Information

The wires -10- and -11- are only available for vehicles that have a light in the rear-view mirror.

Fig 4: Identifying Wiring For Vehicles With Light In Rear-View Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

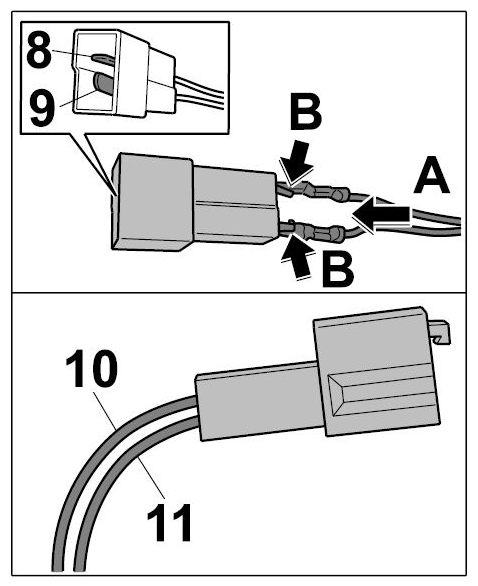

Insert the wires for the flap motor into the combination connector until the locking tabs of plug contacts -8 and 9- are felt to engage -arrows B- .

Fig 5: Inserting Wires For Flap Motor Into Combination Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the wires -10 and 11- until you feel the locking tabs engage.

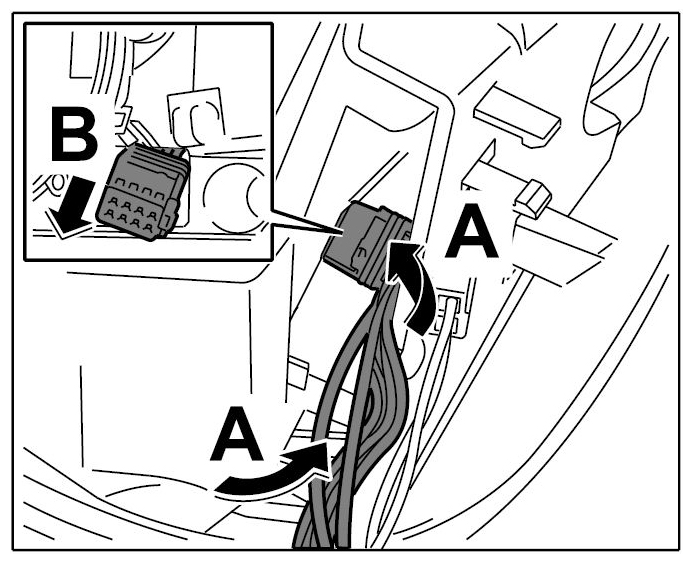

Push the wiring through the mirror base -arrows A- and pull it out at the inside -arrow B- .

Fig 6: Pushing Wiring Through Mirror Base
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

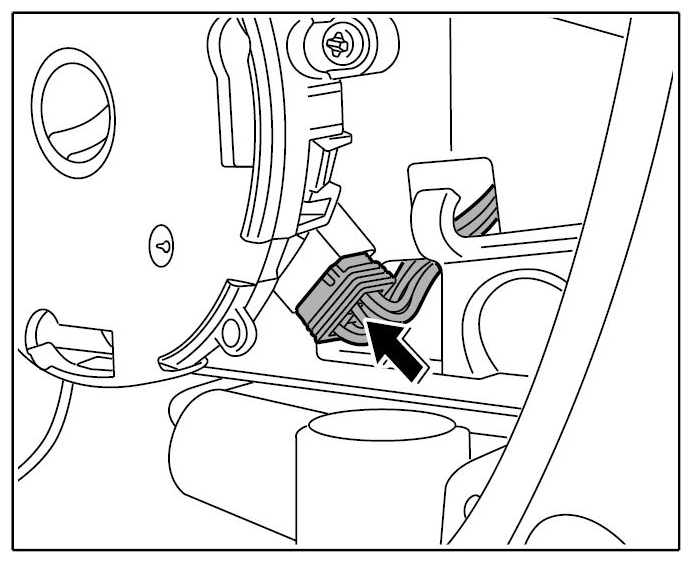

Connect the connector on the mirror adjusting motor -arrow- until the connector lock is felt to engage.

Fig 7: Connecting Connector On Mirror Adjusting Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

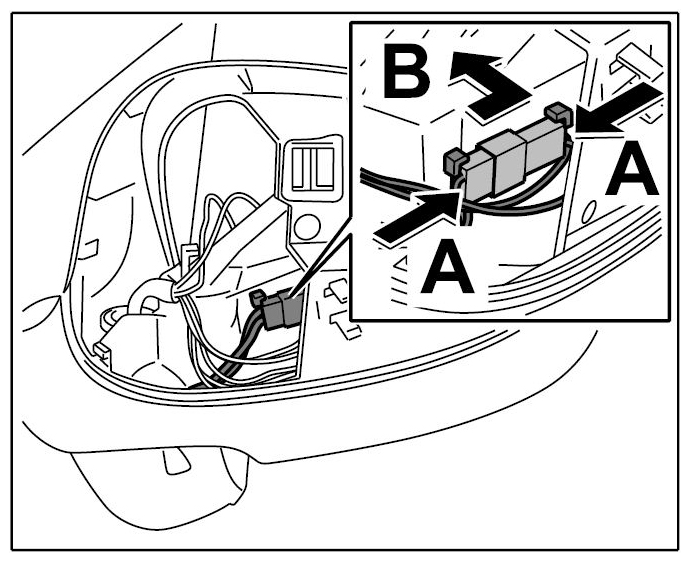

Push together plug connection for fold-in motor -arrows A- and press onto adhesive point of mirror holder -arrow B- .

Fig 8: Connecting Plug Connection For Fold-In Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

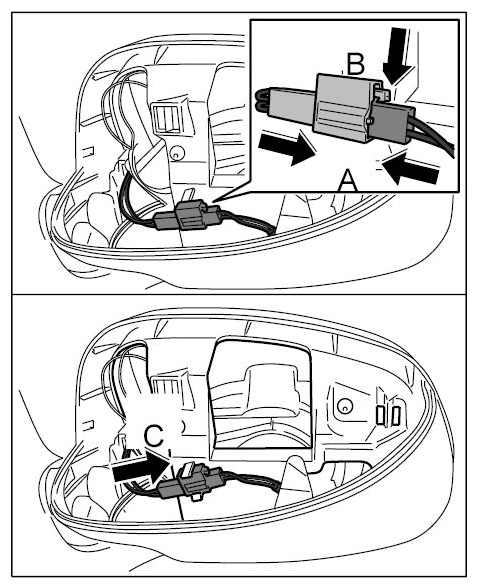

Push plug connection together -arrows A- until the locking lug -arrow B- is felt to engage.

Fig 9: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the plug connection into the holder -arrow C- until it is felt to engage.

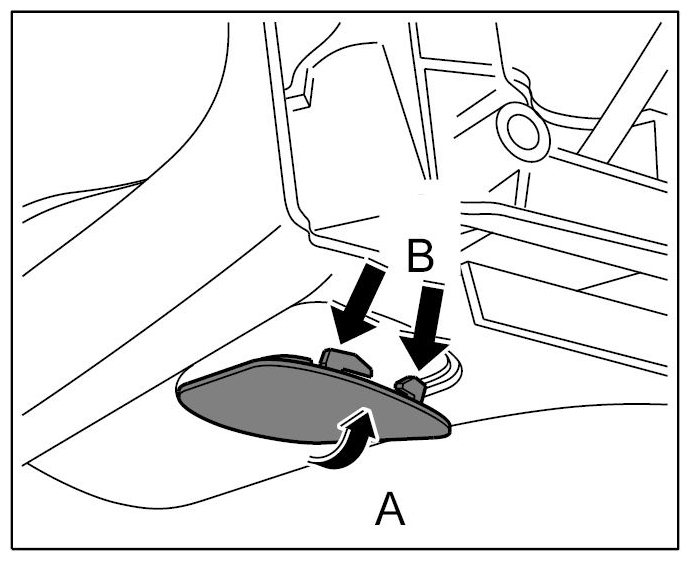

Engage the cover and fold upwards -arrow A- until the locking tabs -arrows B- are felt to engage.

Fig 10: Installing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

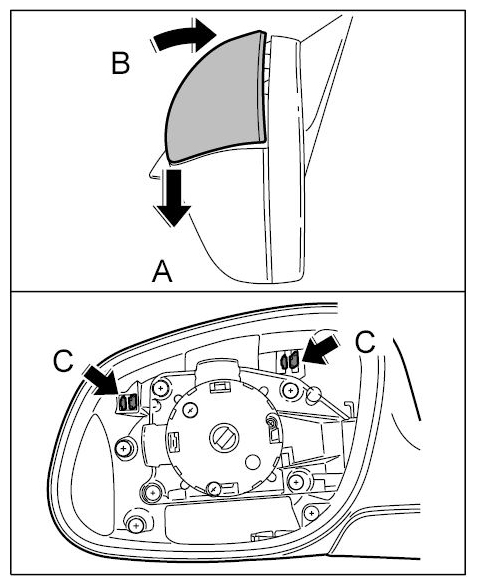

Engage upper mirror housing in lower mirror housing -arrow A- and fold onto mirror cover -arrow B- until the locking tabs -arrows C- are felt to engage.

Fig 11: Installing Upper Mirror Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

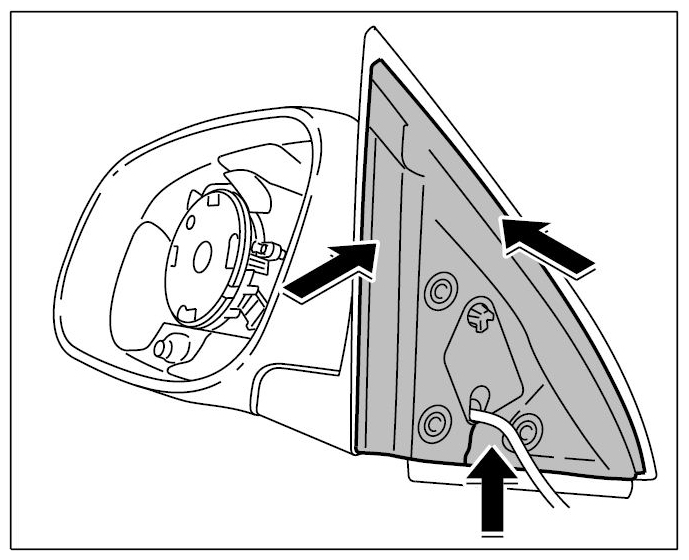

Install insulation on mirror base.

Fig 12: Installing Insulation On Mirror Base
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
