Removing Wiring Harness, Right Side Of Vehicle To Lid Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The styrofoam element is glued in.
Carefully release styrofoam element.
Replace damaged styrofoam elements.

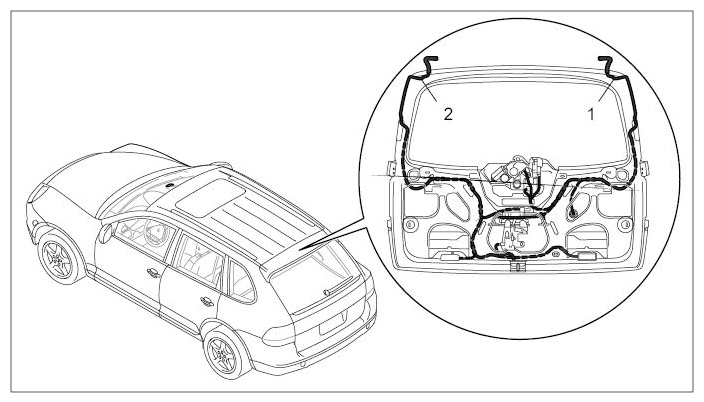

Fig 1: Overview Of Wiring Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- - Wiring harness, left
-2- - Wiring harness, right

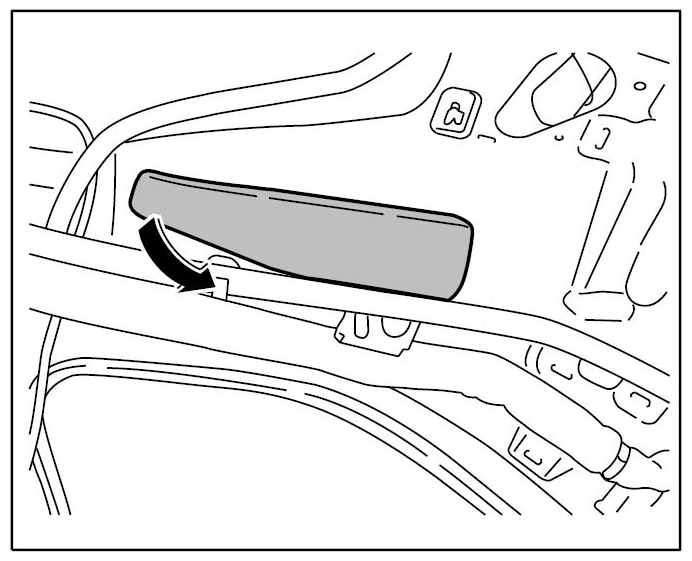

Loosen, compress and remove styrofoam element -arrow- .

Fig 2: Removing Styrofoam Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

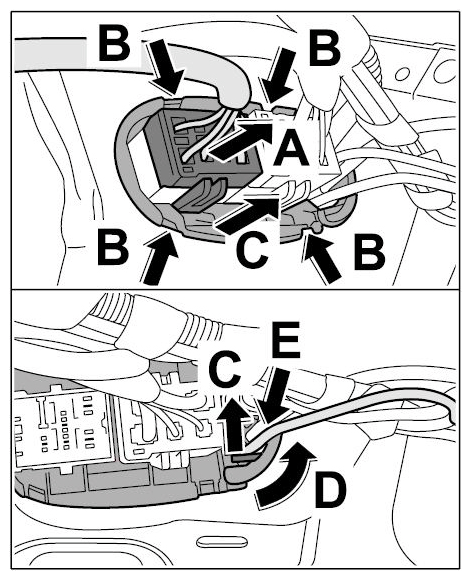

Pull off blue connector -Arrow A- .

Fig 3: Pulling Off Connector And Removing Socket Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release support for socket -Arrows B- and remove it -Arrow C- .

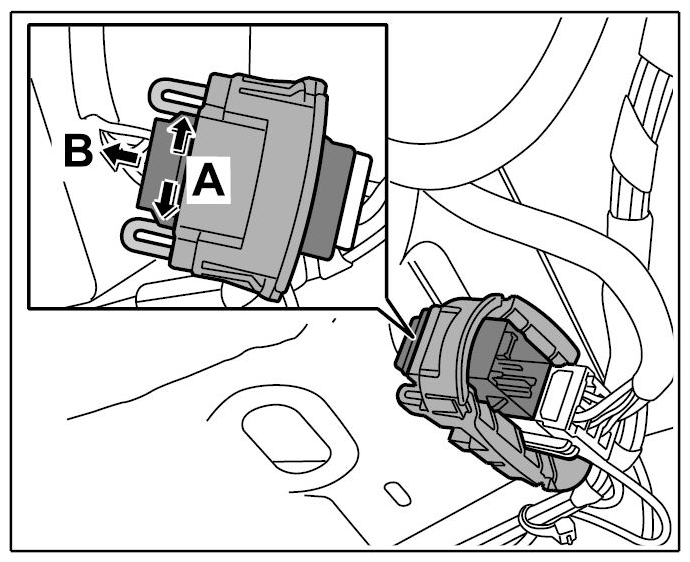

Release blue socket -Arrows A- and pull it out -Arrow B- .

Fig 4: Pulling Out Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

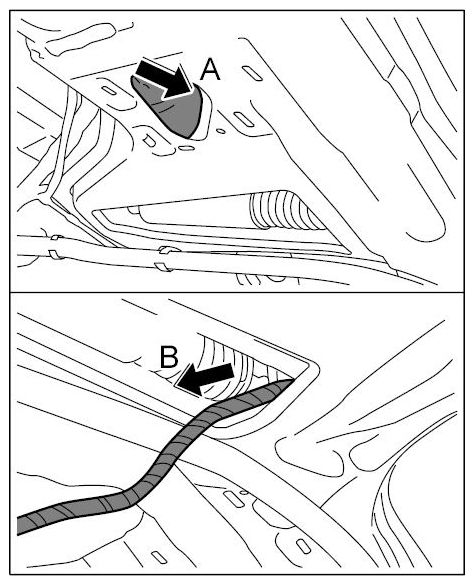

Press out the front rubber sleeve -Arrow A- and remove the line -Arrow B- .

Fig 5: Removing Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
