Removing Wiring Harness, Right Side Of Tailgate To Lid Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

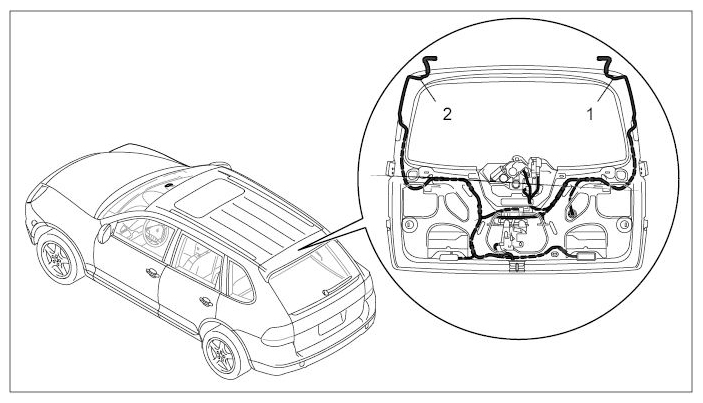

Fig 1: Overview Of Wiring Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- - Wiring harness, left
-2- - Wiring harness, right

Release connector on rear lid lock -Arrows A- and remove it -Arrow B- .

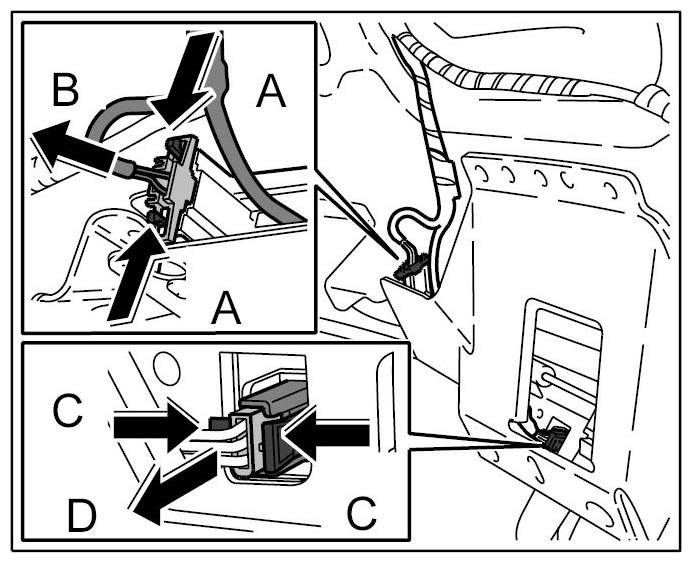

Fig 2: Removing Connector On Rear Lid Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector on contact switch -Arrows C- and remove it -Arrow D- .
Unclip wiring harness -Arrows A- .

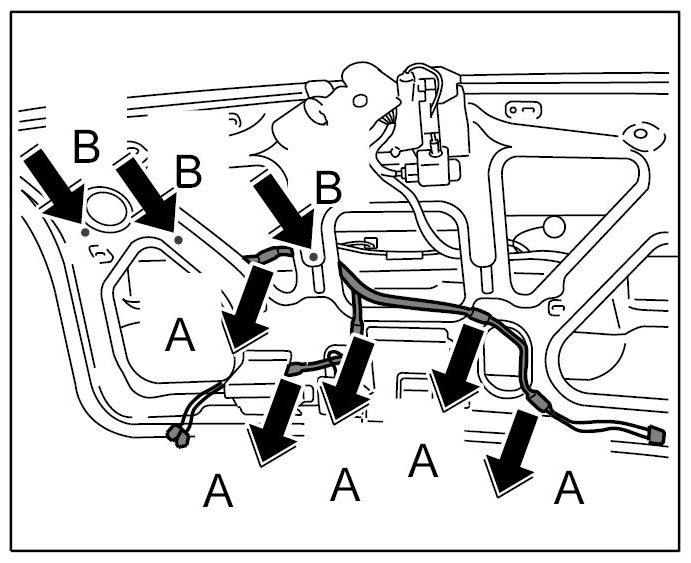

Fig 3: Unclipping Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press out clips inwards -Arrows B- .
Remove rubber sleeve on window frame -Arrow A- .

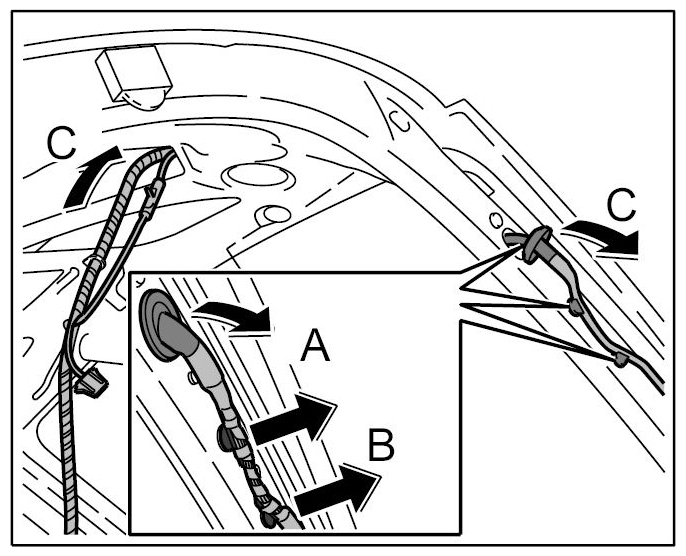

Fig 4: Releasing And Pulling Out Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip wiring harness on window frame -Arrows B- and remove it.
Remove wiring duct from hinge -Arrow A- .

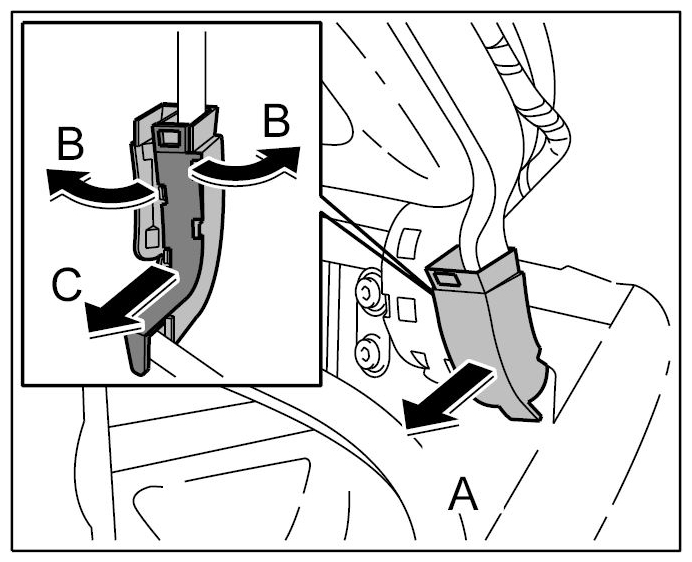

Fig 5: Opening Wiring Duct And Remove Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open wiring duct -Arrows B- , remove cover -Arrow C- and take out wiring harness.
