Removing Wiring Harness, Left Side Of Vehicle To Lid Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The styrofoam element is glued in.
Carefully release styrofoam element.
Replace damaged styrofoam elements.

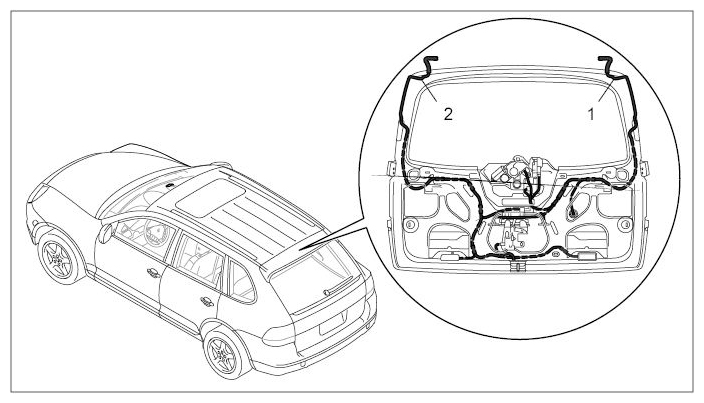

Fig 1: Overview Of Wiring Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- - Wiring harness, left
-2- - Wiring harness, right

Loosen, compress and remove styrofoam element -Arrow A- .

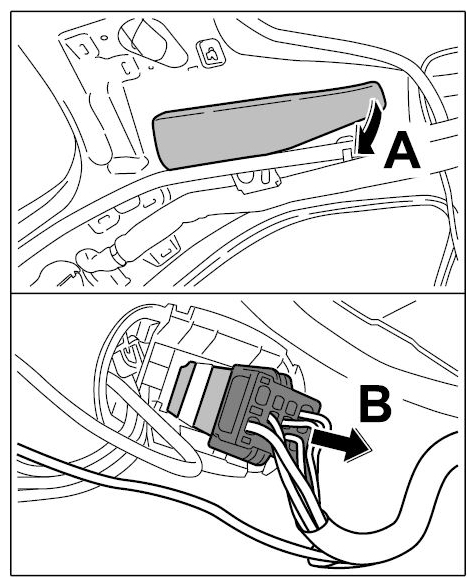

Fig 2: Removing Styrofoam Element And Pulling Off Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off pink connector -Arrow B- .
Unscrew fastening nut -Arrow 1- and remove ground strap together with torsion protection -a- from ground pin.

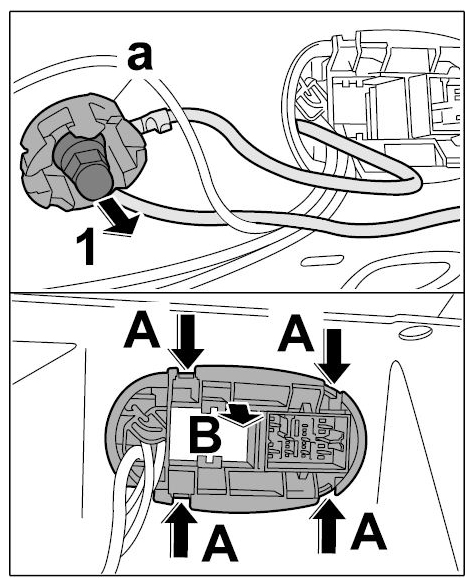

Fig 3: Loosening Ground Strap And Removing Support For Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release support for socket -Arrows A- and remove from opening -Arrow B- .
Release pink socket -Arrows A- and press it out -Arrow B- .

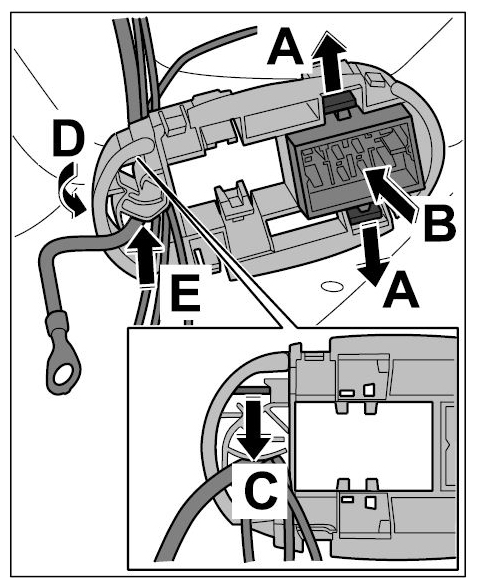

Fig 4: Pressing Out Socket And Loosening Ground Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release support -Arrow C- , open it -Arrow D- and remove ground strap -Arrow E- .
Press out rubber sleeve -Arrow A- and remove line to pneumatic spring housing.

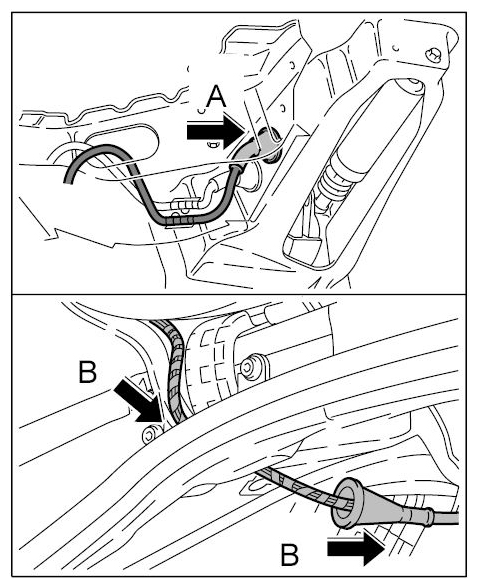

Fig 5: Pulling Out Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull wiring harness inside -Arrows B- . As space is limited, push the connectors individually past the rear lid hinge.
