Removing Wiring Harness, Left Side Of Tailgate To Lid Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

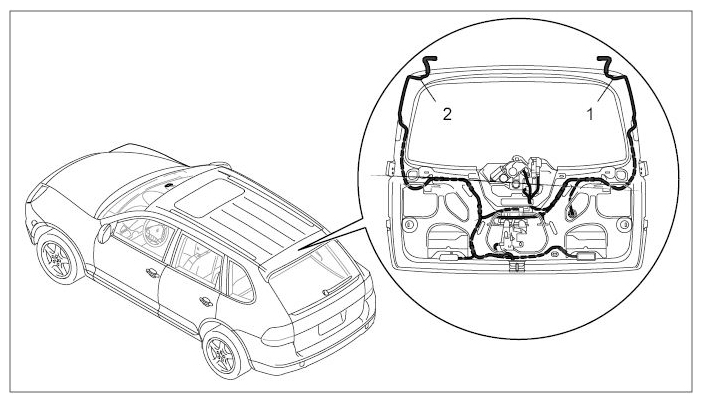

Fig 1: Overview Of Wiring Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- - Wiring harness, left
-2- - Wiring harness, right

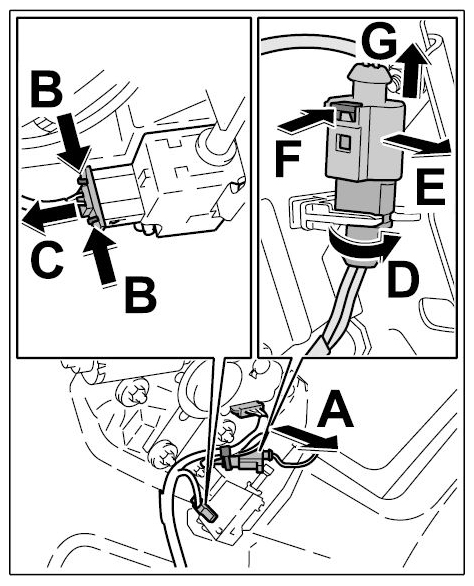

Pull off connector on rear window wiper -Arrow A- .

Fig 2: Pulling Off Connector On Rear Window Wiper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector -Arrows B- and remove from lock lower part on rear window -Arrow C- .
Turn plug connection through approx. 90° -Arrow D- and remove from clip -Arrow E- .
Release connector -Arrow F- and disconnect plug connection of contact switch for rear window -Arrow G- .

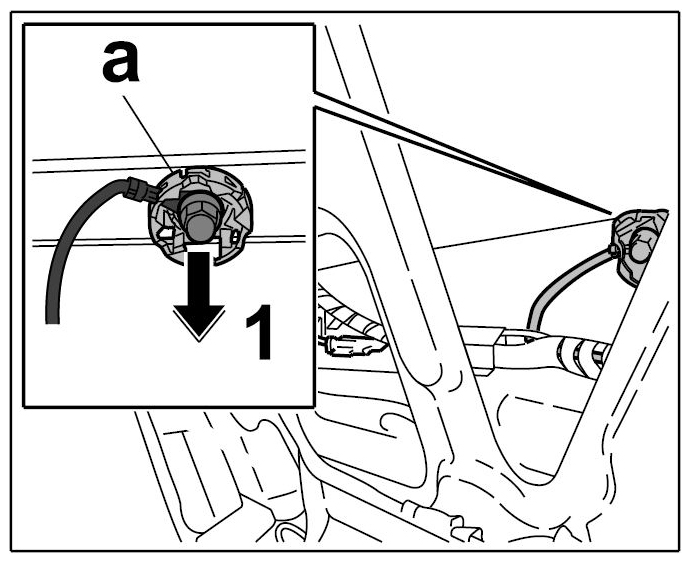

Unscrew fastening nut -Arrow 1- and remove ground strap together with torsion protection -a- .

Fig 3: Unscrewing Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

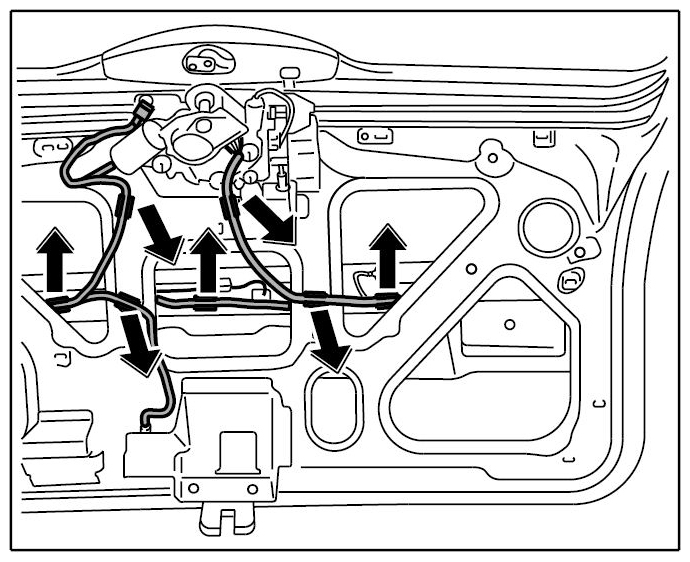

Unclip wiring harness -arrows- .

Fig 4: Unclipping Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

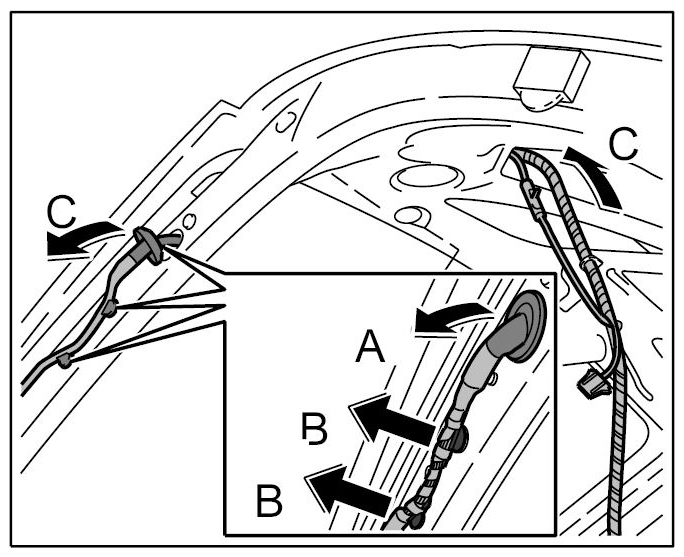

Remove rubber sleeve on window frame -Arrow A- .

Fig 5: Removing Wiring Harness On Window Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip wiring harness on window frame -Arrows B- and remove it -Arrows C- .

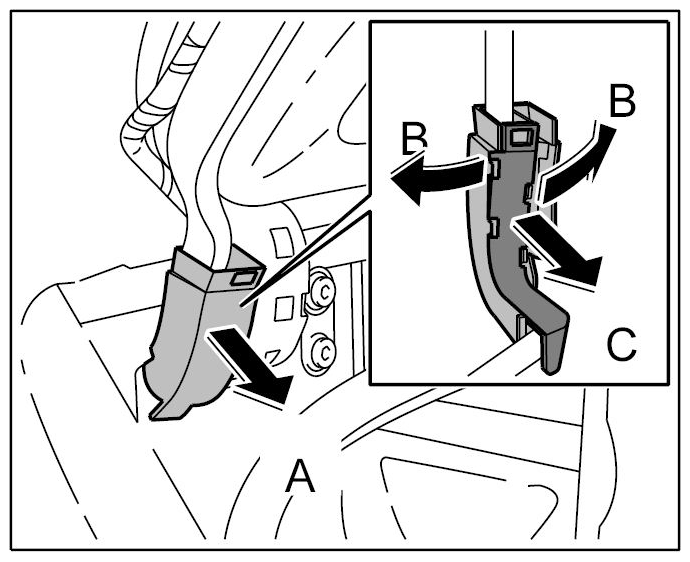

Remove wiring duct from hinge -Arrow A- .

Fig 6: Removing Wiring Duct From Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open wiring duct -Arrows B- , take off cover -Arrow C- and remove wiring duct from wiring harness.
