Removing Wire Harness For Rear Window, Left

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

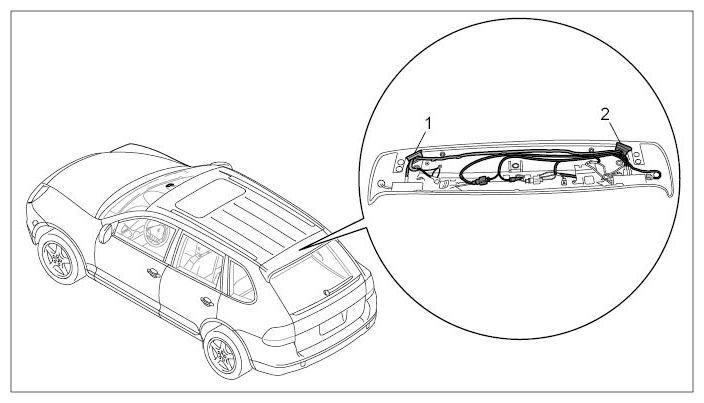

Fig 1: Identifying Wire Harness For Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness, left
Wire harness, right

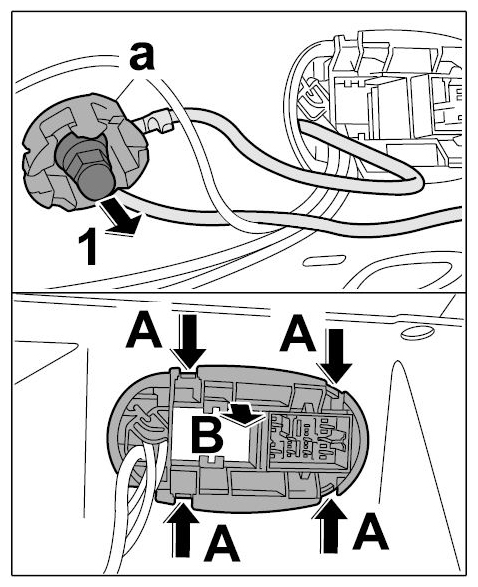

Unscrew fastening nut -arrow 1- and remove ground strap together with torsion protection -a- from ground pin.

Fig 2: Loosening Ground Strap And Removing Support For Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release support for socket -arrows A- and remove from opening -arrow B- .
Release -arrows A- and press out the pink socket -arrow B- .

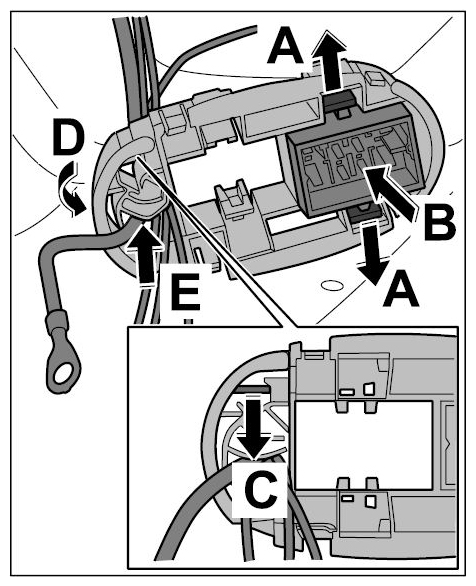

Fig 3: Loosening Socket And Removing Ground Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release support -arrow C- , open it -arrow D- and remove ground strap -arrow E- .

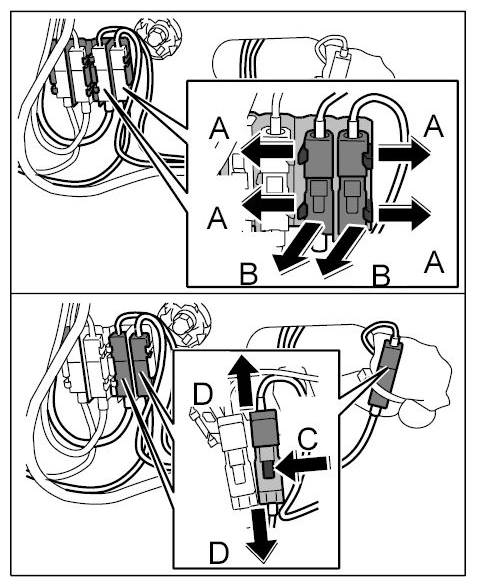

Release bracket -arrows A- and remove both plug connections -arrows B- .

Fig 4: Disconnecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug connections -arrow C- and disconnect -arrows D- .

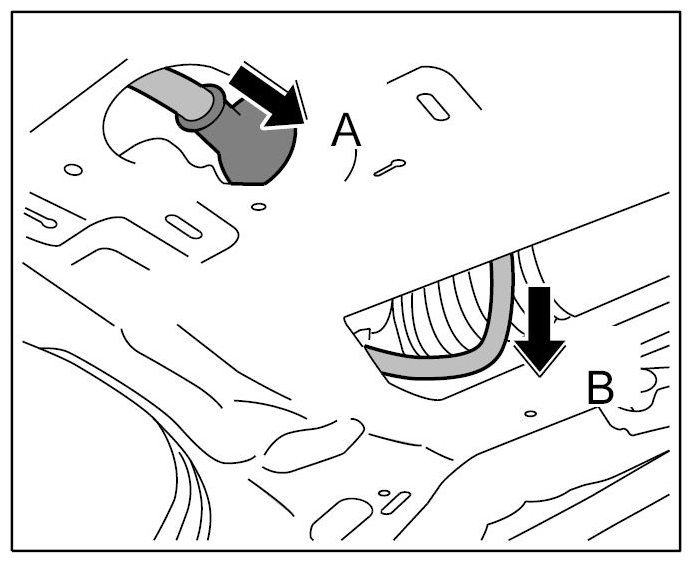

Press out rubber sleeve -arrow A- and remove wire harness in a downward direction through pneumatic spring housing -arrow B- .

Fig 5: Pulling Out Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

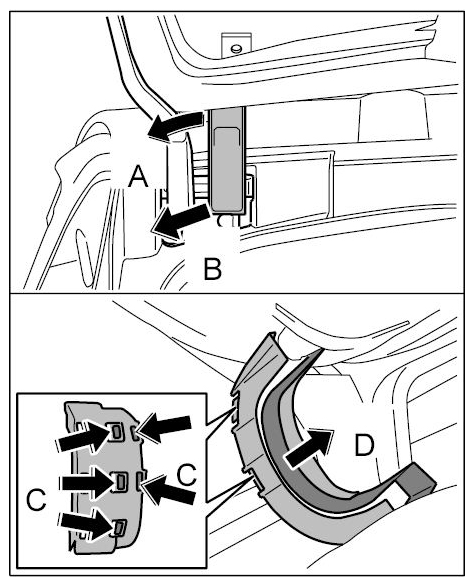

Release wiring duct -arrow A- and remove it from hinge -arrow B- .

Fig 6: Removing Wiring Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release cover -arrows C- , take it off the wiring duct -arrow D- and remove wiring duct from wire harness.

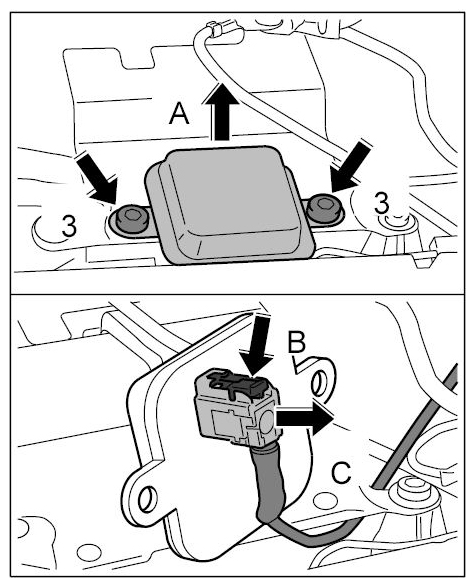

Undo fastening screws -arrows 3- and remove GPS sensor -arrow A- .

Fig 7: Removing GPS Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector -arrow B- and disconnect it from the GPS sensor -arrow C- .

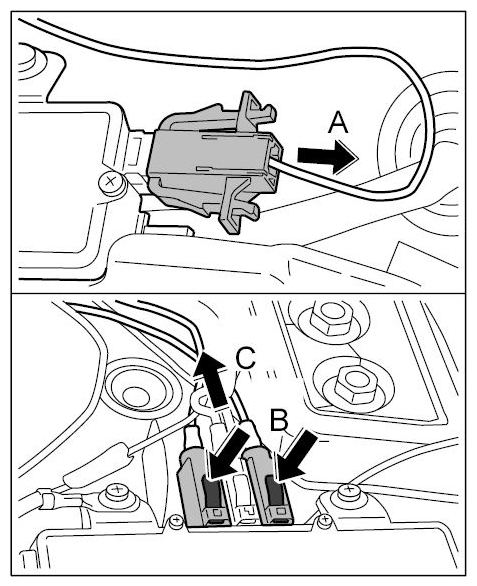

Pull off connector on right antenna amplifier -arrow A- .

Fig 8: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen the adhesive tape -arrows B- , then release both antenna plugs -arrows C- and pull them off.
Information
- Only for vehicles with telephone antenna!

  Fig 9: Identifying Vehicles With Telephone Antenna
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove left antenna amplifier. → Removing Antenna Amplifier

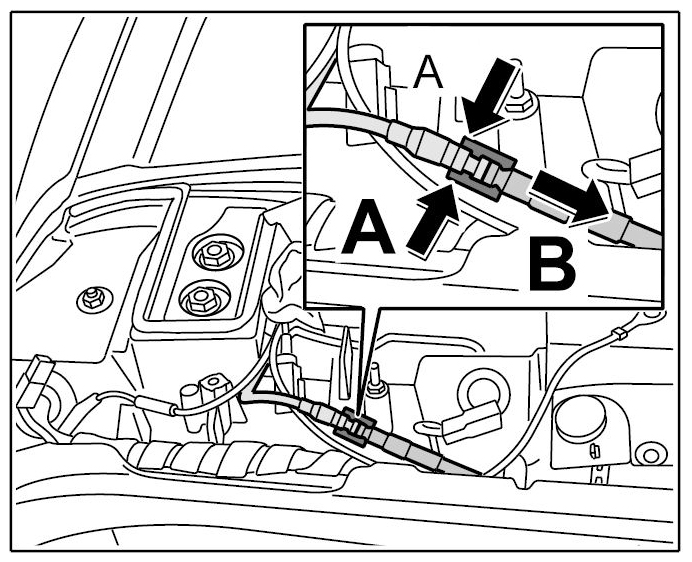

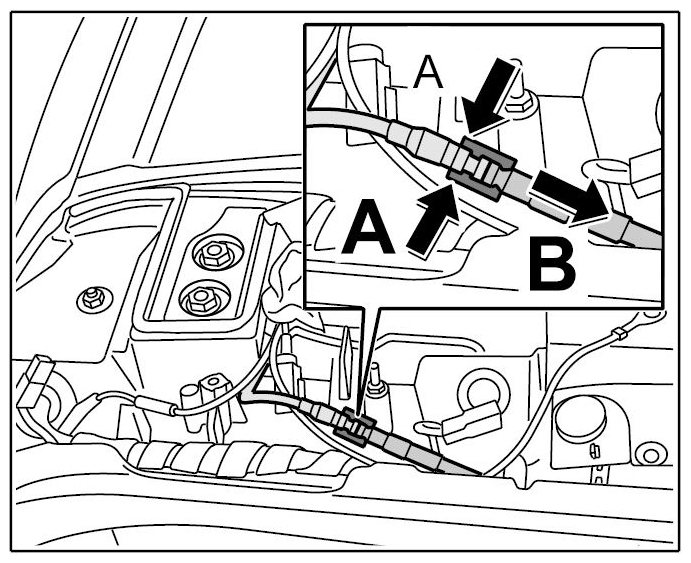

Release the lock -arrows A- and pull off the telephone antenna plug -arrow B- .

Fig 10: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

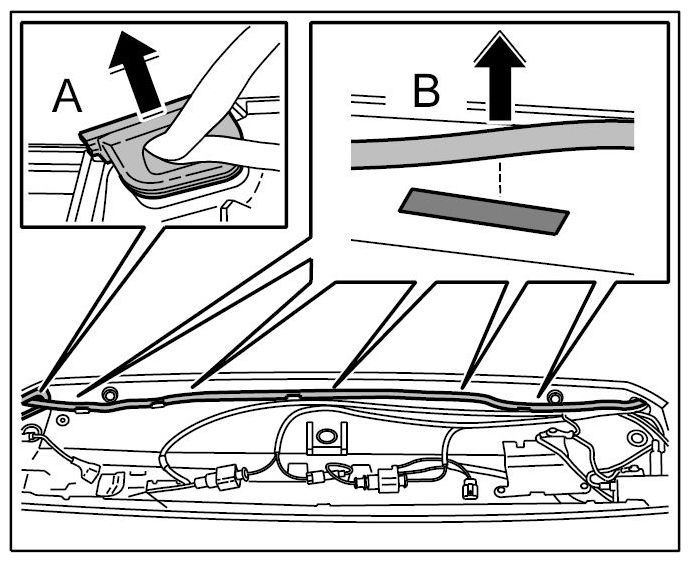

Remove rubber sleeve from rear spoiler -arrow A- .

Fig 11: Removing Line In Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off line from Velcro strip segments -arrow B- and remove.

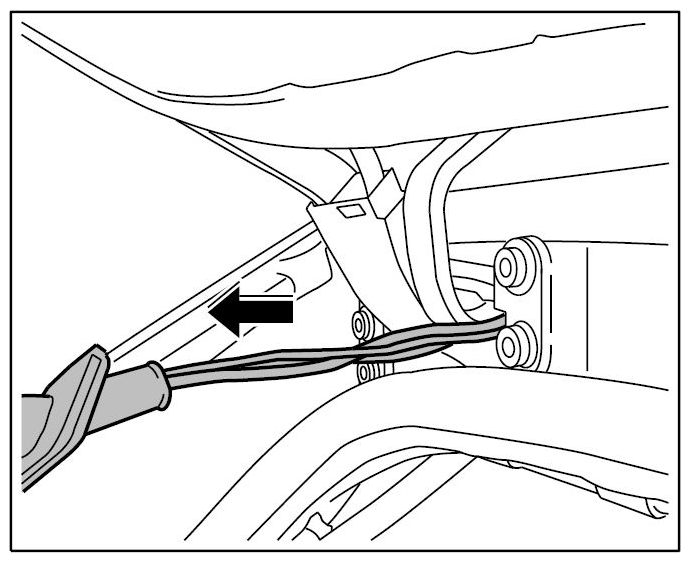

Remove complete wire harness on hinge to the rear -arrow- .

Fig 12: Removing Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
