Installing Wiring Harness For Rear Window, Right

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

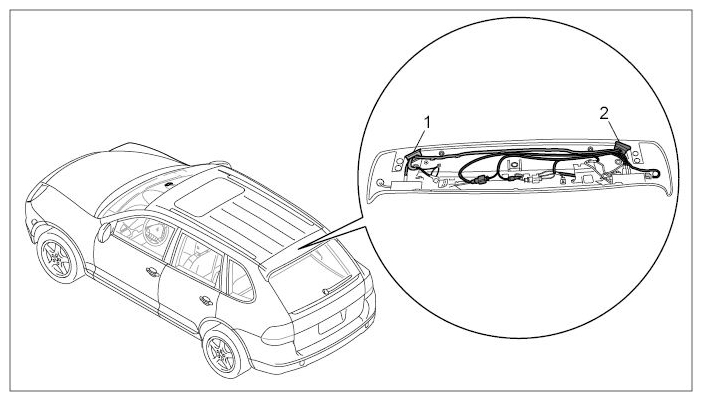

Fig 1: Identifying Wire Harness For Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wiring harness, left
Wiring harness, right

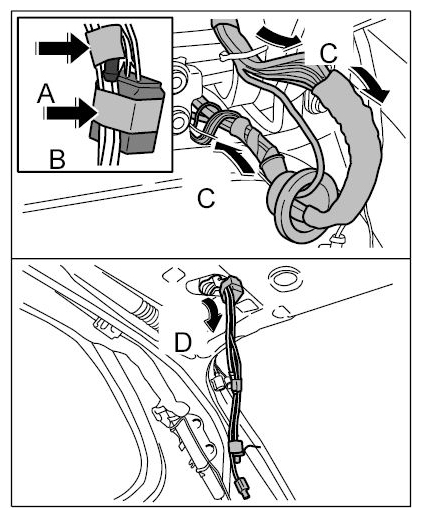

Tie water line and the individual lines together with fabric tape -A- .

Fig 2: Tying Lines Together
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure lines with fabric tape to the flat side -arrow B- of the combination plug.
Push wire harness along hinge through pneumatic spring housing -arrows C- .
Pull out wire harness in a downward direction -arrow D- . If necessary, push lead from the outside.
Information
- When installing the wire harness, make sure the insulation of the line is not damaged.
Remove fabric tape and lay leads to the connection points.

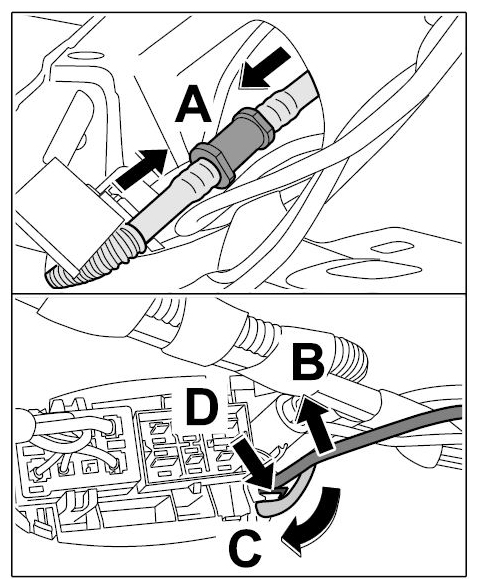

Join up water line -arrows A- until it is felt to engage.

Fig 3: Installing Water Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert lines and water line into support -arrow B- , then close support -arrow C- until locking tab -arrow D- is felt to engage.

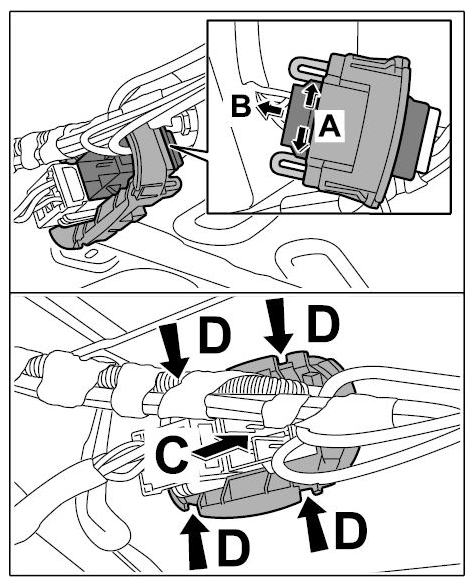

Push socket into socket support -arrow B- until locking tabs -arrows A- are felt to engage.

Fig 4: Installing Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in support for socket -arrow C- until locking tabs -arrows D- are felt to engage.

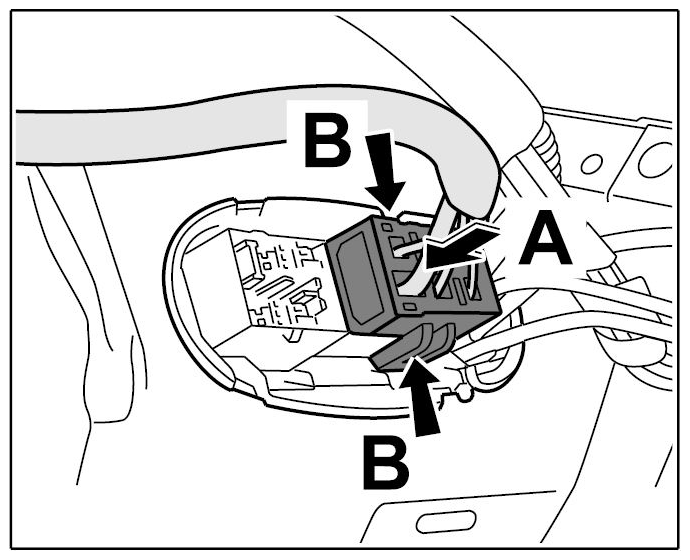

Insert connector -arrow A- until locking tabs -arrows B- are felt to engage.

Fig 5: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

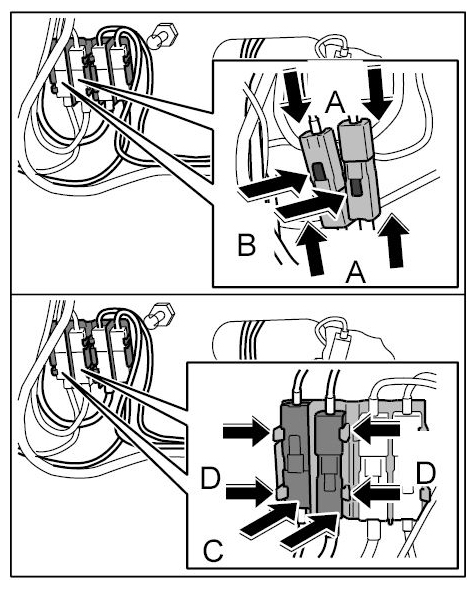

Connect both plug connections -arrows A- until locking tabs -arrows B- are felt to engage.

Fig 6: Connecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press plug connections into support -arrows C- until locking tabs are felt to engage -arrows D- .

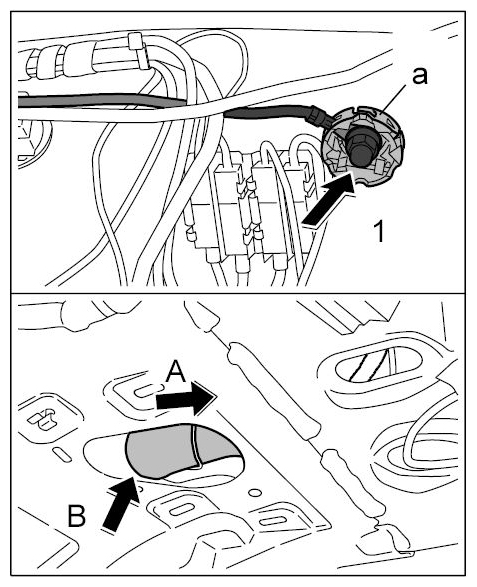

Screw down ground strap together with twist lock -a- to ground pin -arrow 1- .

Fig 7: Screwing Down Ground Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull in rubber sleeve -arrow A- until it is felt to engage in opening -arrow B- .

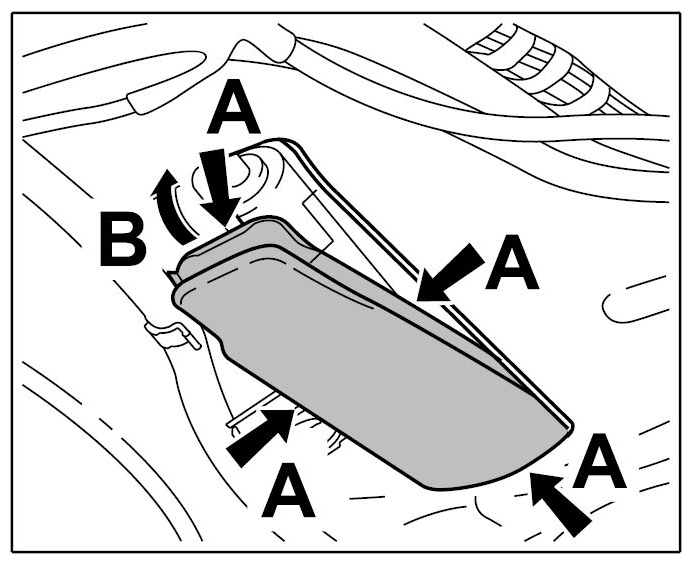

Apply adhesive sealant to edges -arrows A- and press in Styrofoam element -arrow B- until it is felt to engage in the opening.

Fig 8: Installing Styrofoam Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

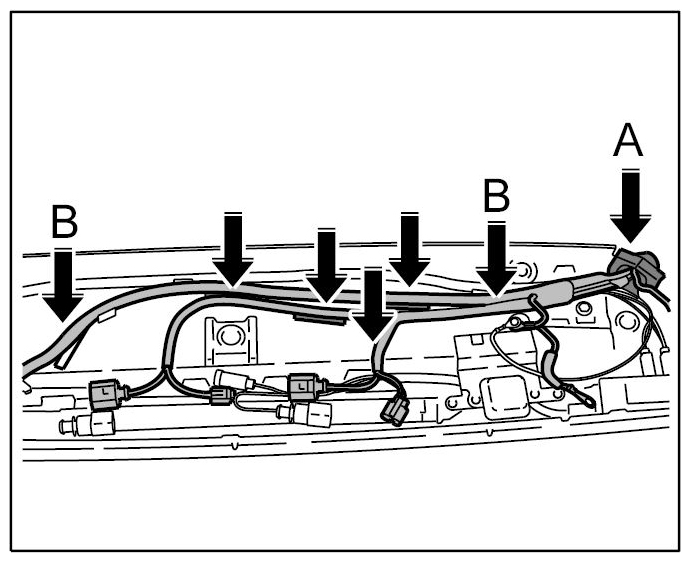

Press rubber sleeve into rear spoiler -arrow A- .

Fig 9: Installing Wire Harness In Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position wire harness in rear spoiler and press onto Velcro strip segments -arrows B- .

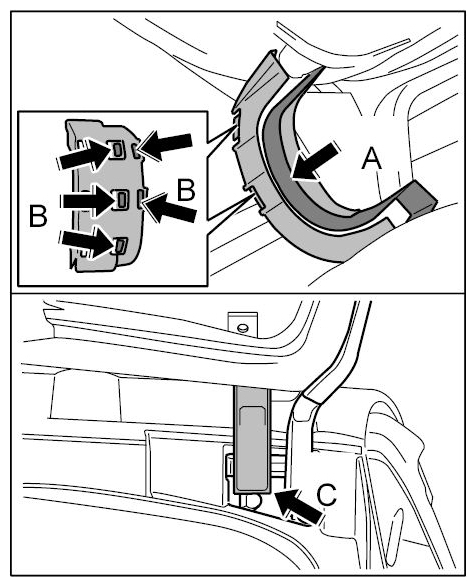

Lay wire harness in wiring duct and push on cover -arrow A- until locking tabs -arrows B- are felt to engage.

Fig 10: Installing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push wiring duct onto hinge -arrow C- until locking tabs are felt to engage.

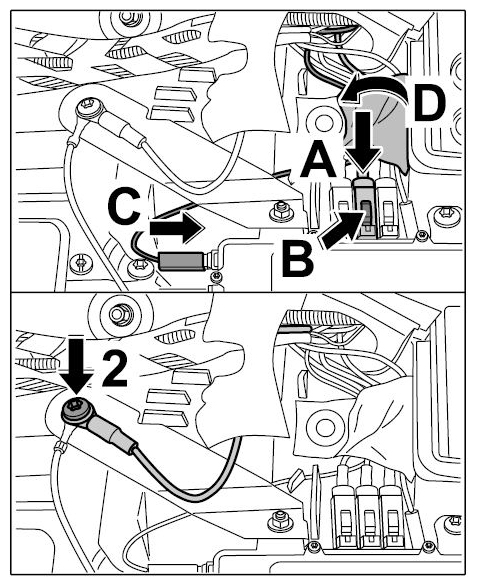

Insert antenna plug -arrow A- until locking mechanism -arrow B- is felt to engage.

Fig 11: Connecting Antenna Amplifier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect red line to B+ connection of right antenna amplifier -arrow C- .
Tighten ground strap with fastening screw -arrow 2- .

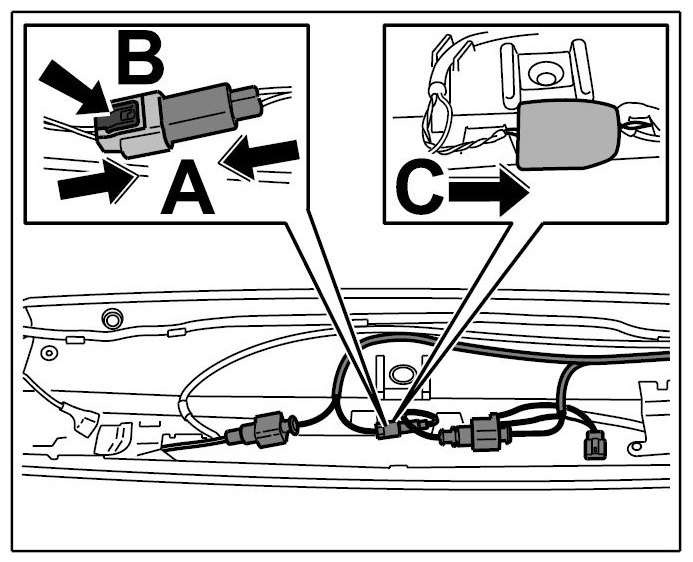

Push plug connection together -arrows A- until the locking lug -arrow B- is felt to engage.

Fig 12: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push Styrofoam element over plug connection -arrow C- .

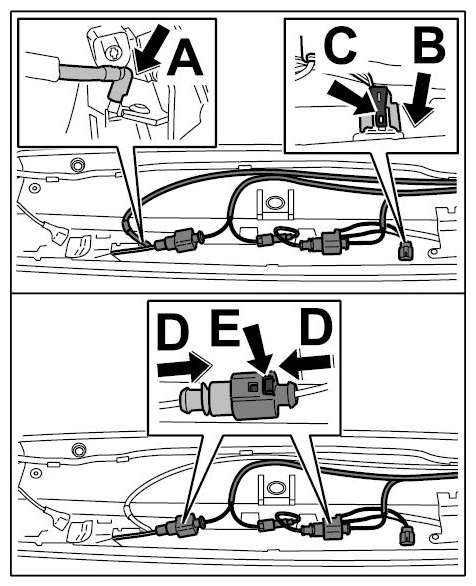

Connect water line to windscreen washer nozzle -arrow A- until it is felt to engage.

Fig 13: Connecting Water Line To Windscreen-Washer Nozzle And Inserting Brake Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach plug onto brake light -arrow B- until locking tab -arrow C- is felt to engage.
Connect plug connections -arrows D- until locking tabs -arrow E- are felt to engage.
