Removing Wire Harness For Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

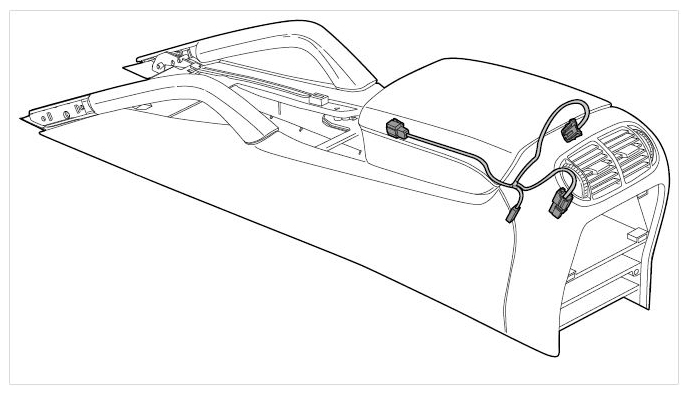

Fig 1: Installation Position Of Wire Harness For Centre Console
G09416237Courtesy of PORSCHE CARS NORTH AMERICA, INC.

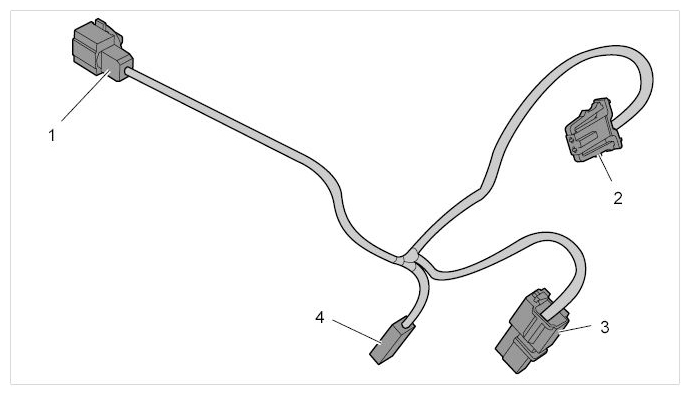

Fig 2: Overview Of Wire Harness For Centre Console
G09416238Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Connector for main wire harness
  2. Connector for light in oddments tray
  3. Connector for vent for centre console
  4. Connector for contact switch for glove compartment light
  1. Remove light in oddments tray.
    1. 1.1. Lever out the light in the oddments tray using a screwdriver -Arrow A-  and remove it.

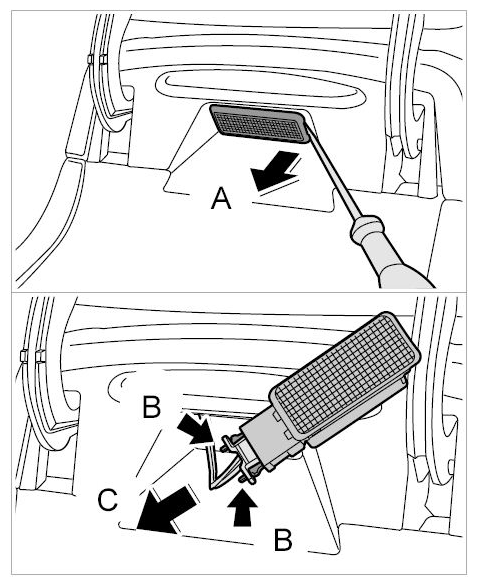

      Fig 3: Removing Light In Oddments Tray
      G09416239Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Release the connector -Arrows B-  and pull it off -Arrow C-  .
  2. Unscrew fastening screws -1-  .

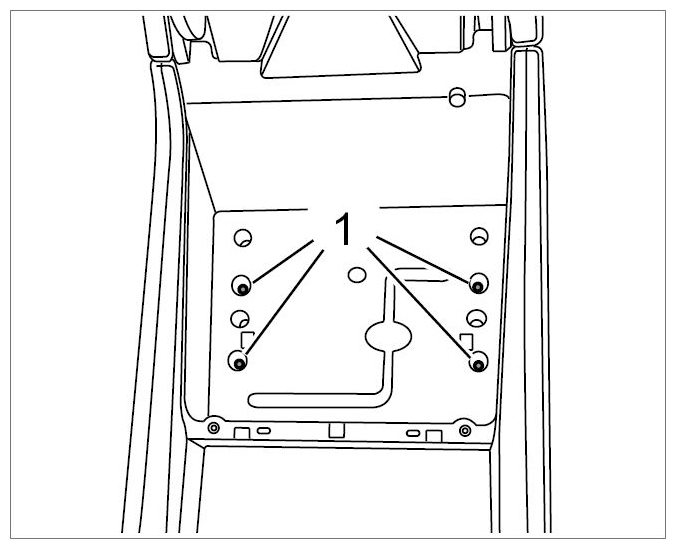

    Fig 4: Loosening Oddments Tray
    G09416240Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove the centre console vent. → Removing Vent
  4. Unscrew fastening screws -1-  and remove air duct in a downward direction -Arrow-  .

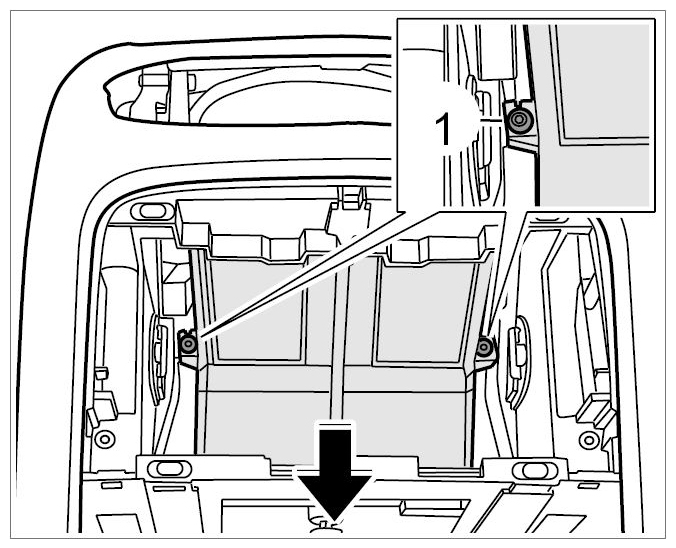

    Fig 5: Removing Air Duct In Centre Console
    G09416241Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove contact switch in oddments tray.

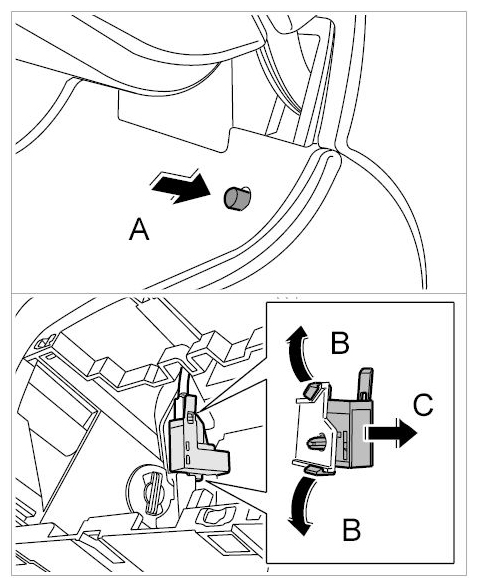

    Fig 6: Removing Contact Switch For Centre Console Light
    G09416242Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 5.1. Press in contact switch -Arrow A-  .
    2. 5.2. Release the contact switch with a small screwdriver -Arrows B-  and take it out of the bracket -Arrow C-  .
  6. Release the connector -Arrow A-  and pull off the contact switch -Arrow B-  .

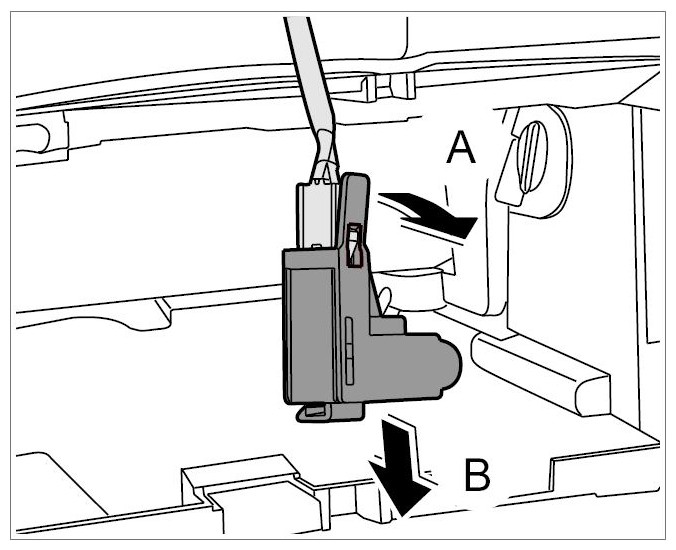

    Fig 7: Disconnecting Contact Switch For Centre Console
    G09416243Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Carefully press the frame down using a screwdriver -Arrow A-  and remove the wire harness -Arrows B-  .

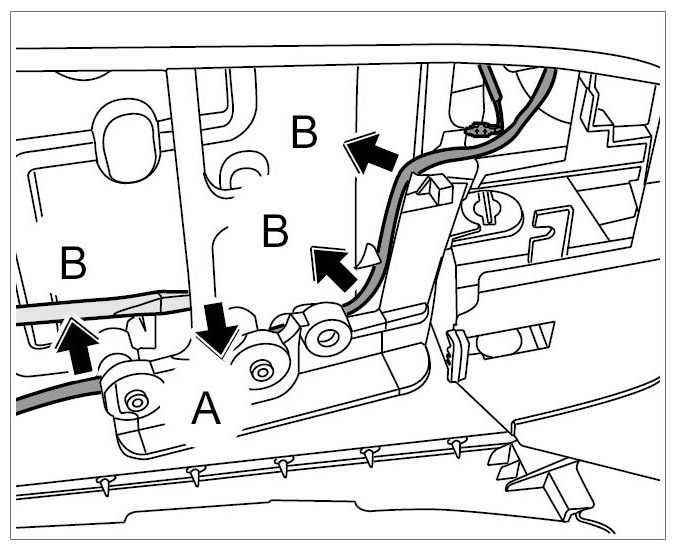

    Fig 8: Removing Wire Harness For Centre Console
    G09416244Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Release the socket -Arrow A-  and pull it off the clip -Arrow B-  .

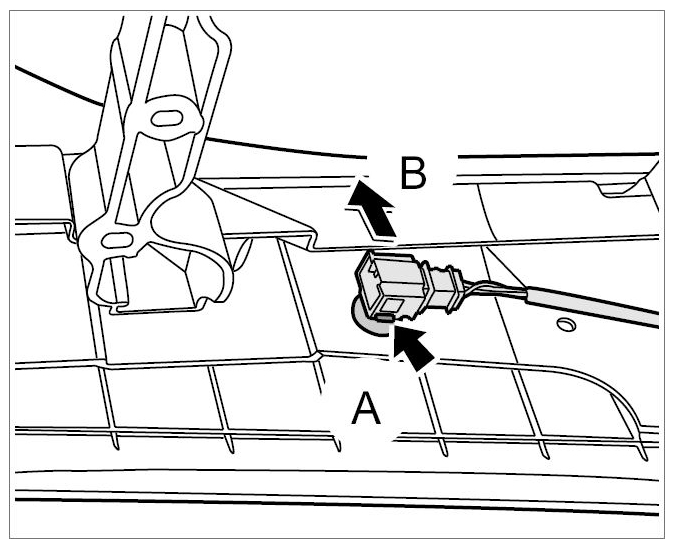

    Fig 9: Releasing Socket For Main Wire Harness
    G09416245Courtesy of PORSCHE CARS NORTH AMERICA, INC.
