Installing Wire Harness For Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

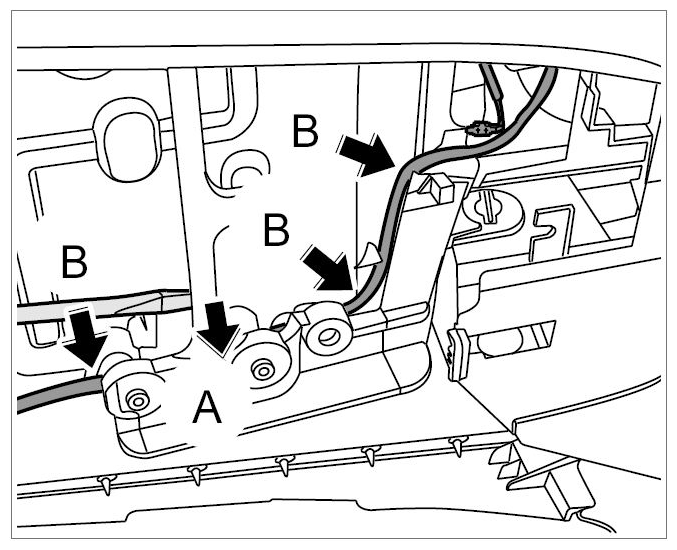

Carefully press the frame down using a screwdriver -Arrow A- and place the wire harness in installation position -Arrows B- .

Fig 1: Installing Wire Harness For Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

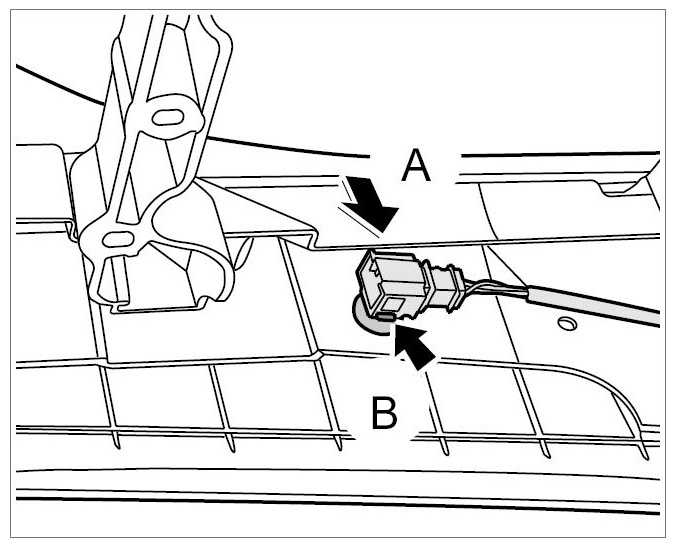

Push connector onto the clip -Arrow A- until locking lug -B- is felt to engage.

Fig 2: Securing Socket For Main Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

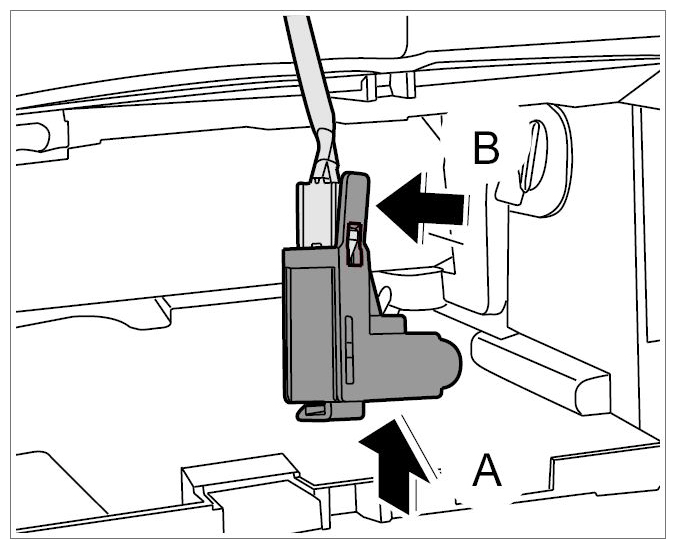

Push contact switch onto the connector -Arrow A- until the locking lug -B- is felt to engage.

Fig 3: Inserting Contact Switch For Centre Console Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

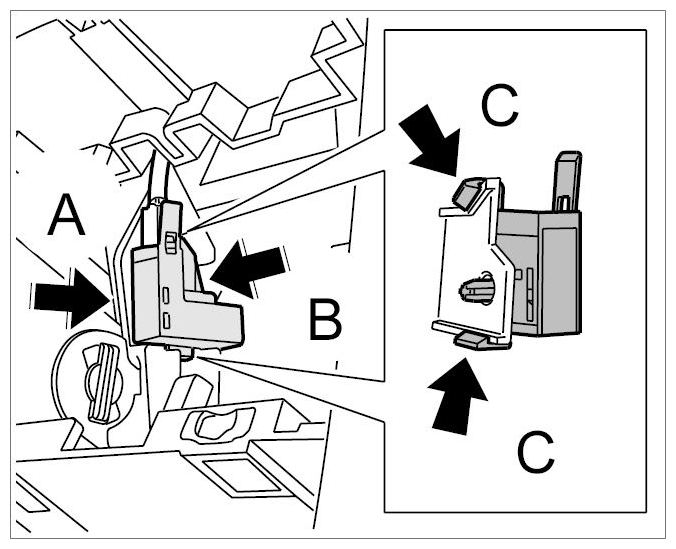

Press the contact switch against the oddments tray in the centre console -Arrow A- and clip it in -Arrow B- until the locking lugs -C- are felt to engage.

Fig 4: Installing Contact Switch For Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install light in oddments tray.

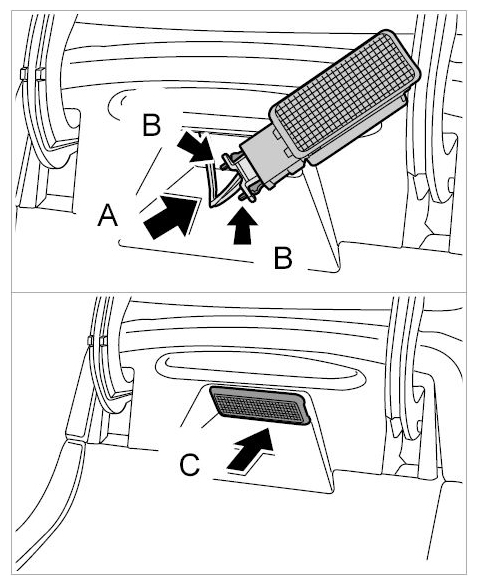

1. 5.1. Push the connector onto the light -Arrow A- until locking lugs -B- are felt to engage.

  Fig 5: Installing Light In Oddments Tray
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Clip in the light in the oddments tray -Arrow C- .

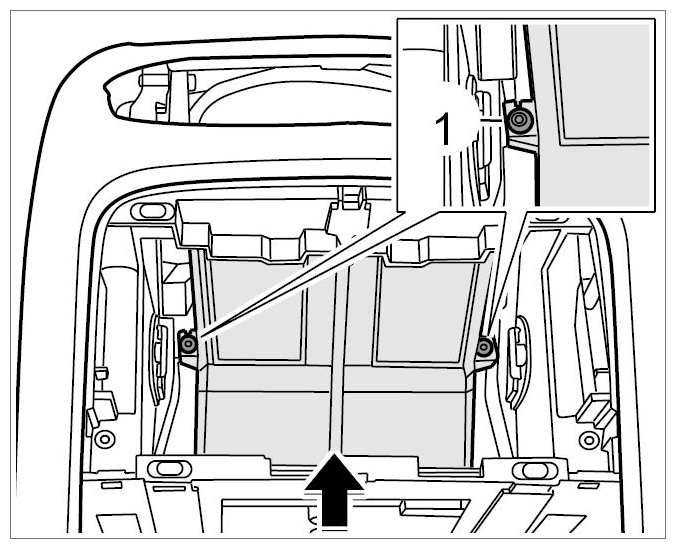

Insert the air duct from below -Arrow- and secure with fastening screws -1- .

Fig 6: Installing Air Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

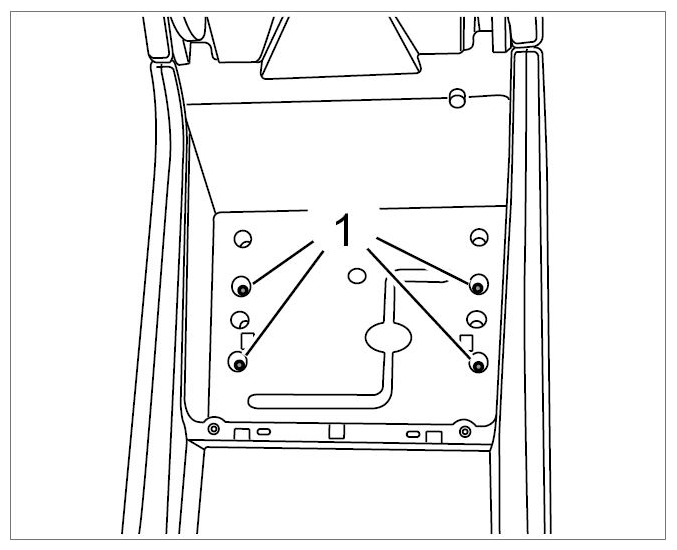

Secure the oddments tray with fastening screws -1- .

Fig 7: Loosening And Securing Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install centre console vent. → Installing Vent
