Installing Front Wiring Harness: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

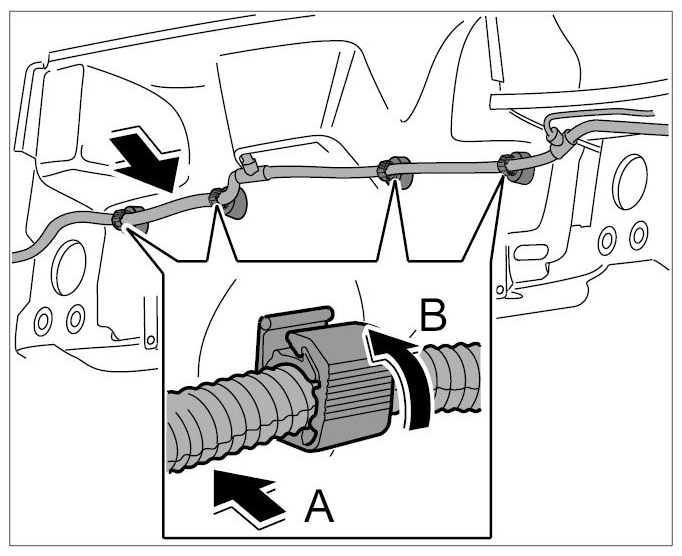

Run the wiring harness through the four retaining clips -arrow A- and close the clips -arrow B- .

Fig 1: Securing Wiring Harness To Lock Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip wiring harness to the lock support -arrows A- .

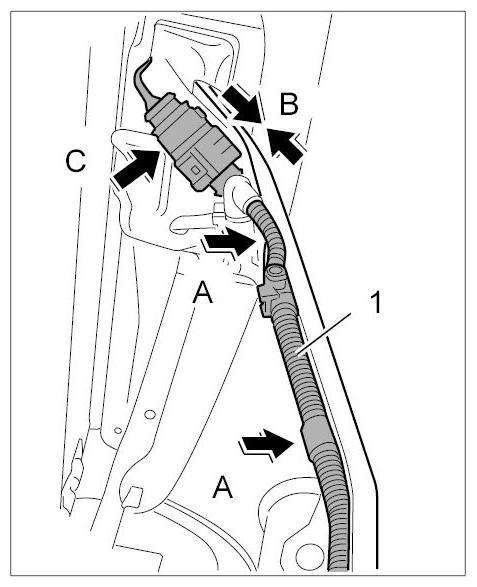

Fig 2: Locking Plug For Lid Lock And Secure Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the plug connection for the lid lock together -arrows B- until it is felt to engage. Clip lid lock plug connection to the lock support -arrow C- .
Press the front wiring harness -1- into the retaining clamp and the lock support -arrows A und B- and clip it into the retaining clips -arrow C- .

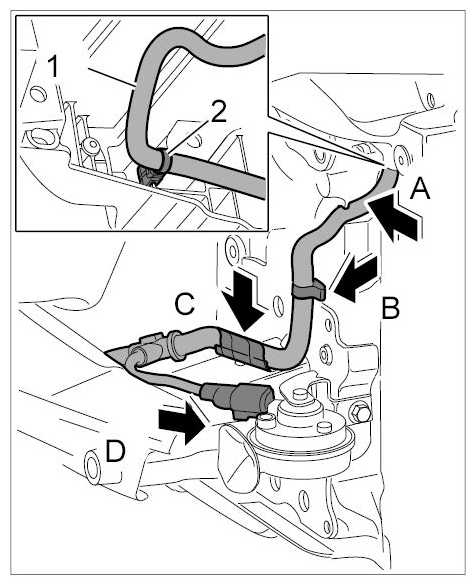

Fig 3: Locking Connectors For Horn And Partial Fastening Of Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the front wiring harness -1- to the lock support with a new cable tie -2- .
Plug in the left and right connectors for the horn -arrow D- until they are felt to engage.
