Locking Outside Temperature Sensor Connector

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

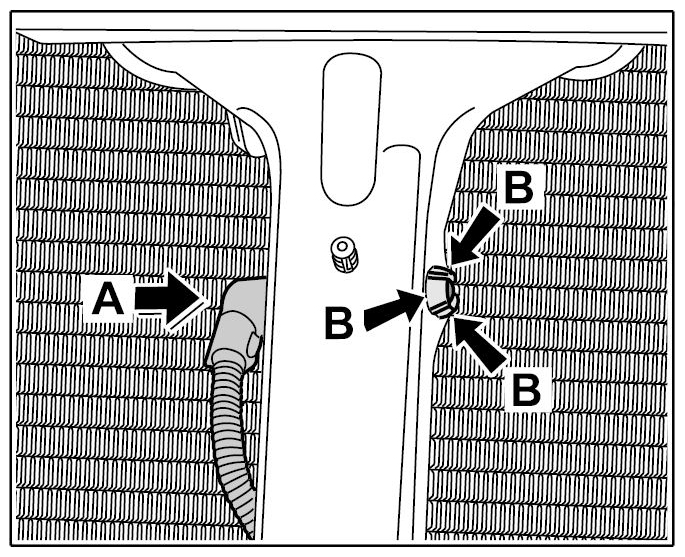

Plug in the outside temperature sensor connector -arrow A- until the locking tab -B- is felt to engage.

Fig 1: Locking Outside Temperature Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

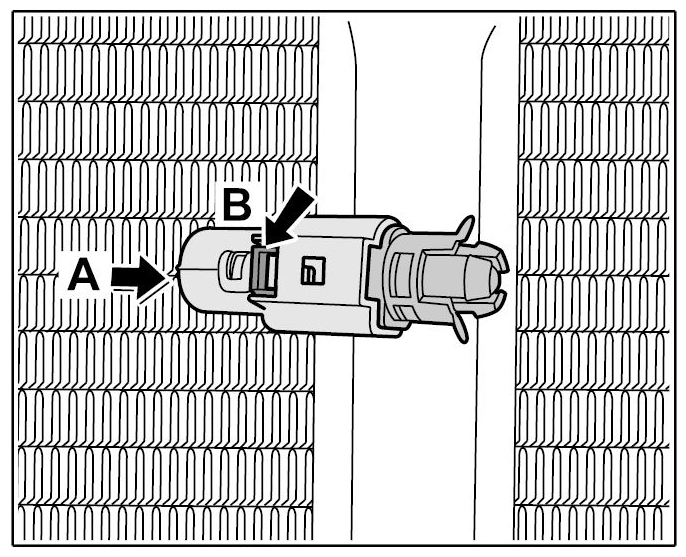

Push the outside temperature sensor into the lock support -arrow A- until the locking tabs -B- are felt to engage.

Fig 2: Clipping In Outside Temperature Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
