Installing Front Wire Harness

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

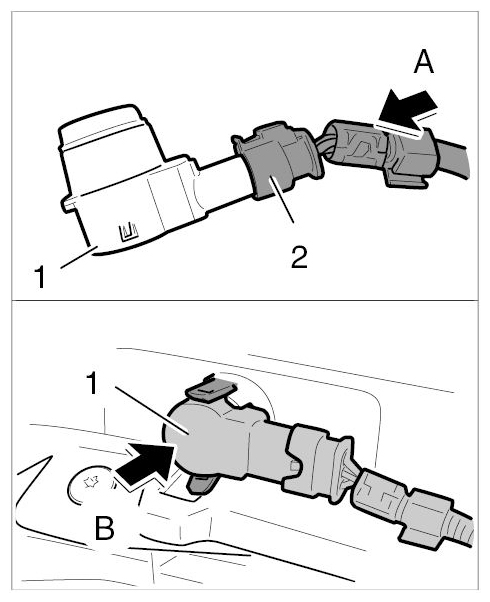

Plug in connector on sensor for ParkAssist.
1. 1.1. Plug in connector -2- on sensor for ParkAssist -1- (-arrow A- ) until the connector -2- engages securely.
2. 1.2. Press sensor for ParkAssist -1- into the mounting -arrow B- until the clips engage securely.

  Fig 1: Plugging In Connector On Sensor For Parkassist
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

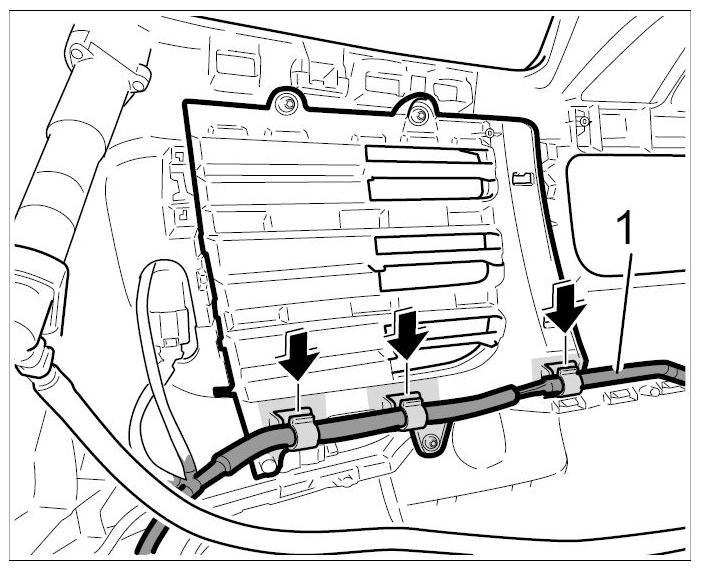

Clip front wire harness -1- in at the holders -arrows- .

Fig 2: Clipping In Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

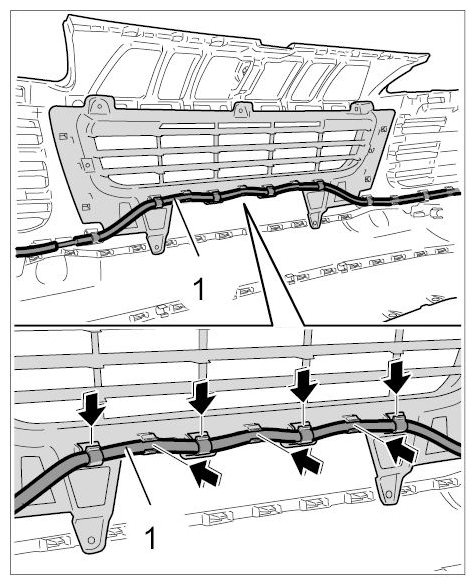

Insert front wire harness -1- into the air grille holders at the left and right -arrows- .

Fig 3: Inserting Front Wire Harness Into Air Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

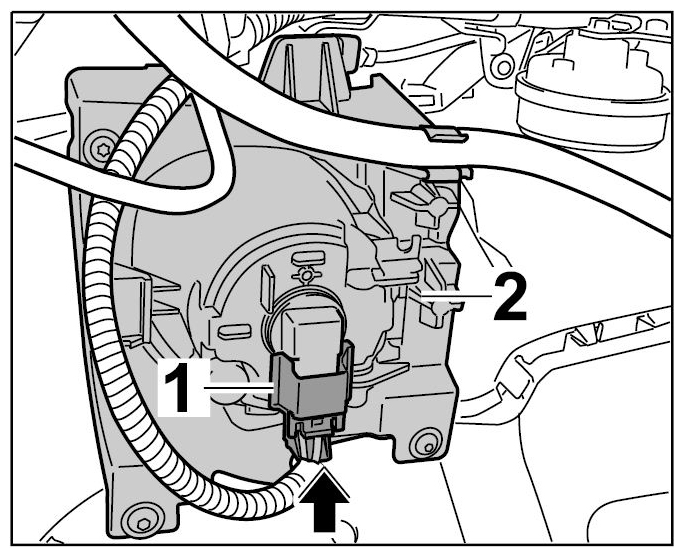

Push connector -1- onto the fog light -2- at the left and right -arrow- until the connector engages securely.

Fig 4: Pushing Connector Onto Fog Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

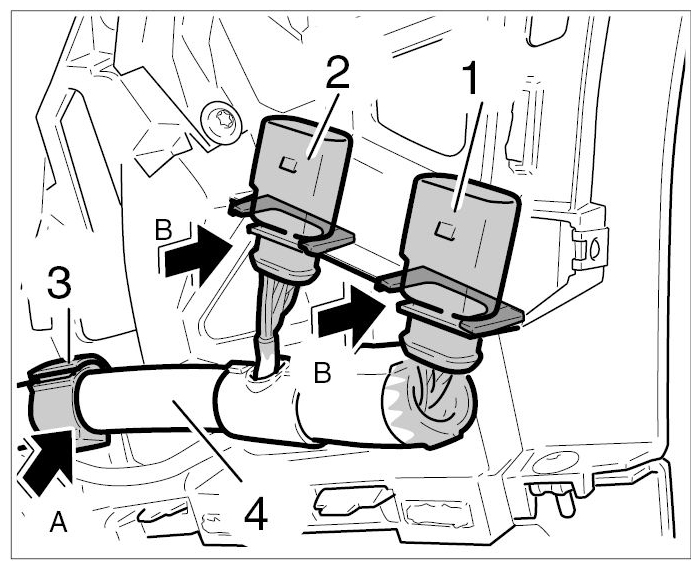

Clip front wire harness into the front apron at the right.
1. 5.1. Clip front wire harness -4- and line bracket -3- into the front apron -arrow A- .
2. 5.2. Clip plug connections -1 and 2- into the front apron -arrows B- .

  Fig 5: Clipping Front Wire Harness Into Front Apron At Right
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
